Overview
The ULXD6 Wireless Boundary Microphone Transmitter combined with ULX-D or QLX-D receivers deliver uncompromising digital audio clarity and solid RF performance in a form factor that fits perfectly in business settings.
Features

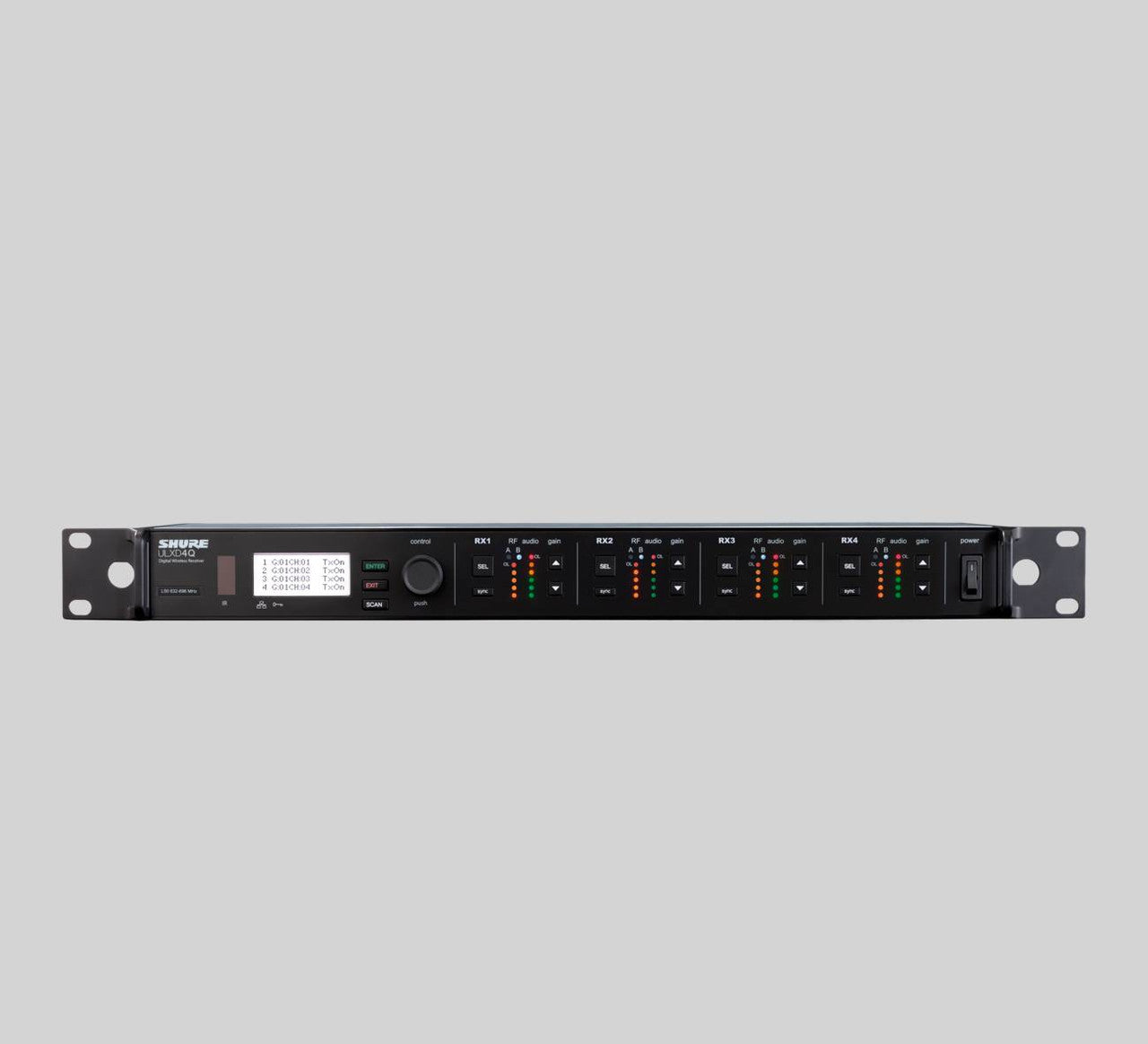

- Four receivers in a rugged 1RU metal chassis with internal power supply
- Up to 72 MHz tuning range (region dependent)
- Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
- Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications

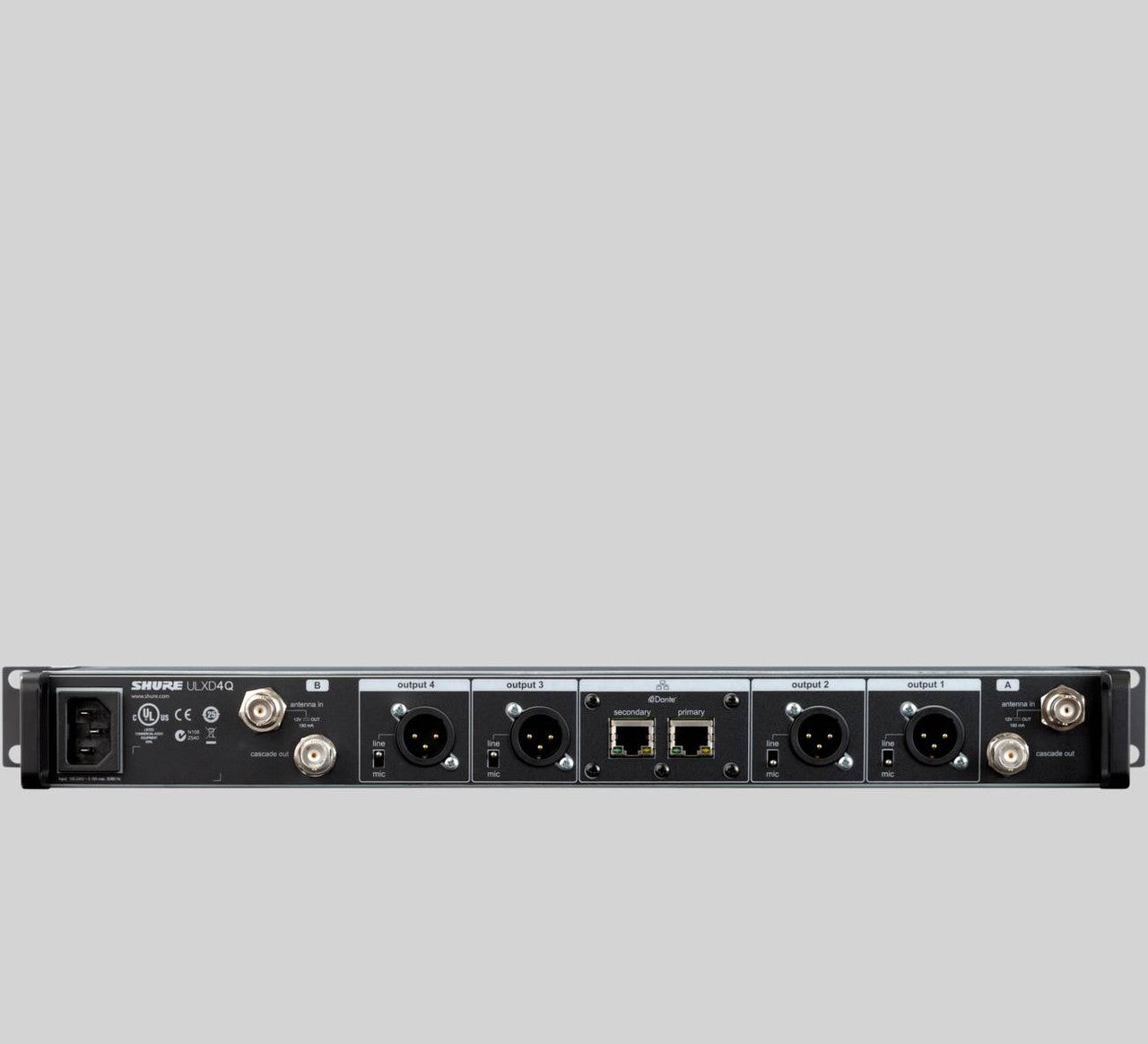

- Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
- Audio summing routes two or more audio channels to combinations of XLR receiver outputs, controlled via channel gain adjustment
- Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control; support for Dante™ digital networked audio
- Compatible with AMX and Crestron control systems
- Interference detection and alerts
- Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
- Removable half wave antennas
- 24 bit / 48 kHz digital audio
- 20 Hz – 20 kHz frequency range with flat response
- Greater than 120 dB dynamic range
- Up to 22 active transmitters in one 8 MHz TV channel; High Density mode enables up to 63 active transmitters in one 8 MHz channel
- AES-256 bit encryption equipped for secure wireless transmission
Specifications
| Weight | 3450g |
| Height x Width x Depth | 44.0 × 482.0 × 274.0mm |
| Transmission | Digital in VHF, UHF, 900MHz ISM, 1.2 GHz, 1.5 GHz, 1.8 GHz |
| Type of Power Supply | Internal |
| Receiver Housings | Metal |
| Active Antenna Possible | Yes |
| Bias via BNC | Yes |
| Encryption | 256 Bit AES |
| Frequency Diversity | True |
| High Density Mode | Yes |
| Interference Detection | Yes |
| Remote Control | Yes |
| Number of compatible systems per frequency band | Up to 67 |
| DANTE-Enabled Products | Yes |
| Scan Features | Channel Scan, Group Scan, Spectrum Scan |
| Sync Features | IR Sync |
| Detachable Antennas | Yes |
| Network ability | DHCP, link-local, static |
| Software control | Yes, Shure Software |
| Logic | No |
| Cascade | Yes |
| Rack Hardware | Integrated, Not needed |
| Receiver Displays | Multi-function LCD |
| Receiver type | Quad |
| Included antenna | External 1/2 wave |
| Battery Status | Leveled battery life indication, HH:MM (Hours and minutes) |
| Line Mic Switch | Yes |
| Image Rejection | 70dB, typical |
| Phantom Power Protection | Yes |
| Spurious Rejection | 80dB, typical |
| Antenna Input Impedance | 50Ω |
