RCF HDL28A
  • RCF HDL28A
  • RCF HDL28A
  • RCF HDL28A
  • RCF HDL28A
  • RCF HDL28A
  • RCF HDL28A
  • RCF HDL28A
  • RCF HDL28A
RCF HDL28A

RCF HDL28A

MSRP: $6,009.00
MAP: $0.00

Active 2200W Dual 8" Compact 2-Way Line Array

SKU: RCF-HDL28A

Only Approved Dealers can purchase.
Please Sign In.

or Become A Dealer to gain access today.

Overview

The RCF HDL 28-A is a compact bi-amped 2-way active touring system for a wide range of applications, both indoors and outdoors, with an emphasis on vocal intelligibility. It features two 8-inch woofers and an impressive 3-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. Following the HDL 30-A philosophy, the HDL 28-A shares the composite material cabinet, the zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. The RCF HDL28-A features state of the art RCF transducers with lightweight neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 36-AS is the ideal flyable bass complement for the HDL 28-A array system.

Features
  • 2200W Two Way Amplifier
  • 135 dB Max SPL
  • 48 kHz, 32 bit DSP processing
  • RDNet Networked Management

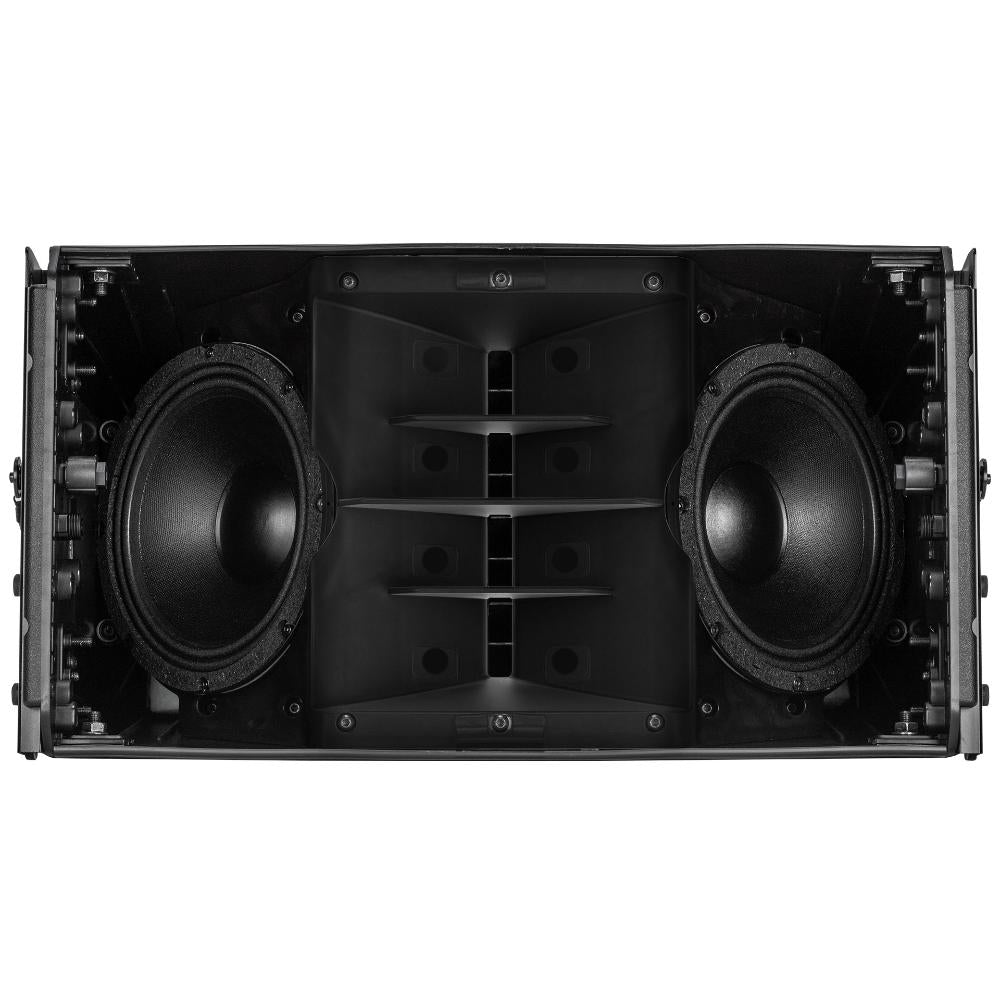

  • 2 x 8” Neodymium Woofers, 2.5” voice coil
  • 1.4” Titanium Compression Driver, 3.0” voice coil
  • Exclusive FiRPHASE technology on-board
  • 750 Hz Crossover Point

Specifications

ACOUSTICAL
  • Frequency Response: 50 Hz - 20000 Hz
  • Max SPL @ 1m: 135 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 15°
TRANSDUCERS
  • Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
  • Woofer: 2 x 8'' neo, 2.5'' v.c
INPUT/OUTPUT SECTION
  • Input signal: bal/unbal
  • Input connectors: XLR, RDNet Ethercon
  • Output connectors: XLR, RDNet Ethercon
  • Input sensitivity: +4 dBu
PROCESSOR SECTION
  • Crossover Frequencies: 750 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Preset, RDNet bypass
  • RDNet: Onboard
POWER SECTION
  • Total Power: 2200 W Peak, 1100 W RMS
  • High frequencies: 600 W Peak, 300 W RMS
  • Low frequencies: 1600 W Peak, 800 W RMS
  • Cooling: Forced
  • Connections: Powercon IN/OUT
STANDARD COMPLIANCE
  • Safety agency: CE compliant
PHYSICAL
  • Cabinet/Case Material: PP Composite

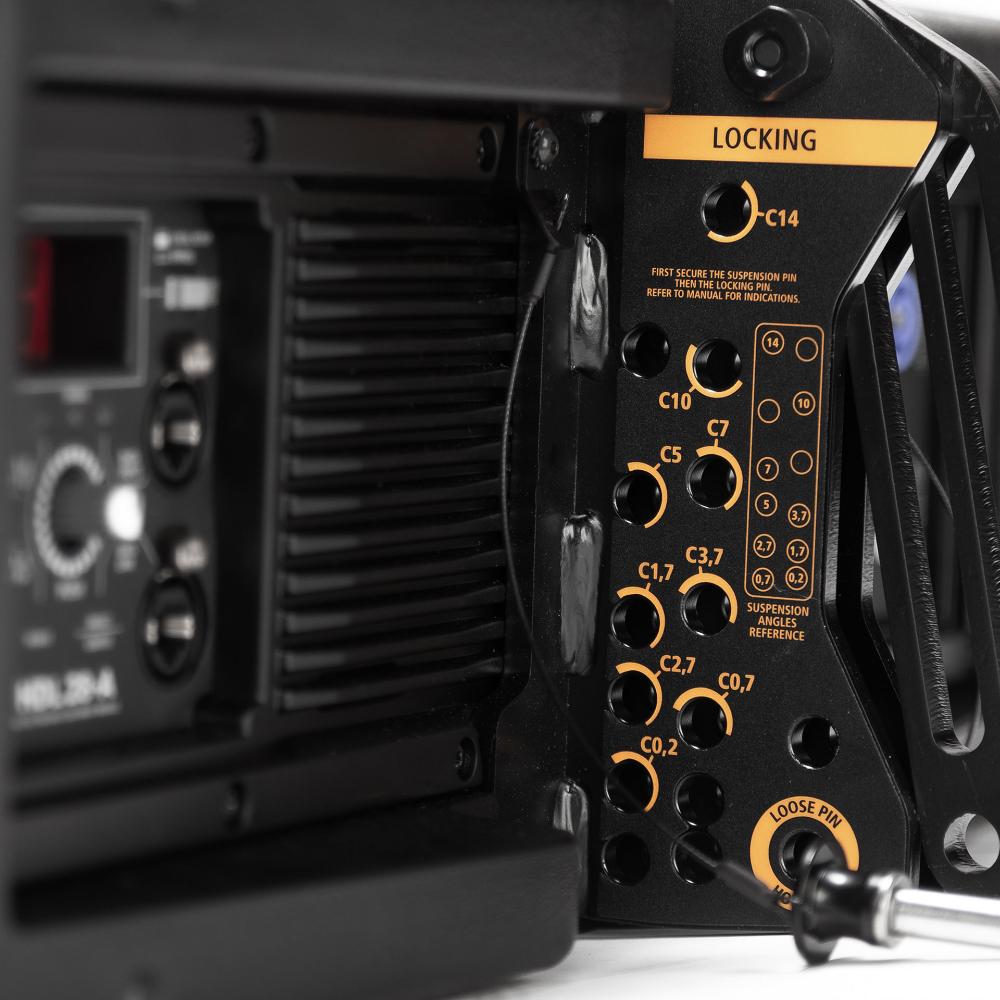

  • Hardware: Array fittings
  • Handles: 2 Side
  • Grille: Steel
  • Color: Black, White
SIZE / WEIGHT
  • Height: 294 mm / 11.57 inches
  • Width: 569 mm / 22.4 inches
  • Depth: 491 mm / 19.33 inches
  • Weight: 20.6 kg / 45.42 lbs
SHIPPING INFORMATION
  • Package Height: 375 mm / 14.76 inches
  • Package Width: 650 mm / 25.59 inches
  • Package Depth: 500 mm / 19.69 inches
  • Package Weight: 23.6 kg / 52.03 lbs
