RCF HDL30A

RCF HDL30A

MSRP: $7,809.00
MAP: $0.00

Active 2200W Dual 10" Compact 2-Way Line Array

SKU: RCF-HDL30A

Only Approved Dealers can purchase.
Please Sign In.

or Become A Dealer to gain access today.

Overview

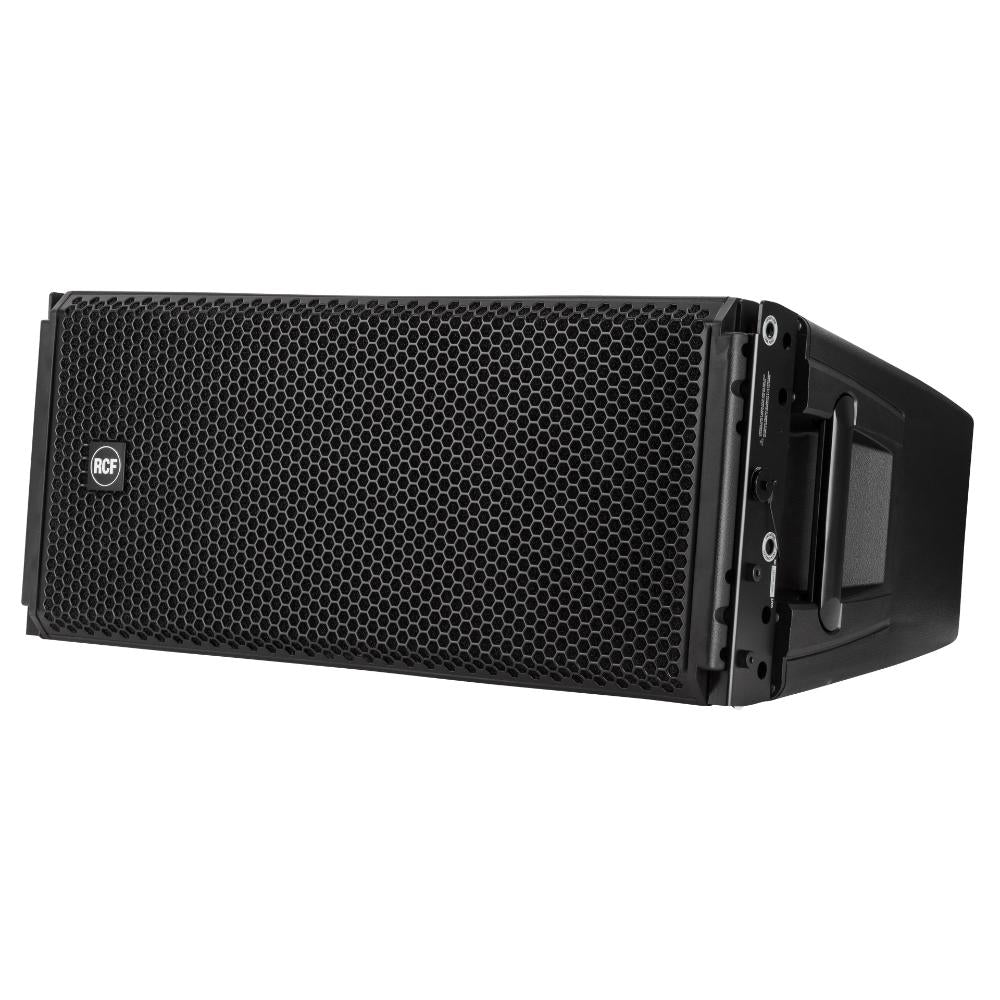

The RCF HDL30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. HDL 30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 137 decibels SPL max. The RCF HDL30 -A features state of the art RCF transducers with neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system

Features
  • 2200W Two Way Amplifier
  • 137 dB Max SPL
  • 48 kHz, 32 bit DSP processing
  • 1.4" Titanium Compression Driver, 4.0" voice coil

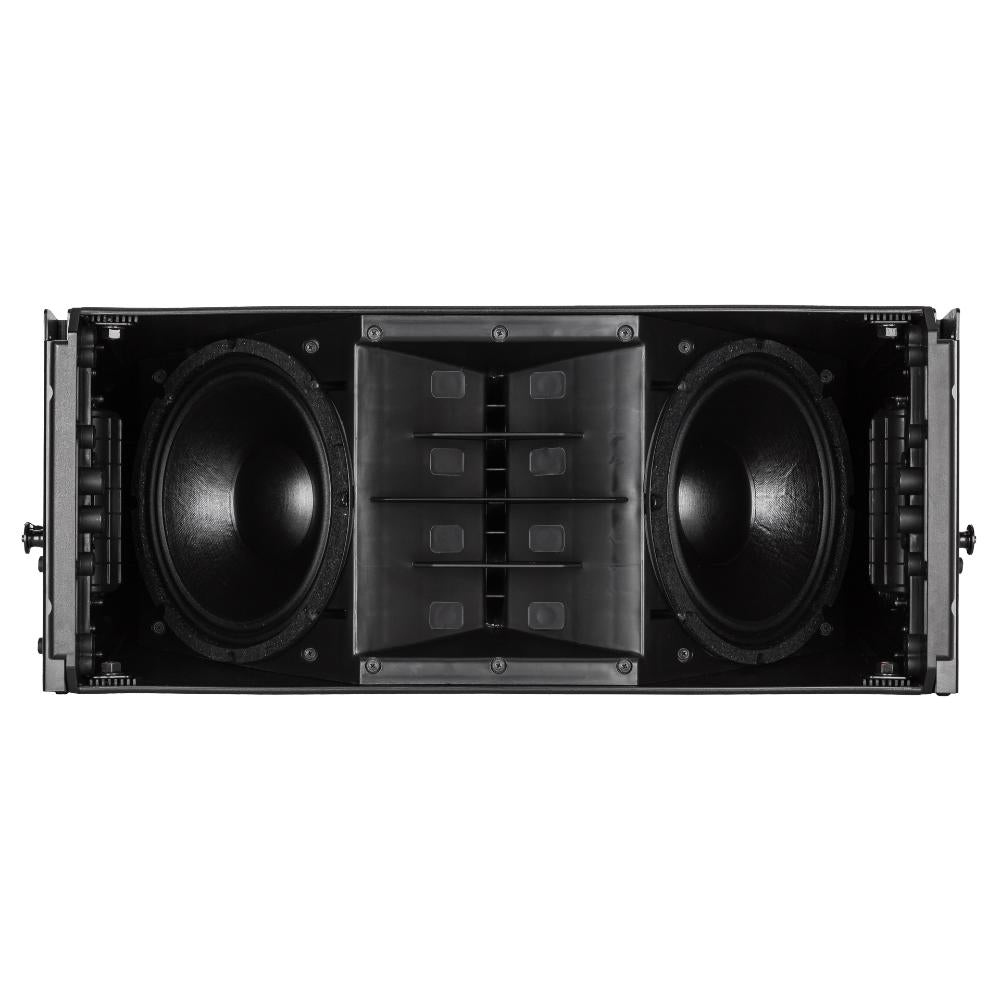

  • 2 x 10" Neodymium Woofers, 2.5" voice coil
  • Exclusive FiRPHASE technology on-board
  • RDNet Control and Management
  • 680 Hz Crossover Point

Specifications

ACOUSTICAL
  • Frequency Response: 50 Hz - 20000 Hz
  • Max SPL @ 1m: 137 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 15°
TRANSDUCERS
  • Compression Driver: 1 x 1.4'' neo, 4.0'' v.c

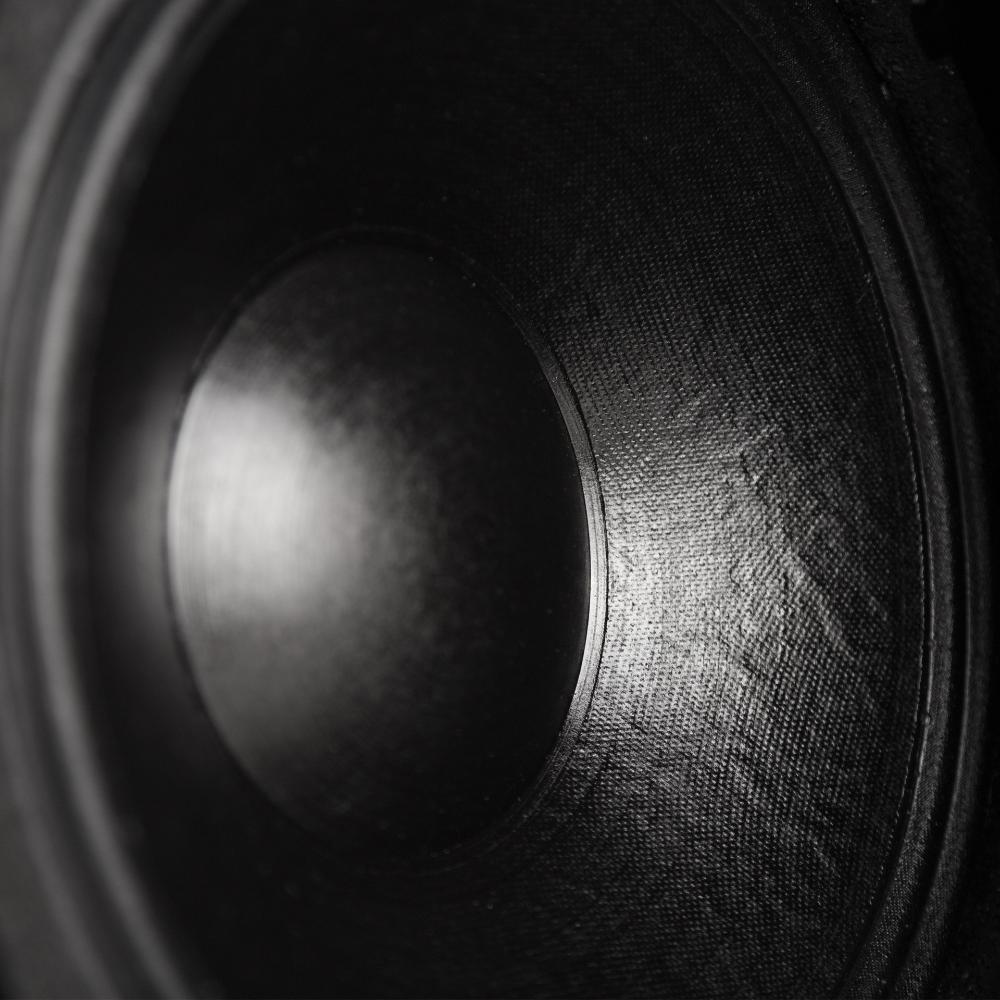

  • Woofer: 2 x 10'' neo, 2.5'' v.c

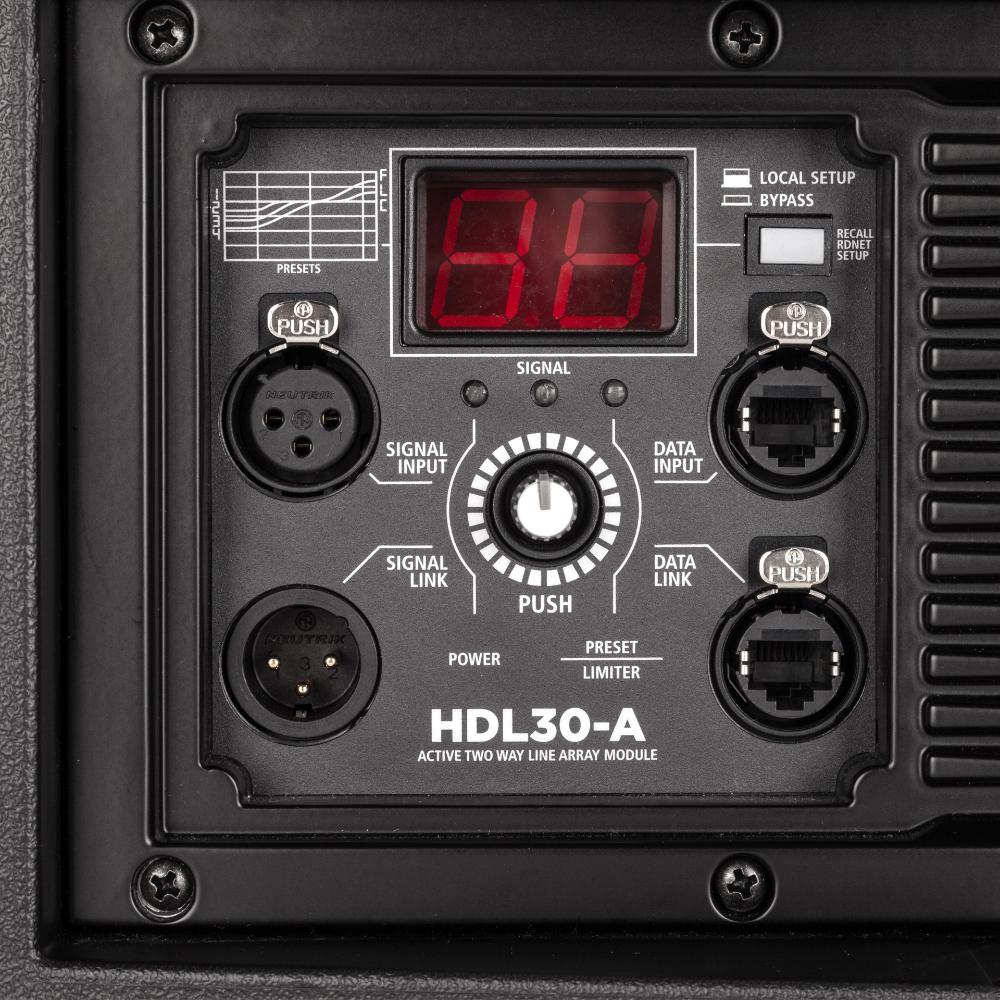

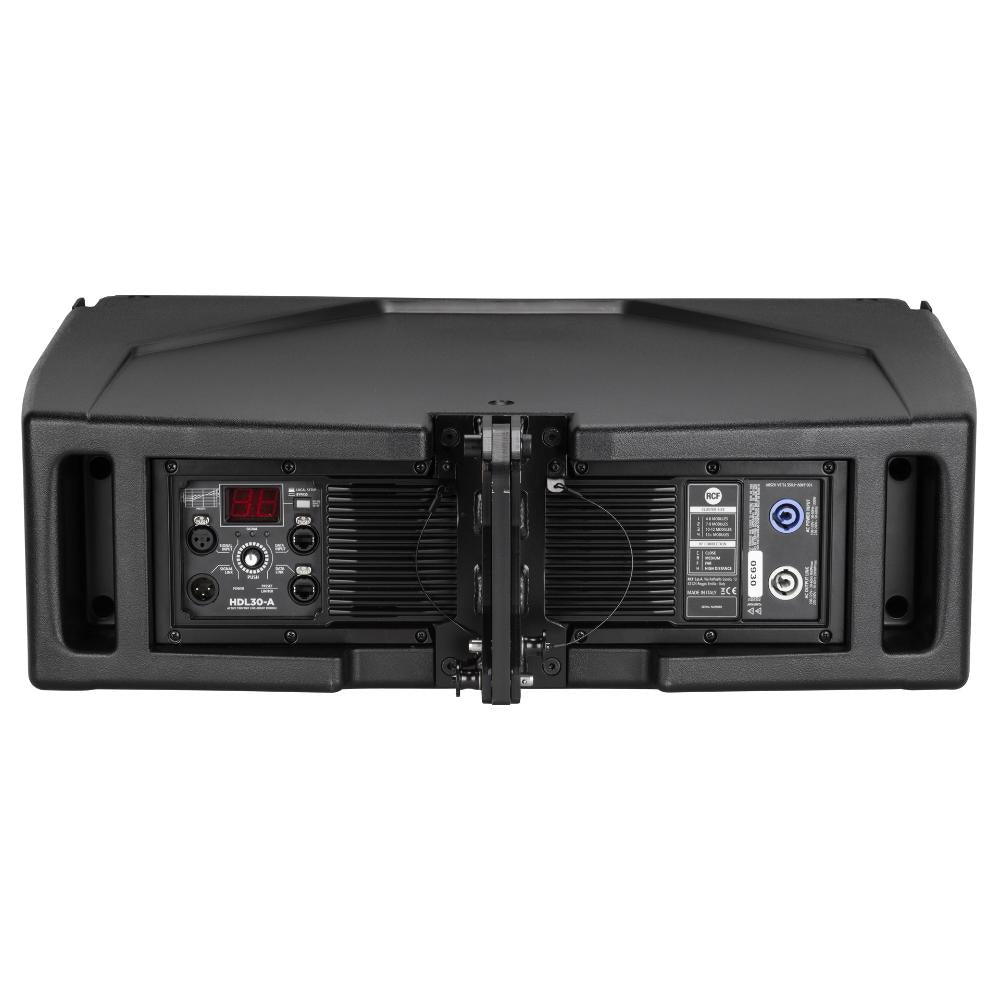

INPUT/OUTPUT SECTION
  • Input signal: bal/unbal
  • Input connectors: XLR, RDNet Ethercon
  • Output connectors: XLR, RDNet Ethercon
  • Input sensitivity: +4 dBu
PROCESSOR SECTION
  • Crossover Frequencies: 680 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Preset, RDNet bypass
  • RDNet: Onboard
POWER SECTION
  • Total Power: 2200 W Peak, 1100 W RMS
  • High frequencies: 600 W Peak, 300 W RMS
  • Low frequencies: 1600 W Peak, 800 W RMS
  • Cooling: Forced

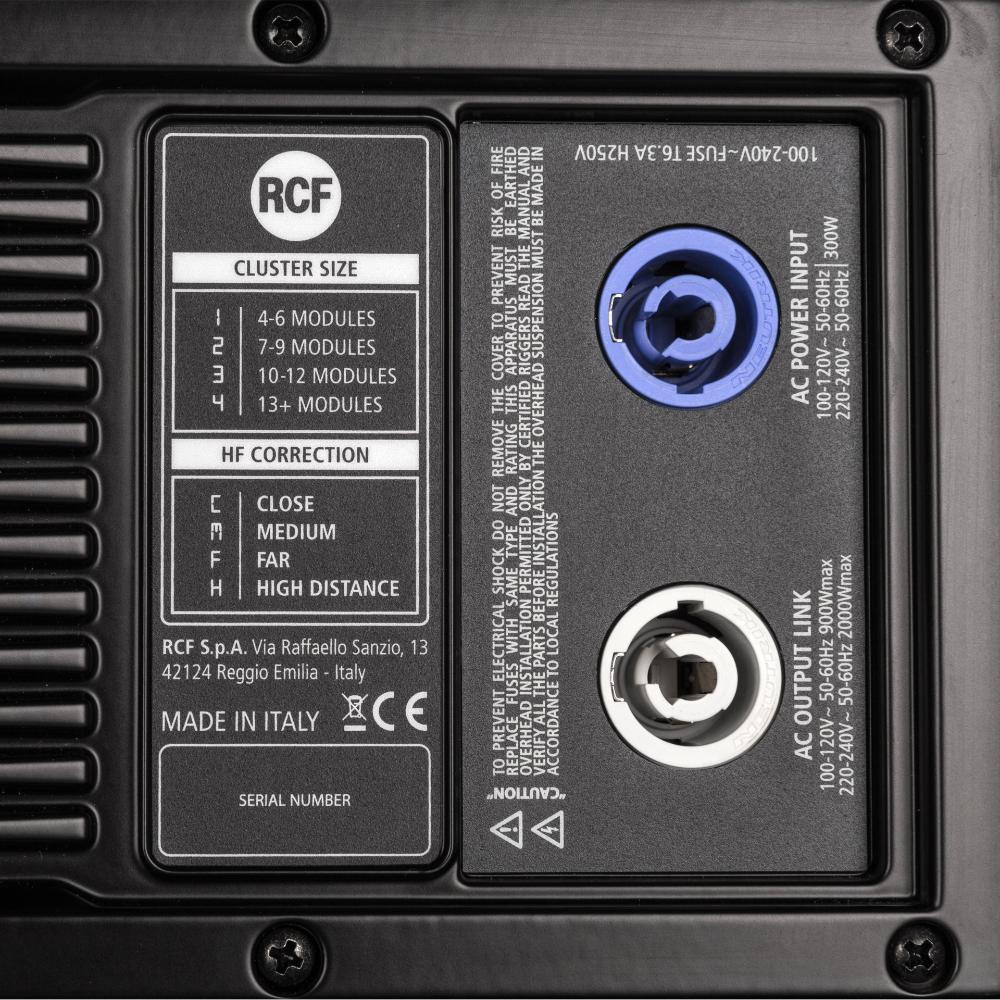

  • Connections: Powercon IN/OUT
STANDARD COMPLIANCE
  • Safety agency: CE compliant
PHYSICAL
  • Cabinet/Case Material: PP Composite

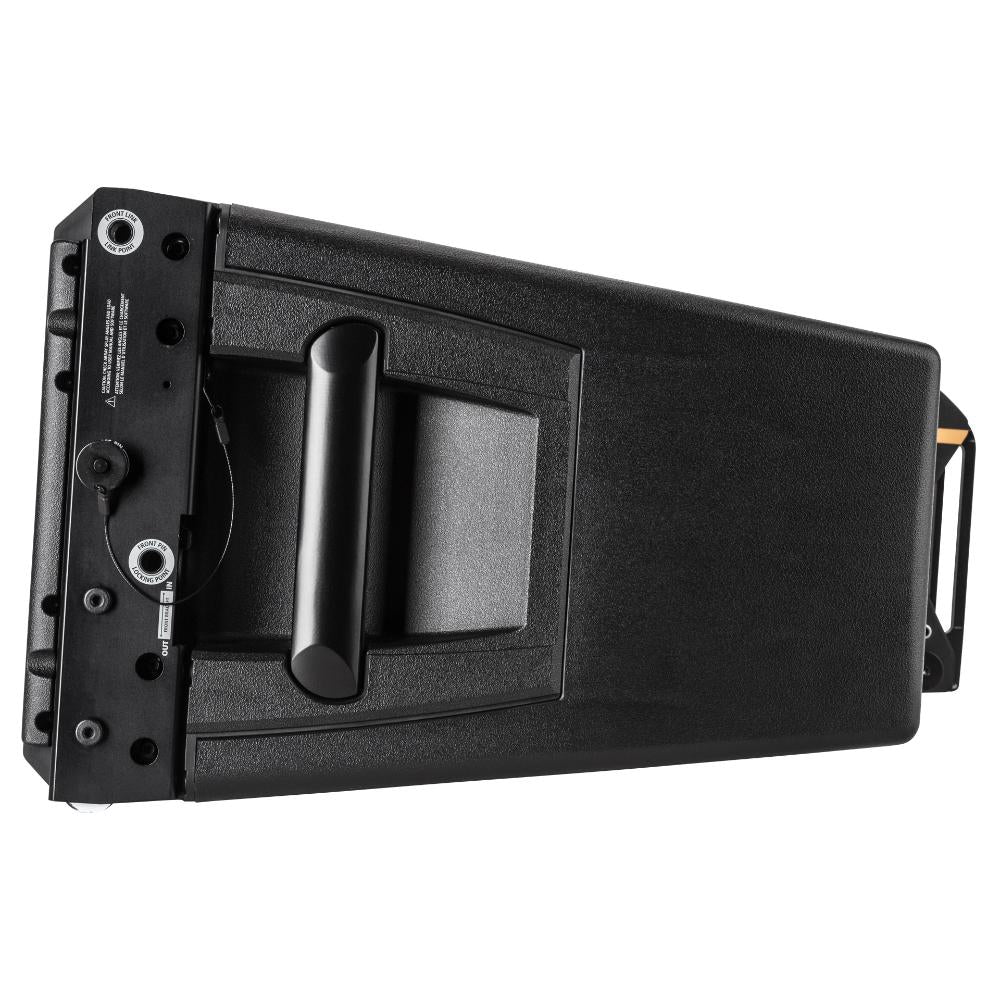

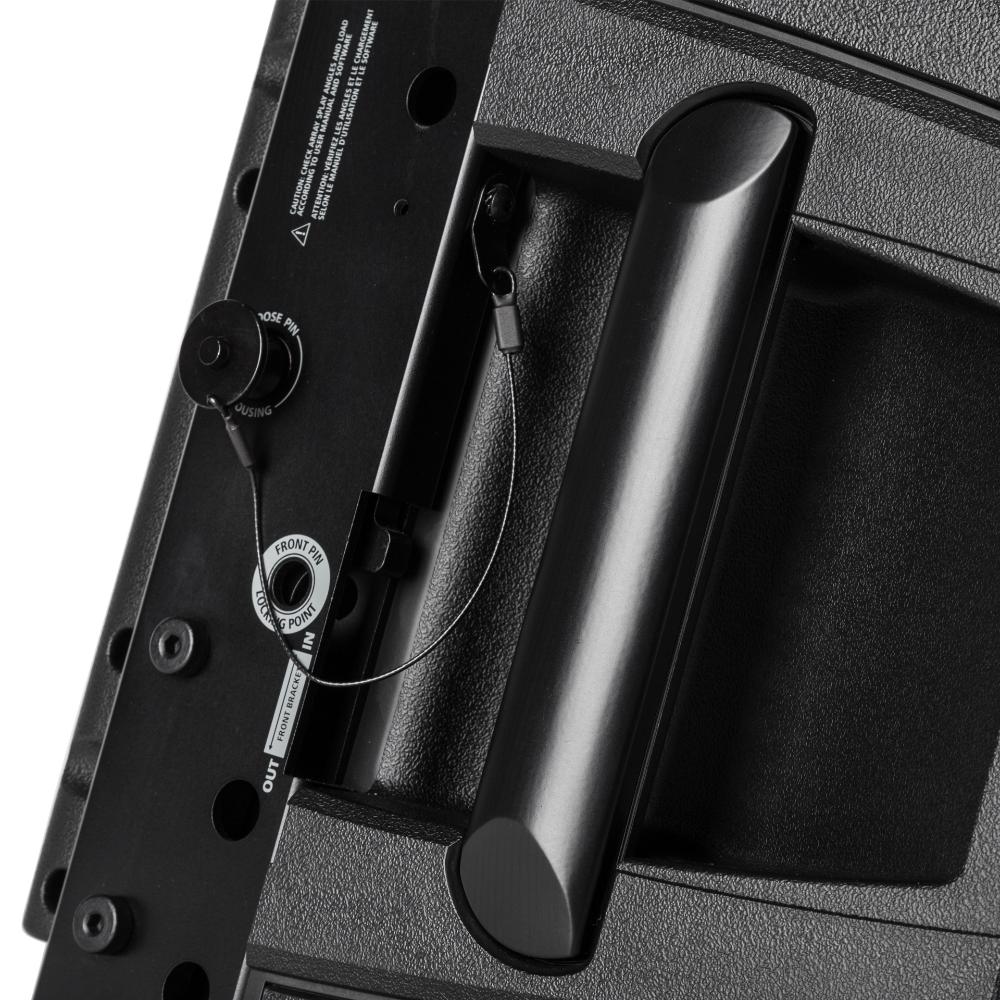

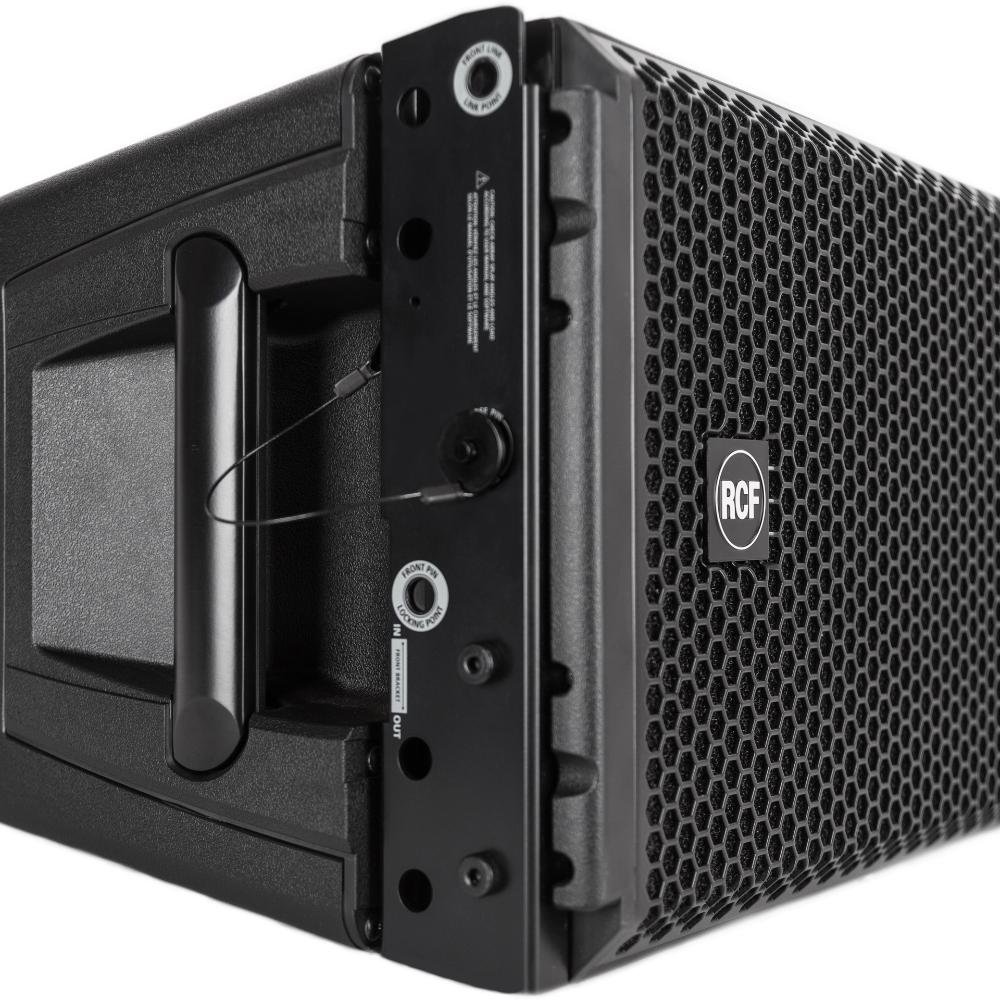

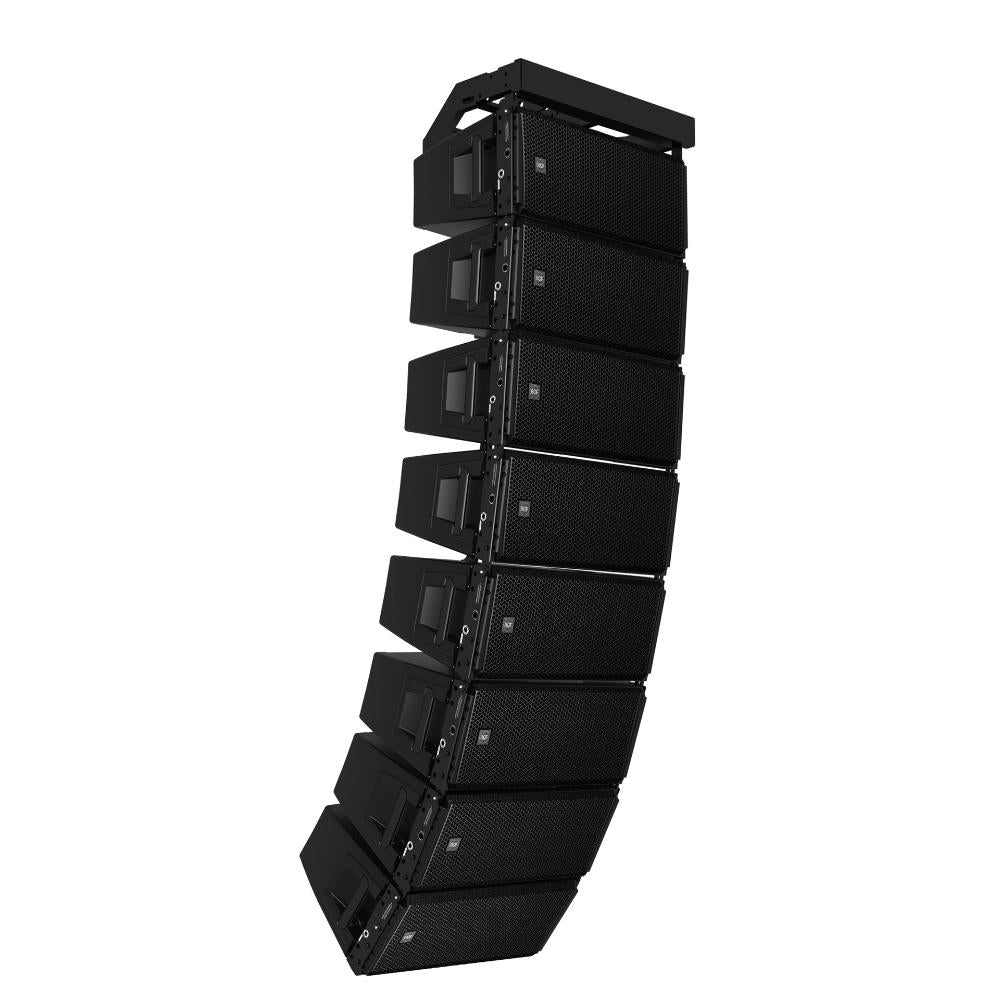

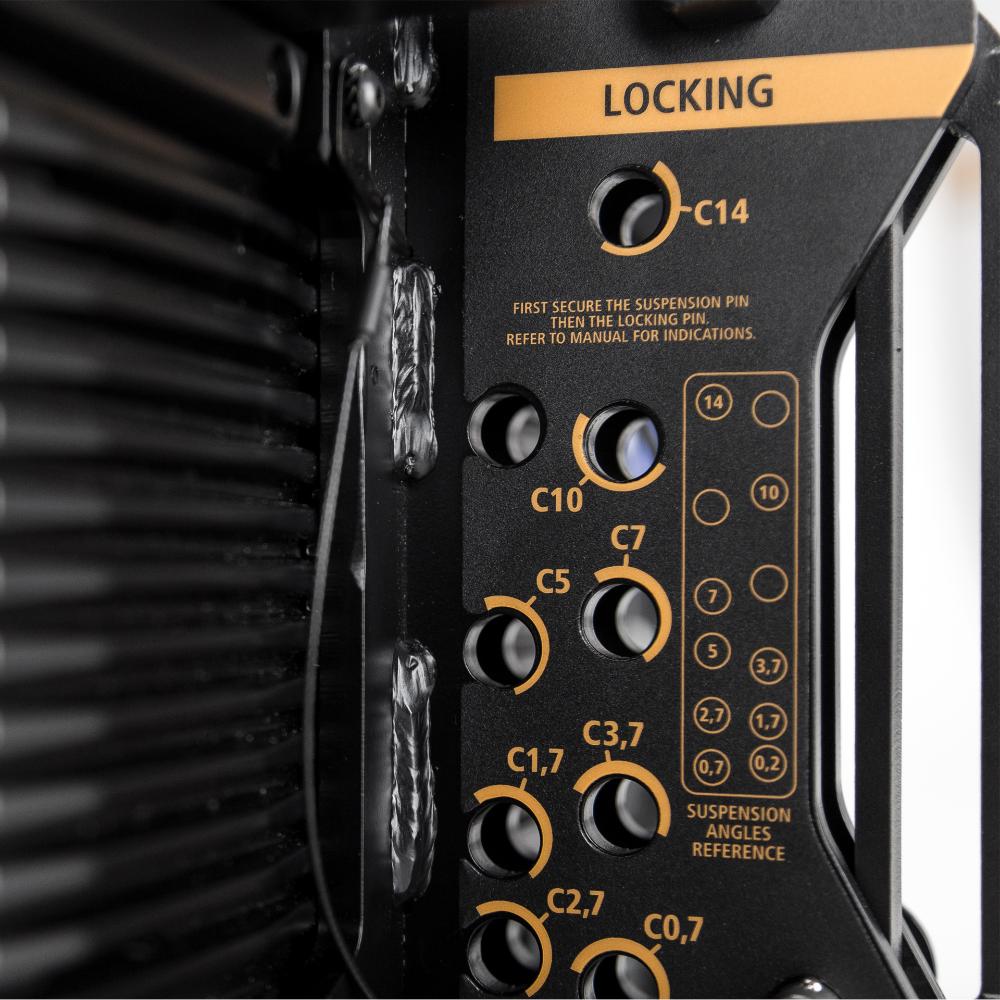

  • Hardware: Array fittings
  • Handles: 2 Side

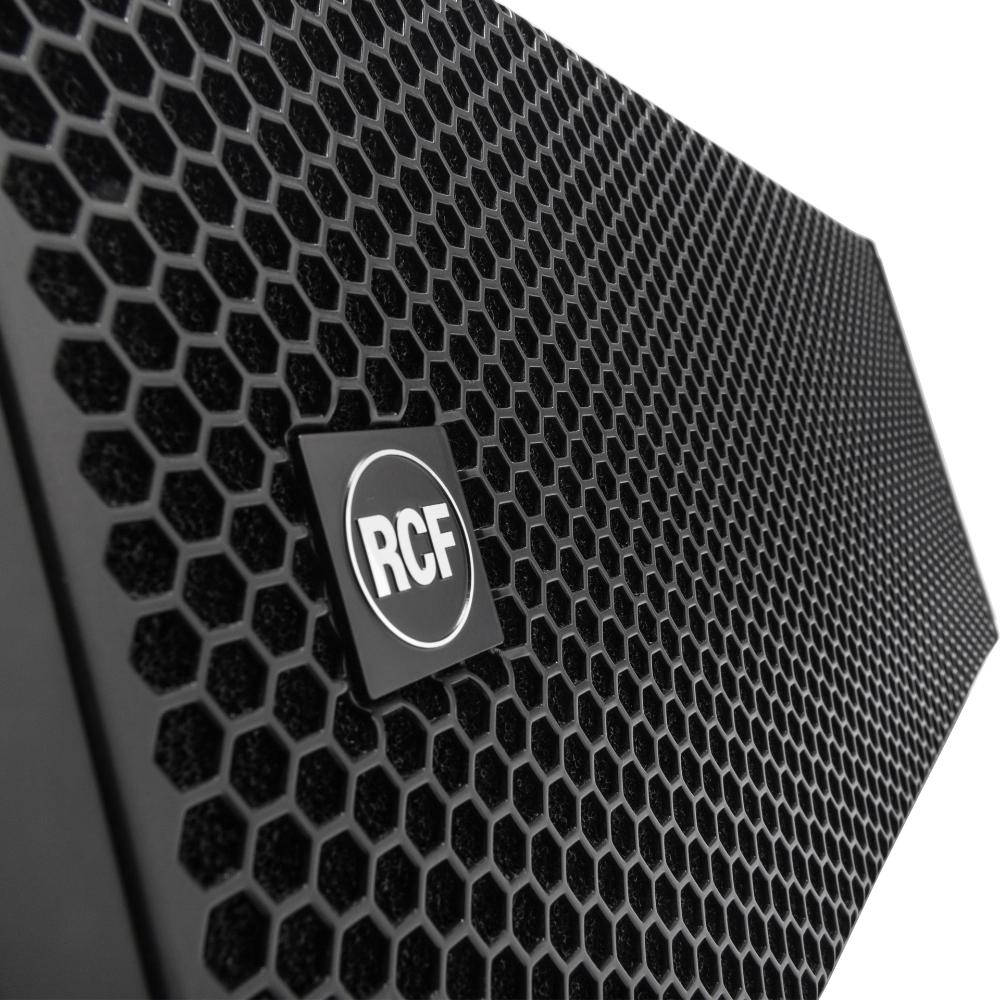

  • Grille: Steel
  • Color: Black
SIZE / WEIGHT
  • Height: 293 mm / 11.54 inches
  • Width: 705 mm / 27.76 inches
  • Depth: 502 mm / 19.76 inches
  • Weight: 25 kg / 55.12 lbs
SHIPPING INFORMATION
  • Package Height: 365 mm / 14.37 inches
  • Package Width: 800 mm / 31.5 inches
  • Package Depth: 550 mm / 21.65 inches
  • Package Weight: 28.2 kg / 62.17 lbs
