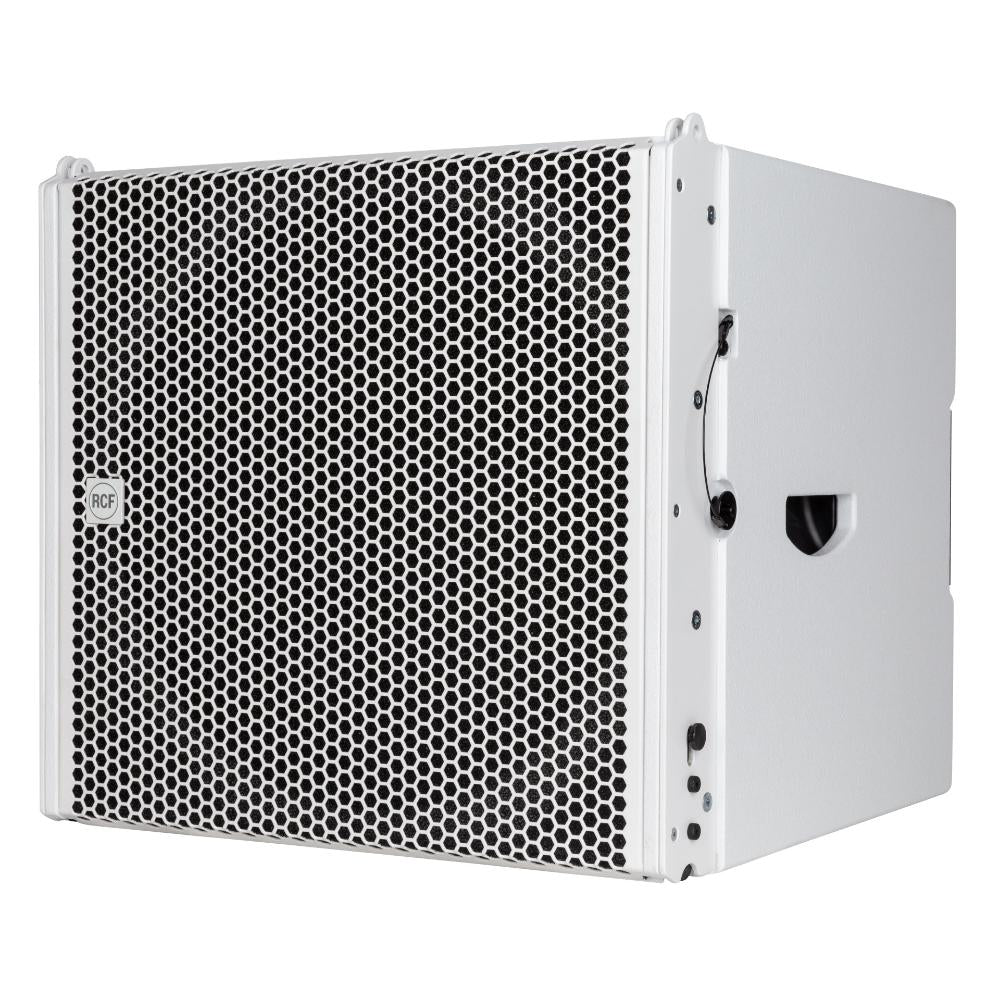

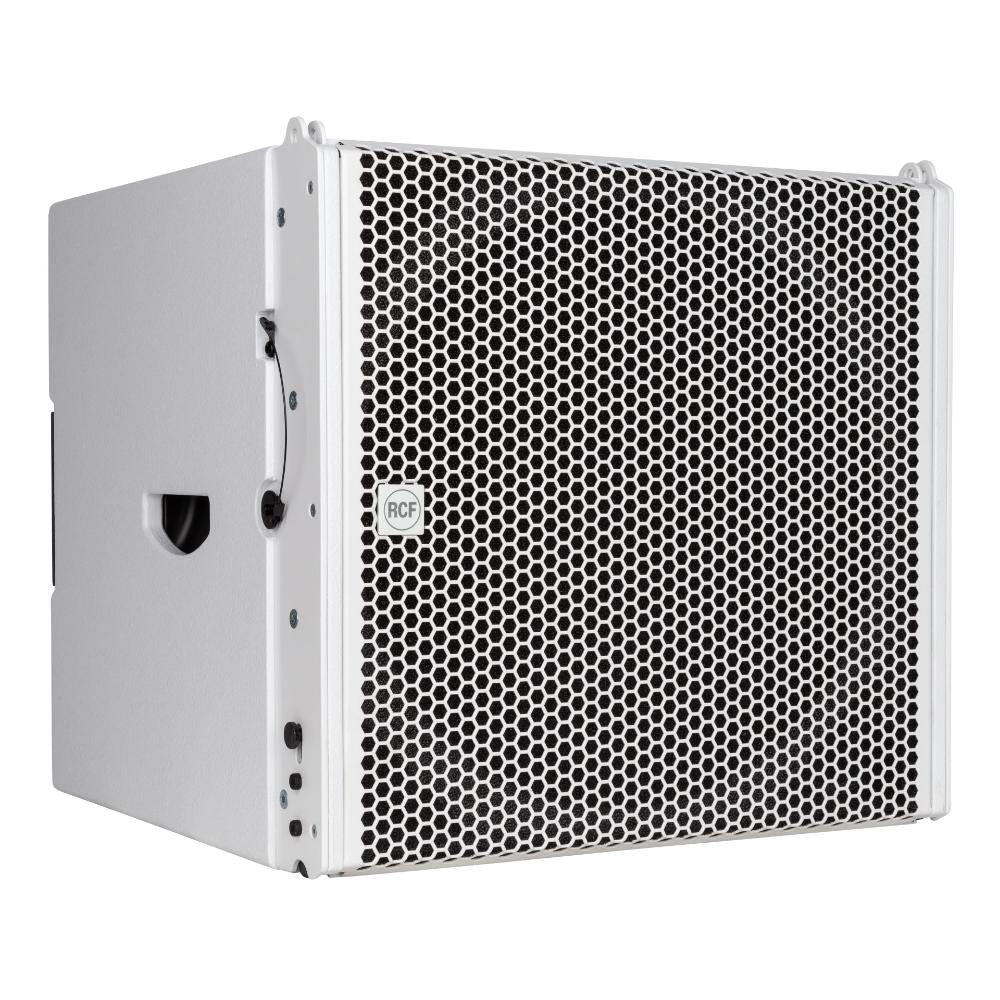

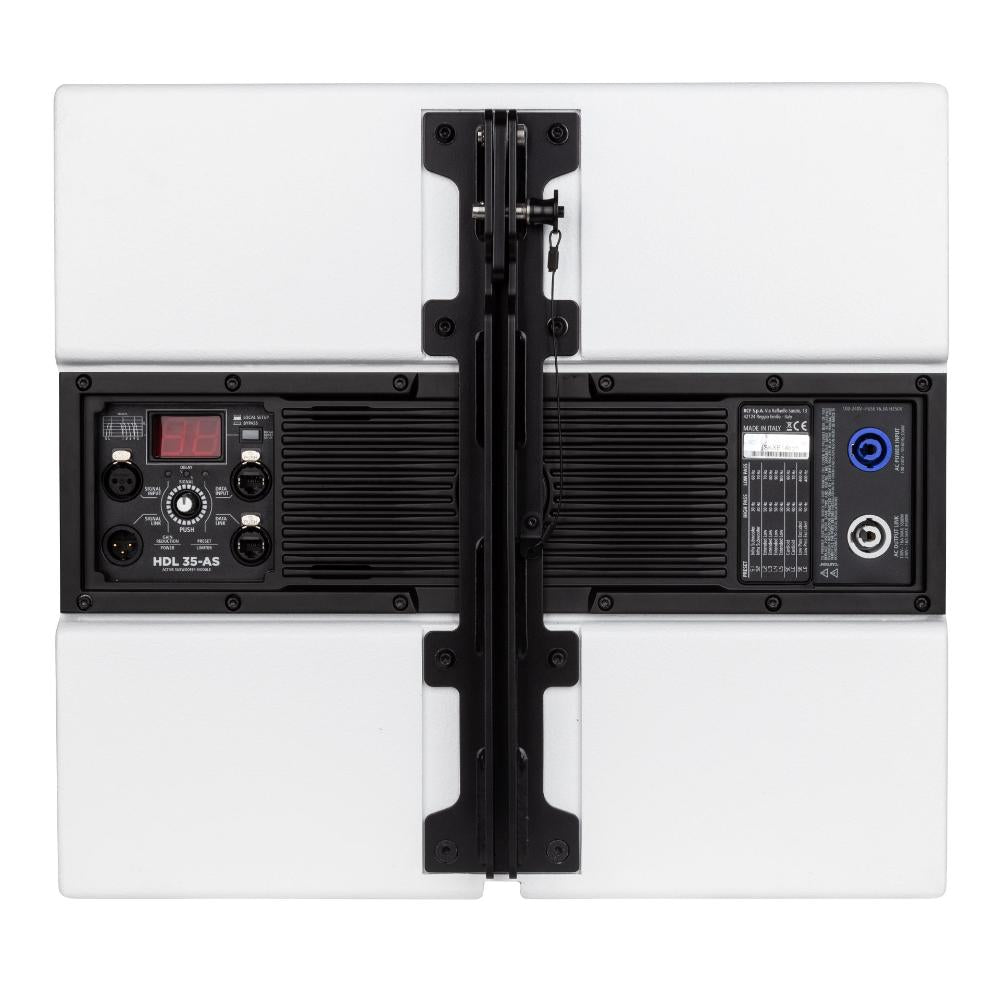

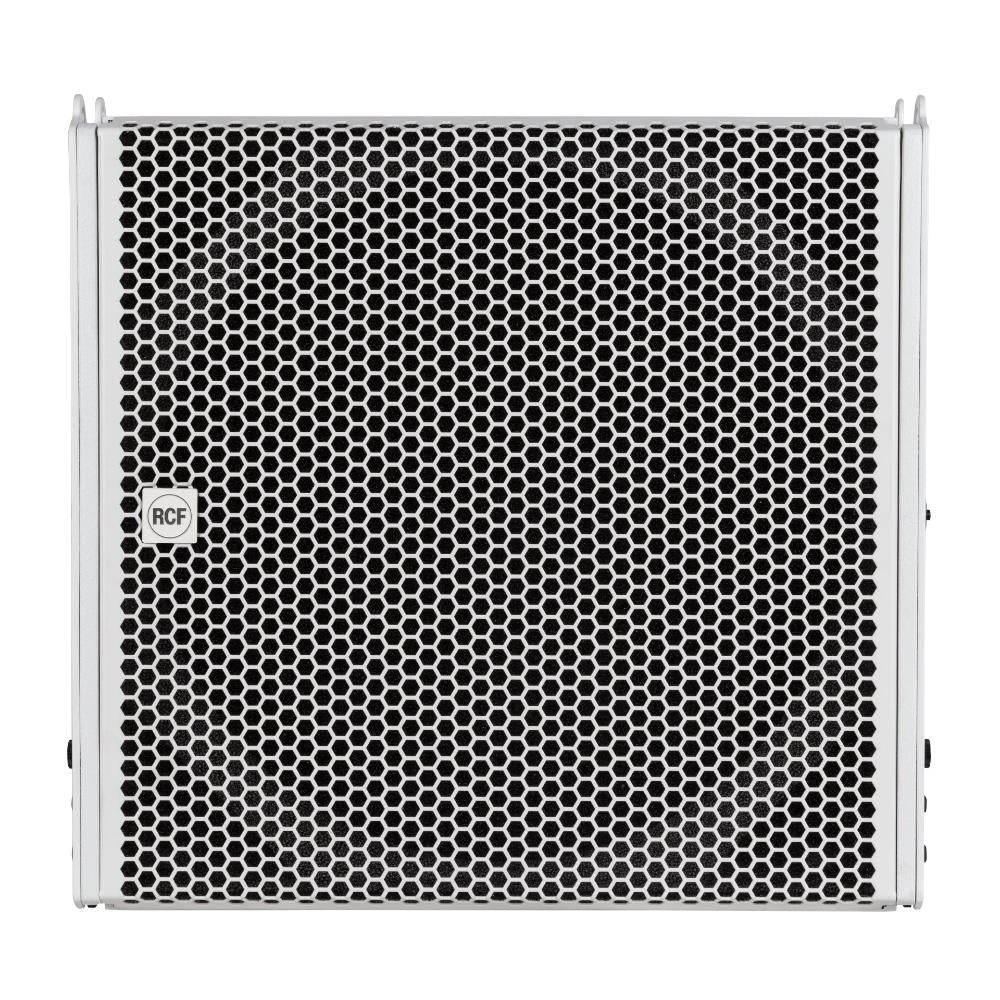

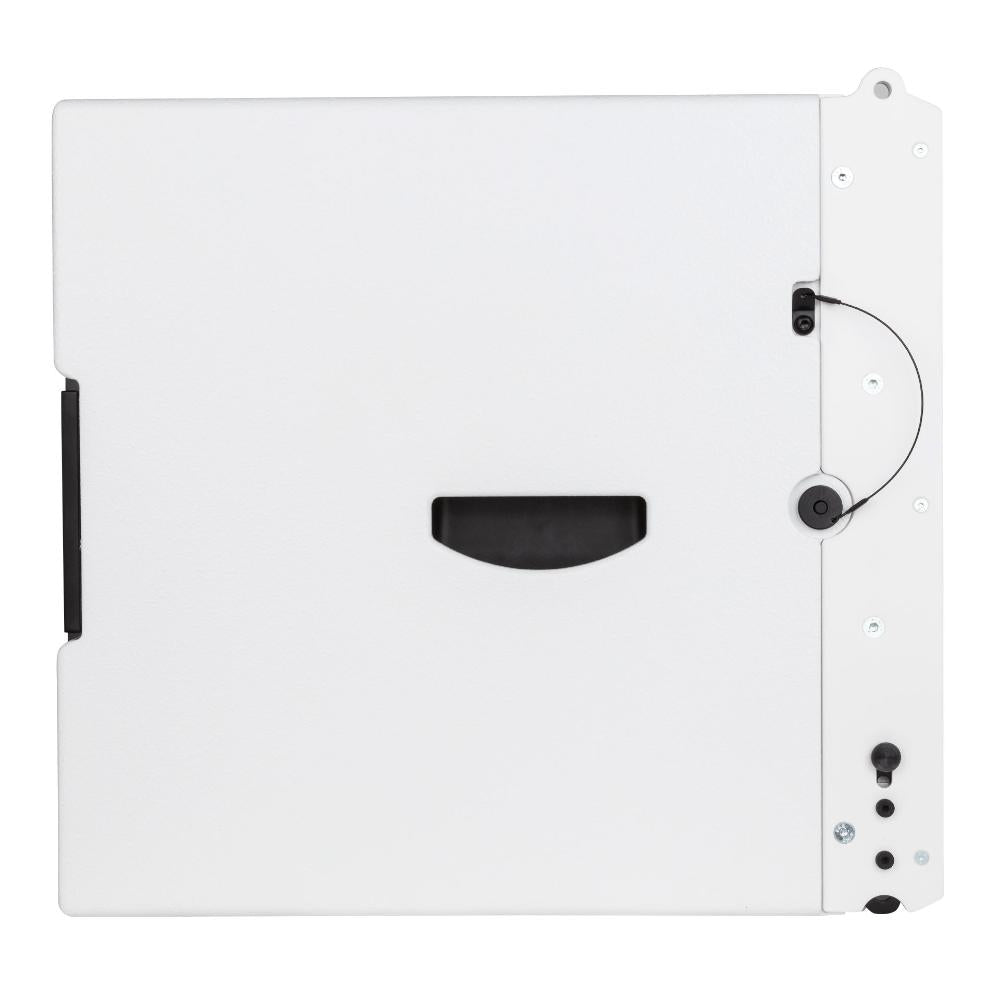

The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system. It features a baltic birch plywood cabinet housing one 4.0” voice coil, 15” Neodymium woofer to handle frequencies from 40 Hz to 140 Hz with the maximum linearity and lowest distortion. The 2200 Watts class-D amplifier onboard delivers excellent playback clarity and up to 134 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 35-AS is part of the professional HDL System.
Features- 134 dB Max SPL
- 2200W Class-D Amplifier
- 40-140 Hz frequency response
- RDNet Networked Management
- 1x15” Neodymium Woofer, 4.0” voice coil
Specifications
ACOUSTICAL- Frequency Response: 40 Hz - 140 Hz
- Max SPL @ 1m: 134 dB
- Woofer: 1 x 15'' neo, 4.0'' v.c
- Input signal: bal/unbal
- Input connectors: XLR, RDNet Ethercon
- Output connectors: XLR, RDNet Ethercon
- Input sensitivity: +4 dBu
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Preset selection, RDnet on board
- RDNet: Onboard
- Total Power: 2200 W Peak, 1100 W RMS
- Low frequencies: 2200 W Peak, 1100 W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
- Safety agency: CE compliant
- Cabinet/Case Material: Baltic birch plywood
- Hardware: Array fittings 1 X M20
- Handles: 2 Side
- Pole mount/Cap: M20 thread
- Grille: Steel
- Color: Black, White
- Height: 444 mm / 17.48 inches
- Width: 456 mm / 17.95 inches
- Depth: 508 mm / 20 inches
- Weight: 30 kg / 66.14 lbs
- Package Height: 530 mm / 20.87 inches
- Package Width: 560 mm / 22.05 inches
- Package Depth: 525 mm / 20.67 inches
- Package Weight: 35 kg / 77.16 lbs
