Overview

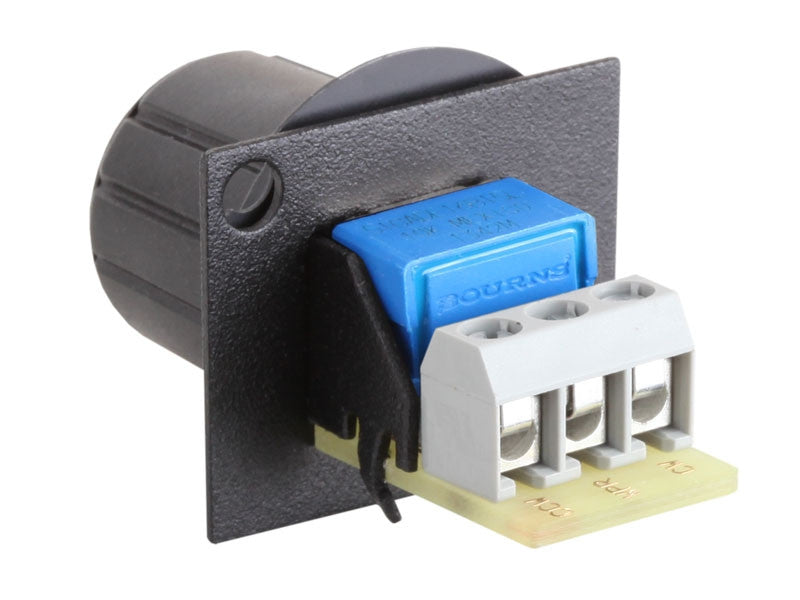

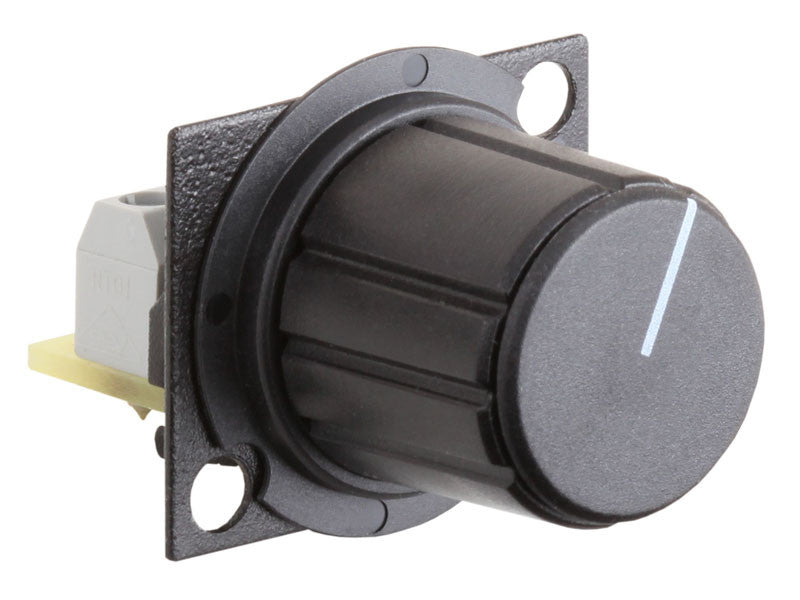

The AMS-10K is a user remote control that provides linear adjustment of VCA control voltage for setting audio level. It is designed to directly interface with the 0 to 10 V 3-wire control input of the VCA. A single shielded pair is normally used. The AMS-10K contains a long-life 10 k? potentiometer for adjusting the control voltage. A high quality terminal block is provided for external connections. The AMS-10K mounts in AMS mounting frames and in standard D-style cutouts. The front plate and bracket are constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.
Features

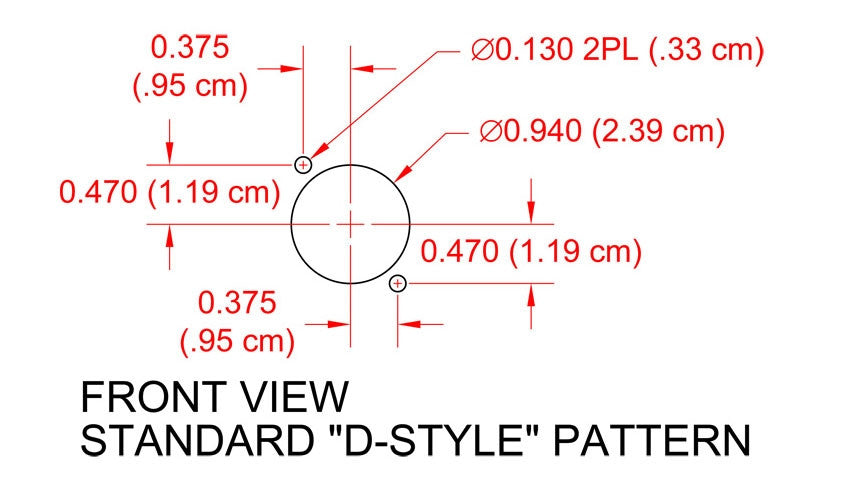

- Mounts in D-Style Standard Cutouts
- Mounts in all RDL AMS Mounting Frames

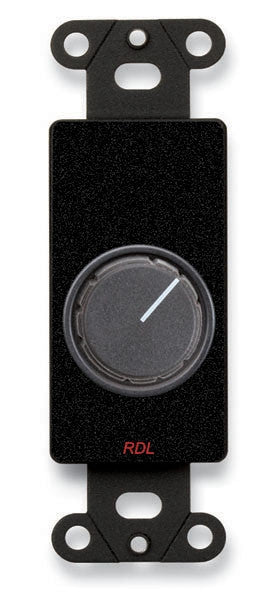

- Mounts in RDL Decora-Style Wall Plates
- Availability of a Wide Variety of Associated AMS Accessories
- Bezel Provides Professional Aesthetic Appearance
- Provides Flexibility for Connections and Controls
Specifications
| Mounting | AMS mounts; D-Style cutouts |

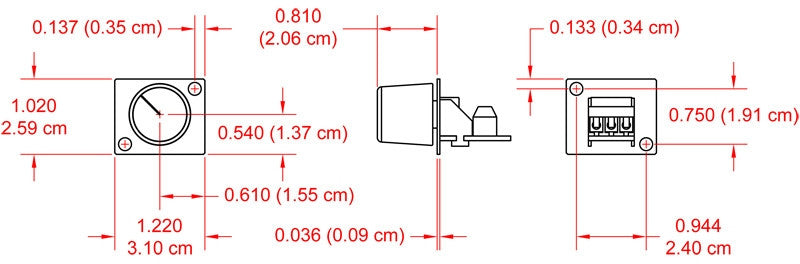

| Depth (behind the panel) | 1.00 in |
| Ambient Operating Environment | 0° C to 70° C |
| Package Type | Bag |
| WEEE Weight | 0.0627 lbs |
| Shipping Weight | 0.08 lbs |
| Tariff code | 8517.62.0050 |
