Overview

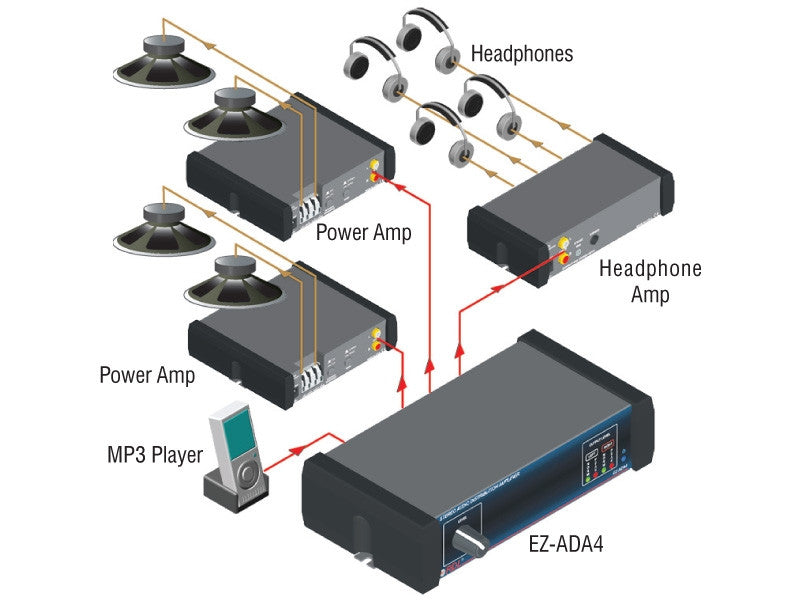

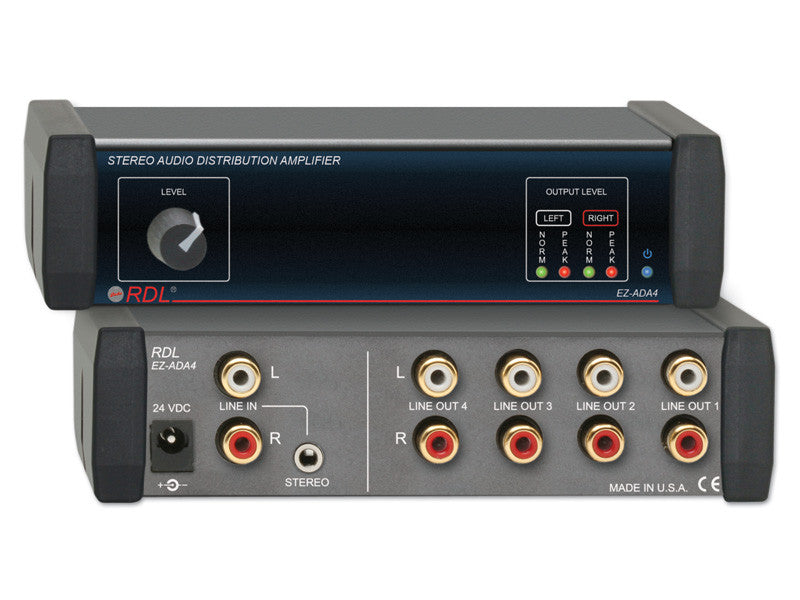

The EZ-ADA4X is a mono audio distribution amplifier with gain adjustment and audio level metering. The input is connected through RCA jacks or a MINI jack. A front-panel knob adjusts for high or low input levels using the left and right channel LED VU meters. Four Mono outputs are provided on RCA jacks. The EZ-ADA4X is used in stores, houses of worship, restaurants, clubs, security systems and commercial A/V systems.
Features
- One Mono Input to Four Mono Outputs
- Unbalanced Inputs on MINI or RCA Jacks
- Unbalanced Outputs on RCA Jacks
- Inputs and Outputs on Rear Panel
- Front-Panel LEVEL Control
- Dual-LED VU Meter for Each Channel
Specifications
| Inputs (2) | Mono on dual RCA jacks or Mono mini jack, > 10 k?, ?10 dBV nominal, +22 dBV max. |
| Level control | Off to 12 dB gain above nominal |
| Outputs (4) | Mono on dual RCA jacks, ?10 dBV nominal, +16 dBV max. |
| Frequency Response | 10 Hz to 20 kHz (±0.01 dB) |
| THD+N | < 0.03% |
| Crosstalk | 80 dB (1 kHz) |
| Metering | Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output |
| Noise | 85 dB (below ?10 dBV output) |
| 24 Vdc power supply current | 20 mA (idle), 60 mA (max.) |

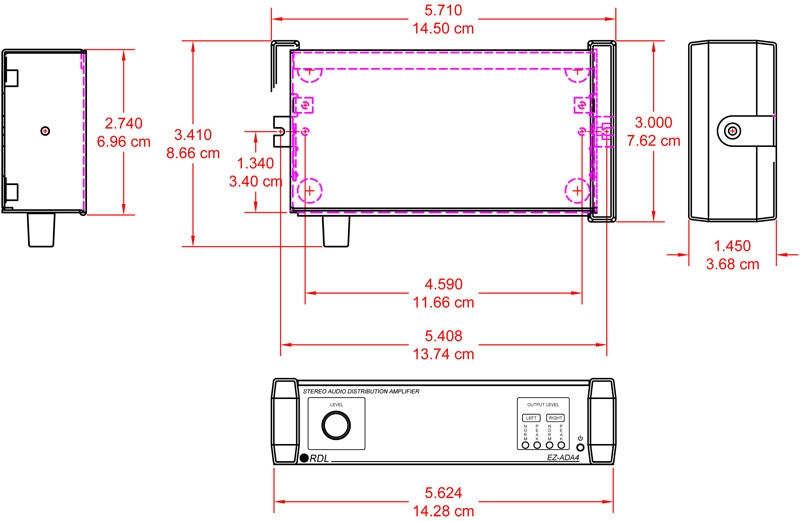

| Case dimensions | 5.75” (14.6 cm)W x 3” (7.6 cm)D |
| Mounting size | ? rack width. |
| Package Type | Cardboard Box |
| Package Dimensions | 9.5 x 7 x 2.25 in. |
| Shipping Weight | 0.95 lbs. |
| WEEE weight | 0.565 lbs. |
| Tariff code | 8518.40.2000 |
