Overview

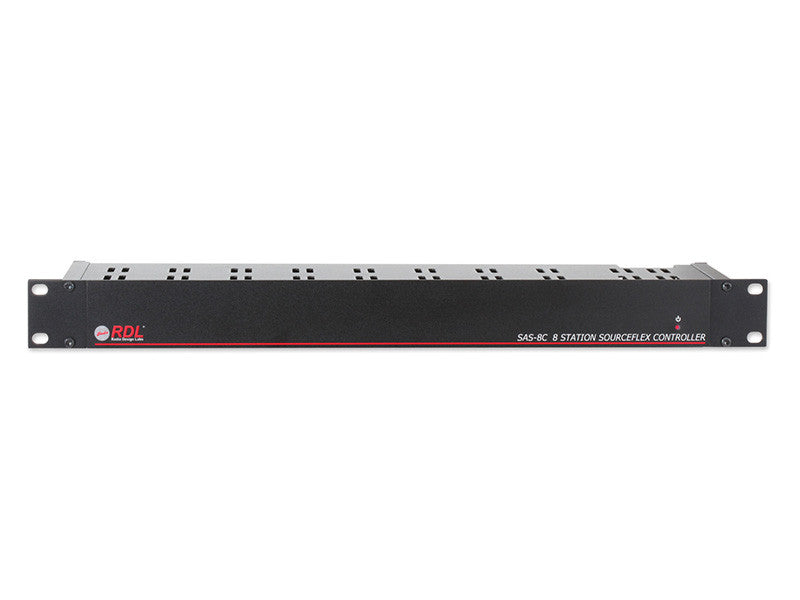

SAS-8c 8 Station Audio Controller controls eight SourceFlex remote listening station. Six conductor wire connects each remote station with the SAS-8C. The power conductor is protected by an automatically resetting fuse. Use of the SAS-8C in large SourceFlex systems yields the most economical cost per station.
Features
- Controls 8 SourceFlex listening stations
- Provision to set maximum listening level at each station
- Auto-resetting fuse protects power feed to each listening station
- Daisy-chain connections to/from SAS-82 and/or SAS-8i
Specifications
| Input, bus | 24-pin ribbon cable header driven from SAS-8i |
| Output, bus | 24-pin ribbon cable header loop-through output to drive additional SAS-82 or SAS-8C |

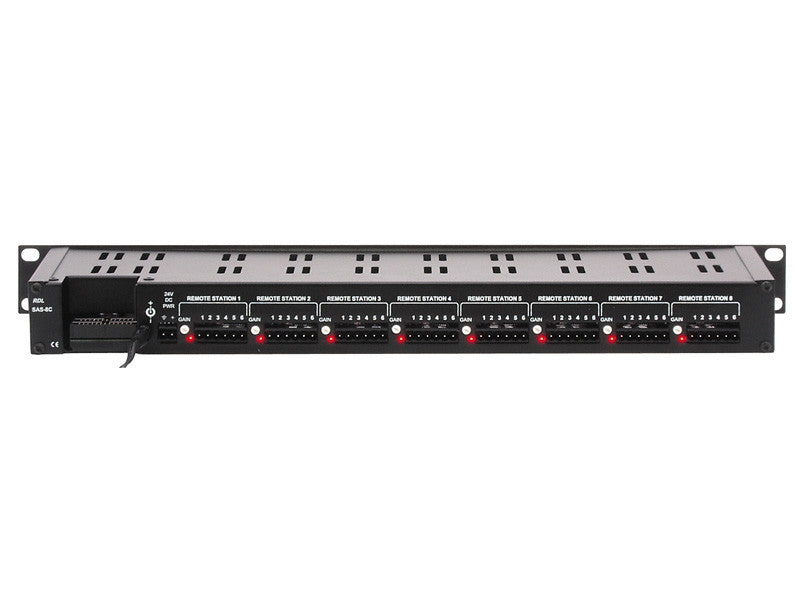

| Remote Outputs (8) | 6-position detachable terminal blocks (connection to remote Listening Station) |
| Audio Output Gain Range | 40 dB (trimpot adjustable) |
| Indicators (8) | LED - output voltage present at Remote Output |
| Power Requirement | 24 Vdc @ 2 A, Ground-referenced |
| Ambient Operating Environment | 0° C to 50° C |
| Package Type | Cardboard Box |

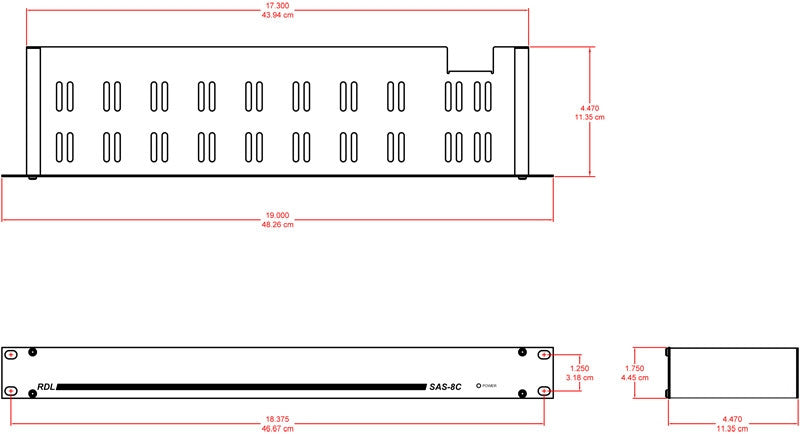

| Package Dimensions | 20.5 x 6.75 x 2.25 in. |
| Shipping Weight | 4.29 lbs. |
| WEEE weight | 3.72 lbs. |
| Tariff code | 8517.62.0050 |
