Overview

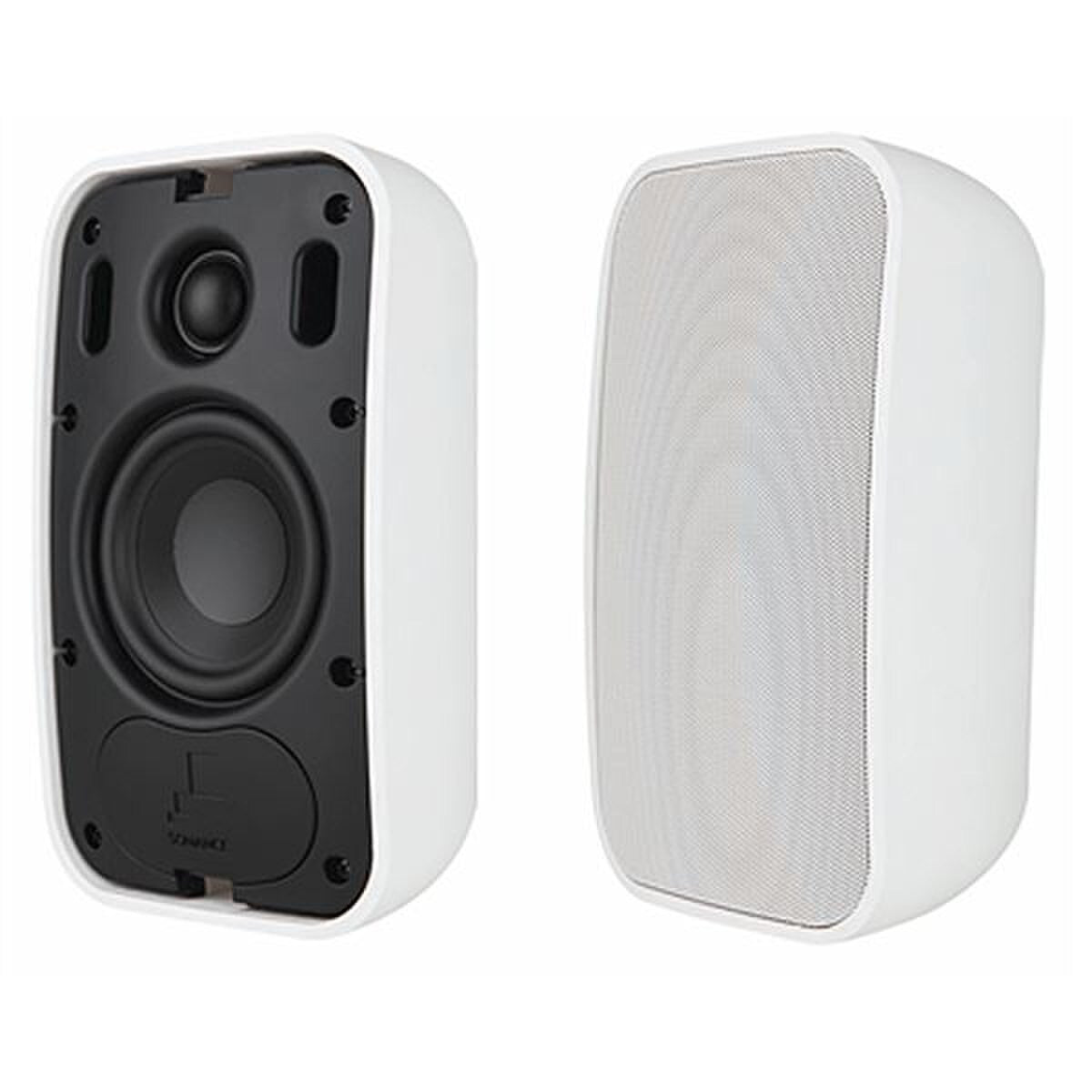

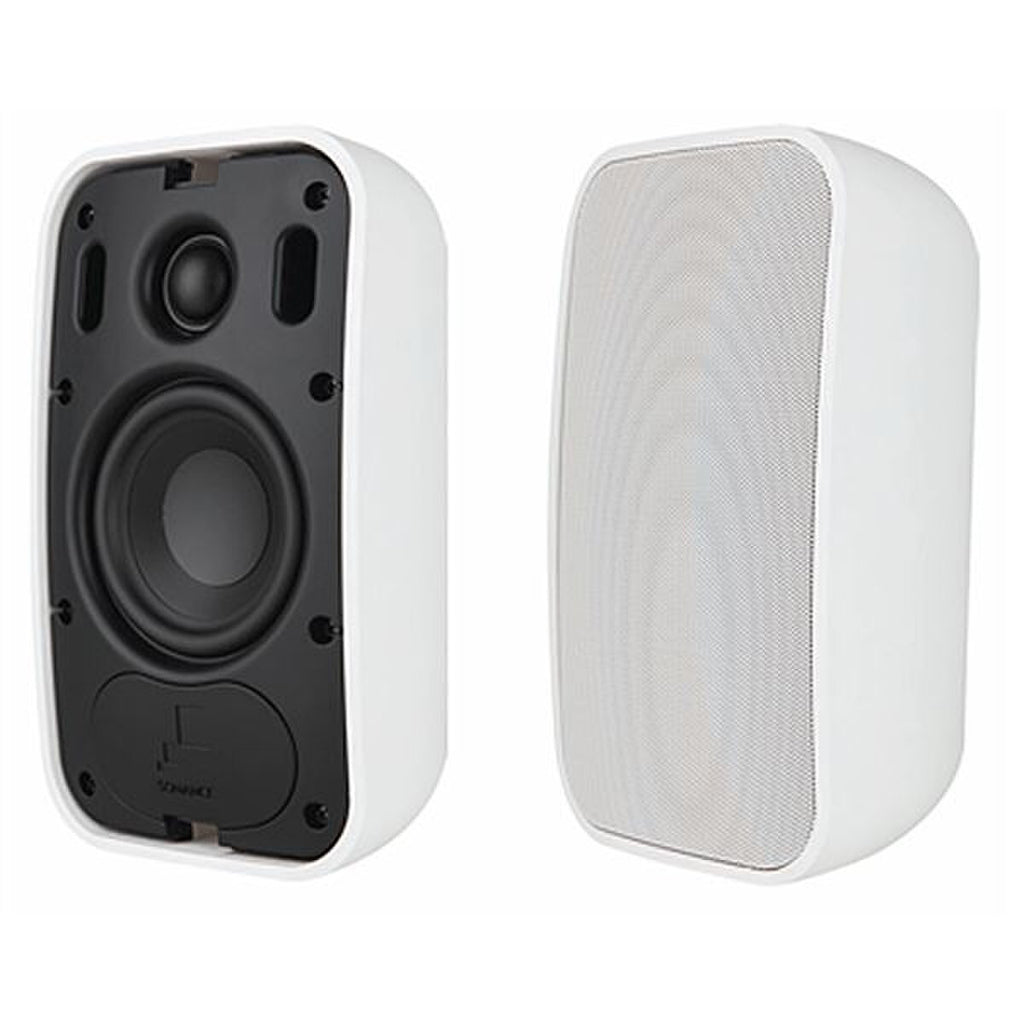

Sonance Professional Series 8" Surface Mount
Sonance Professional Series PS-S83T Surface-Mount Speaker features the Patented FastMount® bracket and front cable connection to speed up the installation process and provide a clean appearance.
The IPX4 rated construction features a weatherproof high-impact, extreme temperature resistant cabinet and corrosion-proof powder coated aluminum grille, lending itself perfectly in both indoor and outdoor applications.
A high-excursion 8” polypropylene woofer delivers effortless low bass extension, that is equal or better to systems using dedicated subwoofers, while the chambered 1” soft dome tweeter provides accurate high-end detail and exceptional coverage.
A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.
Additionally, the Sonance PS-S83T is certified for is certified for UL 1480 (UEAY) and 2239.
Available in either black or white (paintable).
~Features
• 8" Polypropylene cone Woofer; 1" Cloth dome Tweeter
• Power Handling RMS: 160W program, 80W pink noise
• Taps: 60W, 30W, 15W (7.5W 70V), 8 Ohm
• Frequency range (-3 dB): 55 - 20kHz; 90 dB Sensitivity
• Paintable corrosion-proof powder coated aluminium grille
• IPX4 splash-proof rating, extreme temperature resistant cabinet
Specifications
| Frequency Range (-10dB): | 41Hz - 25kHz |
| Frequency Range (-3dB): | 55Hz – 20kHz |
| Power Capacity: | 160 Watts Continuous Program Power | 80 Watts Continuous Pink Noise |
| Nominal Sensitivity: | 90dB |
| Nominal Coverage Angle: | 90 degrees x 90 degrees coverage |
| Directivity Factor (Q): | 7.6dB |
| Directivity (DI): | 8.1dB |
| Rated Maximum SPL: | 110dB @ 1 meter (3.3 feet) average, 116dB peak |
| Rated Impedance: | 8 Ohms nominal, 6 Ohms minimum |
| Transformer Taps: | 70V: 60W, 30W, 15W and 7.5W |
| Crossover Point: | 2750Hz |
| Overall Dimension: | 14.02” Height x 9.01” Width x 8.58” Depth (356mm x 229mm x 218mm) |
| Net Weight: | 10 lbs (4.53kg) each |
| Shipping Weight: | 25 lbs (11.34kg) pair |
| Unit of Measure: | Pair (Single units upon request) |
| Color: | Black or White |
| Grille: | Powder Coated Aluminum Friction Fit |
| LF Driver: | 8" (203mm) Polypropylene Cone, Butyl Rubber Surround |
| HF Driver: | 1" (25mm) Cloth Dome, Ferrofluid cooled |
| Input Connectors: | Front-mounted four pin, Euroblock with loop output connections |
| Safety Agency: | UL 1480, UL 2239 |
| Mounting Bracket: | U-Bracket with Sonance FastMount |
| Environmental & UV: | Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating |
