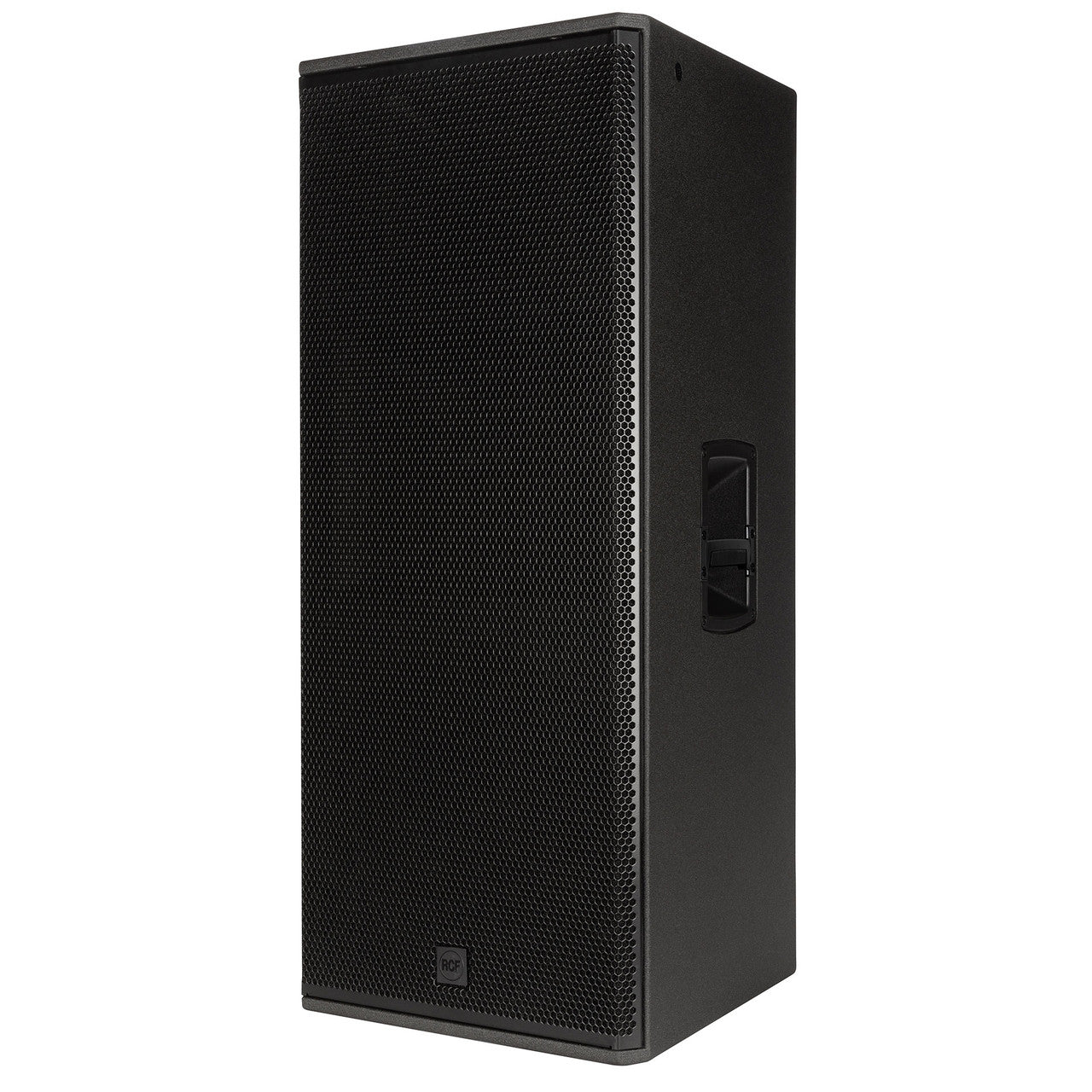

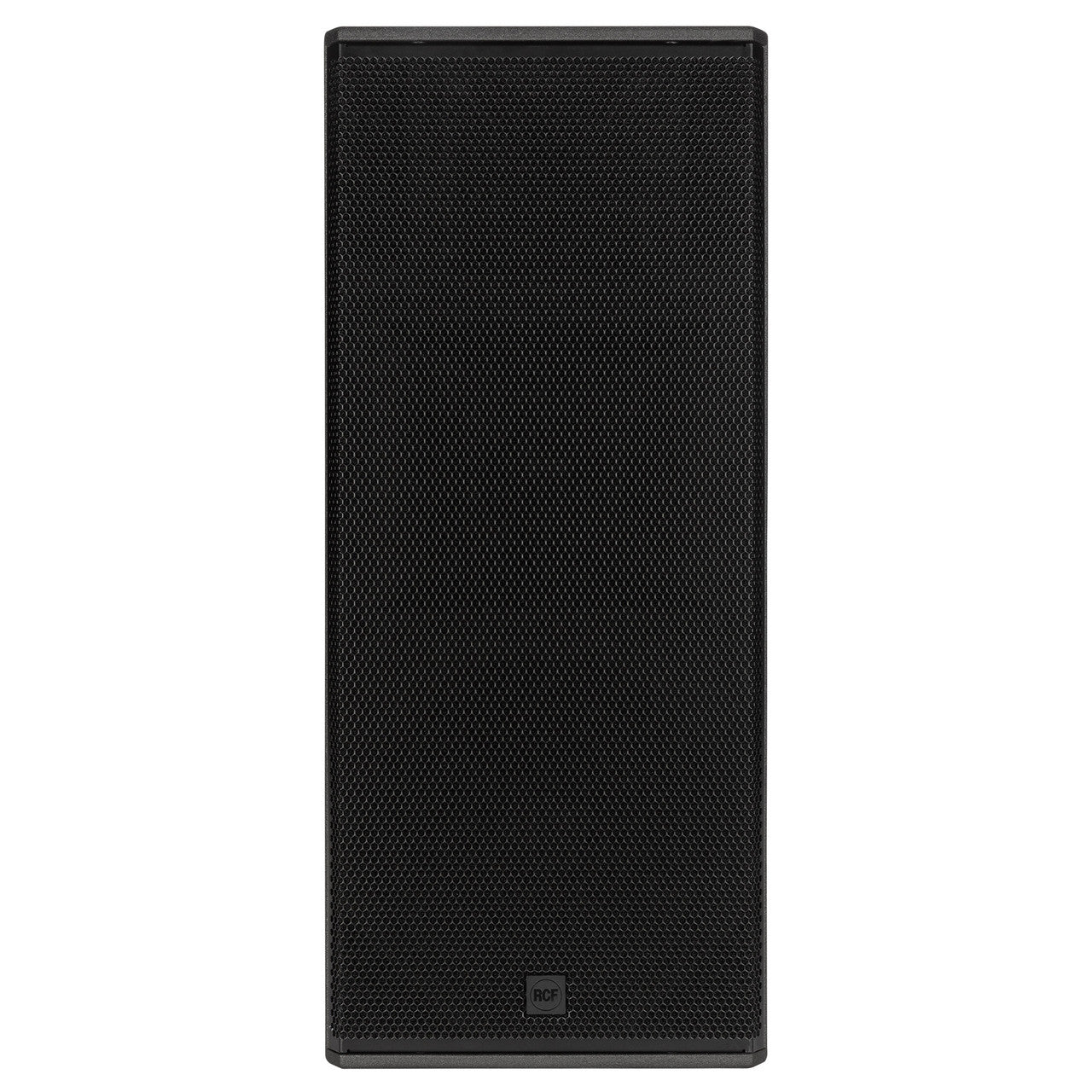

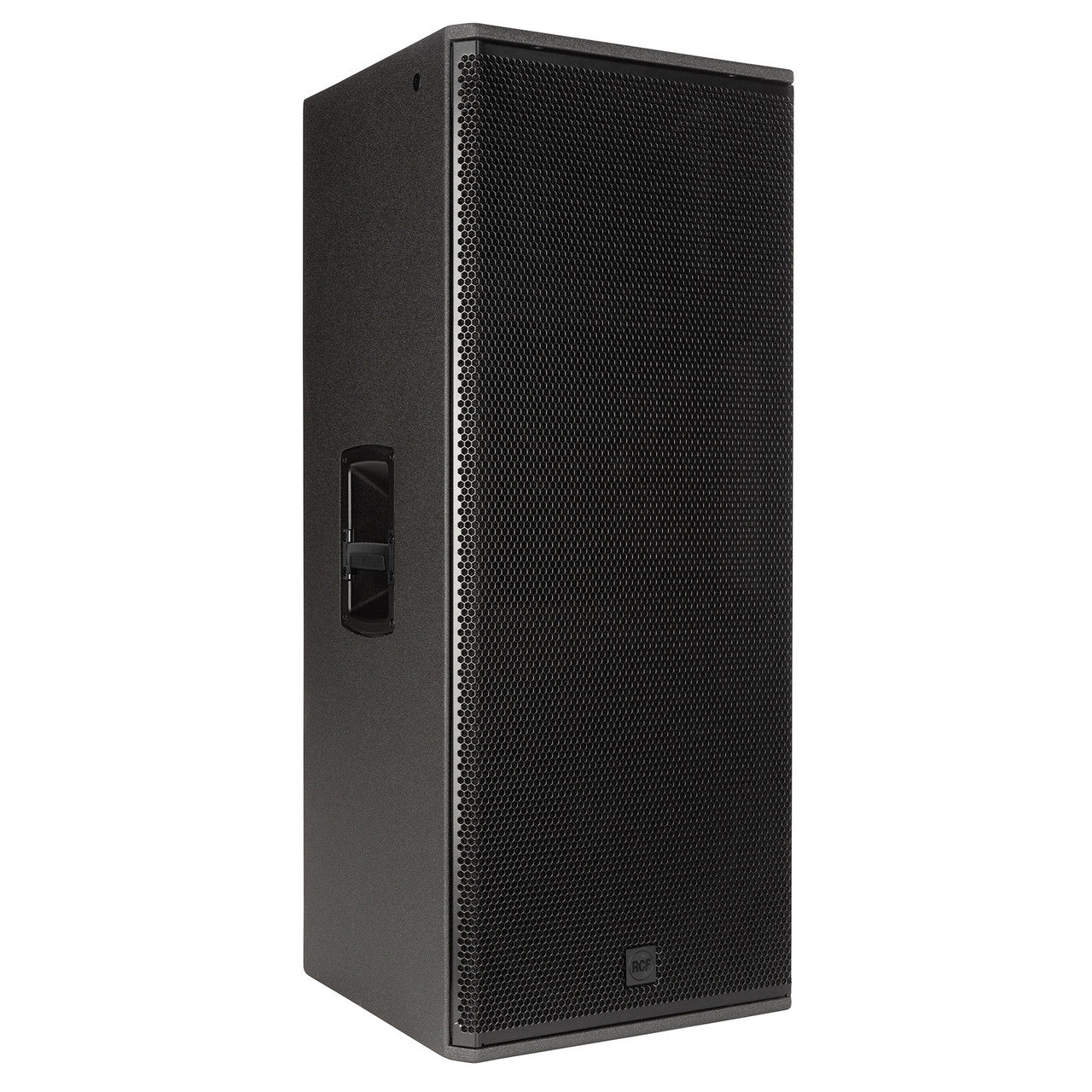

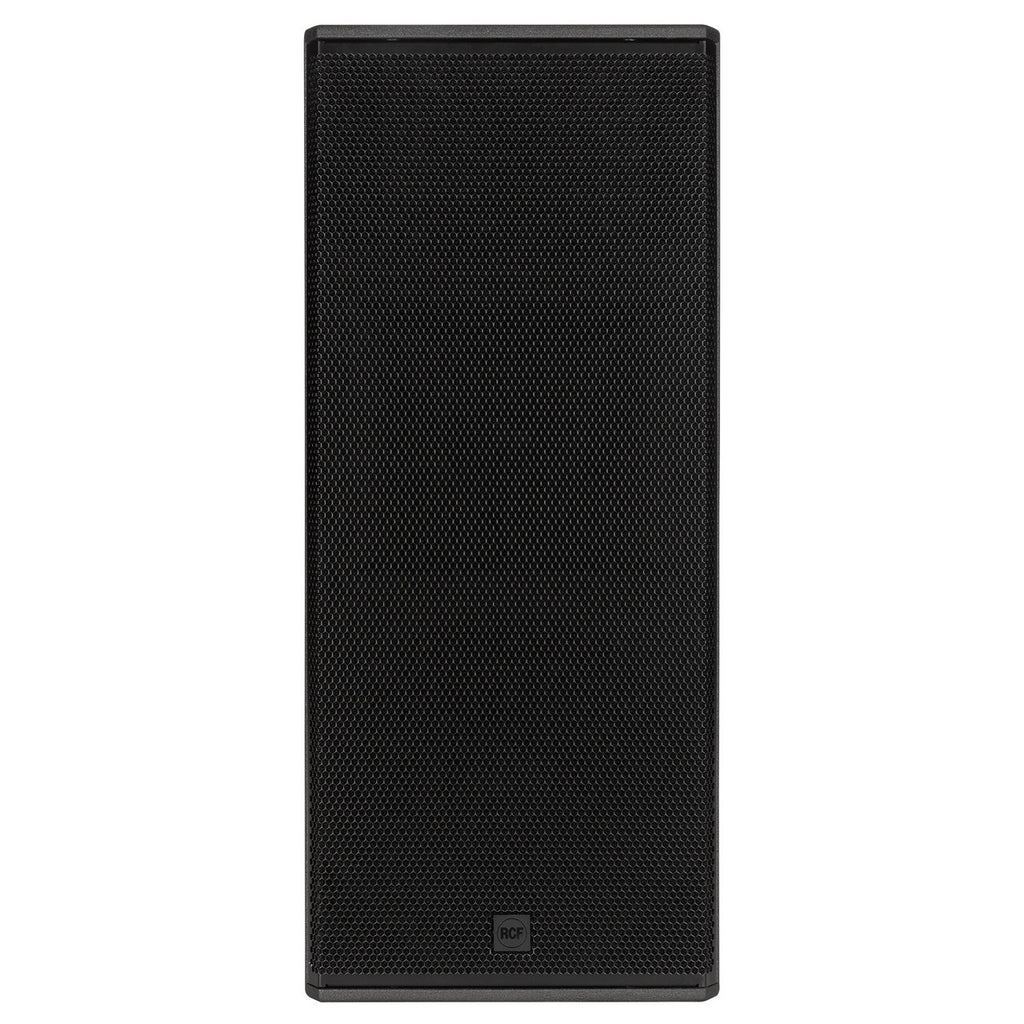

NX 985-A is a three-way active speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of RCF premium transducers and a two-channel 2100W amplifier produce coherent 100° x 60° coverage for the listening area with up to 138 dB SPL of distortion-free sound. The three-way design features a 1.75" neodymium compression driver with a constant directivity waveguide, 8" cone midrange on a phase-coherent waveguide, and a 15" high power woofer. Used as a stand-alone speaker, flown, coupled with another NX 985-A or combined with the RCF SUB 8008-AS subwoofer, the NX 985-A delivers extreme SPL output at all frequencies with high performance and reliability. The rugged, tour-ready, high-quality all-plywood cabinet is easy to carry and secure to install using the dedicated rigging points available.
Features
Skip to product information

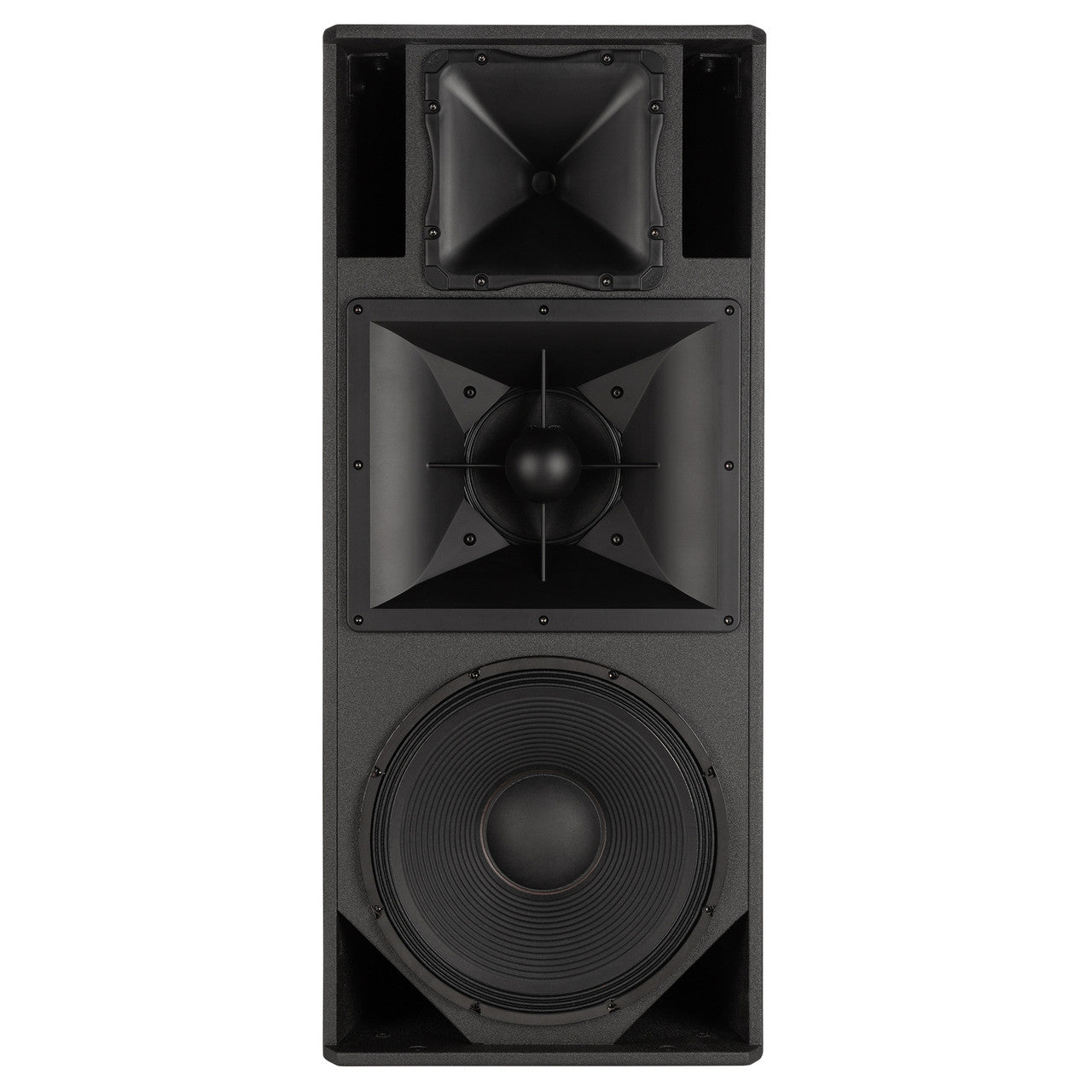

RCF NX985-A
MSRP:
$4,599.00
MAP:
$3,269.00
Active 2100W 15" 3-way Speaker with 8" Midrange
SKU: RCF-NX985-A
Acoustical specifications
Frequency Response : 40 Hz ÷ 20000 Hz
Max SPL @ 1m : 138 dB
Horizontal coverage angle : 100°
Vertical coverage angle : 60°
Transducers
Compression Driver : 1 x 1.0'' neo, 1.75'' v.c
Midrange : 1 x 8'' neo, 2.5'' v.c
Woofer : 1 x 15'', 3.0'' v.c

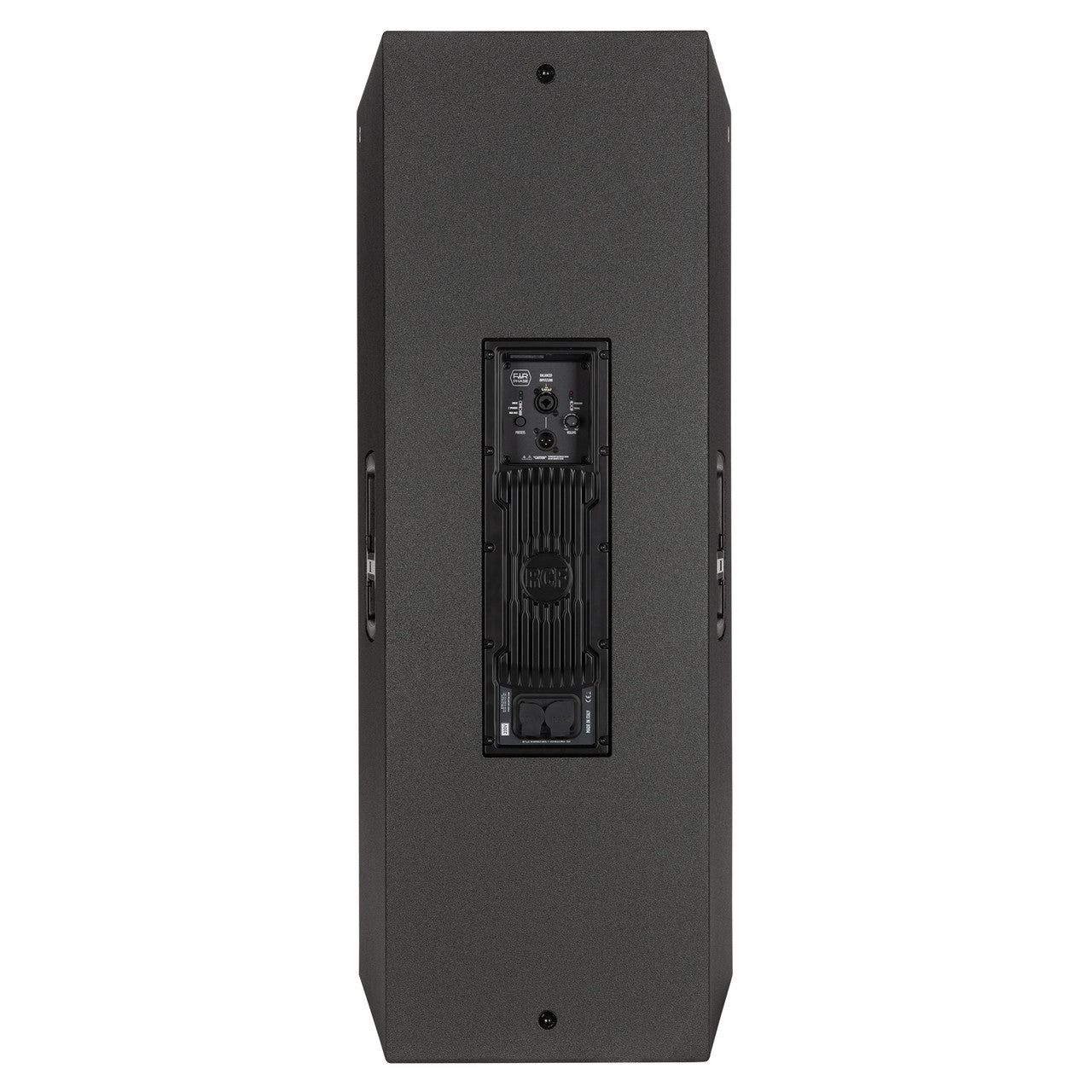

Input/Output section
Input signal : bal/unbal
Input connectors : Combo XLR/Jack
Output connectors : XLR
Input sensitivity : -2 dBu/+4 dBu
Processor section
Crossover Frequencies : Bass/Mid:320Hz, Mid/High:1200Hz
Protections : Thermal, Excurs., RMS
Limiter : Soft Limiter
Controls : Linear, 2 Speakers, High Pass, Volume
Power section
Total Power : 2100 W Peak
High frequencies : 200 W Peak
Mid frequencies : 500 W Peak
Low frequencies : 1400 W Peak
Cooling : Convection
Connections : Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency : CE compliant
Physical specifications
Cabinet/Case Material : Plywood

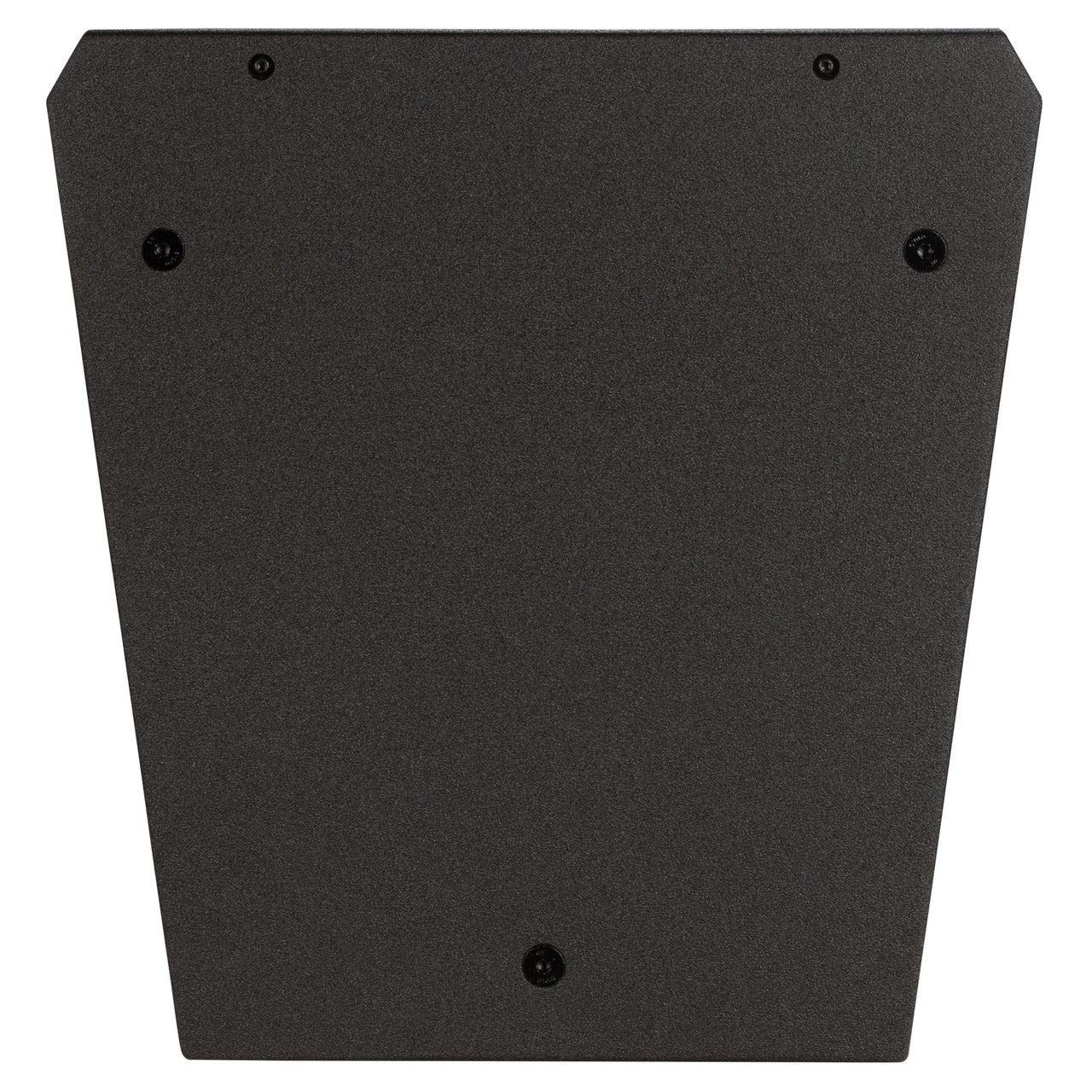

Hardware : 3 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 2 x M10 rear

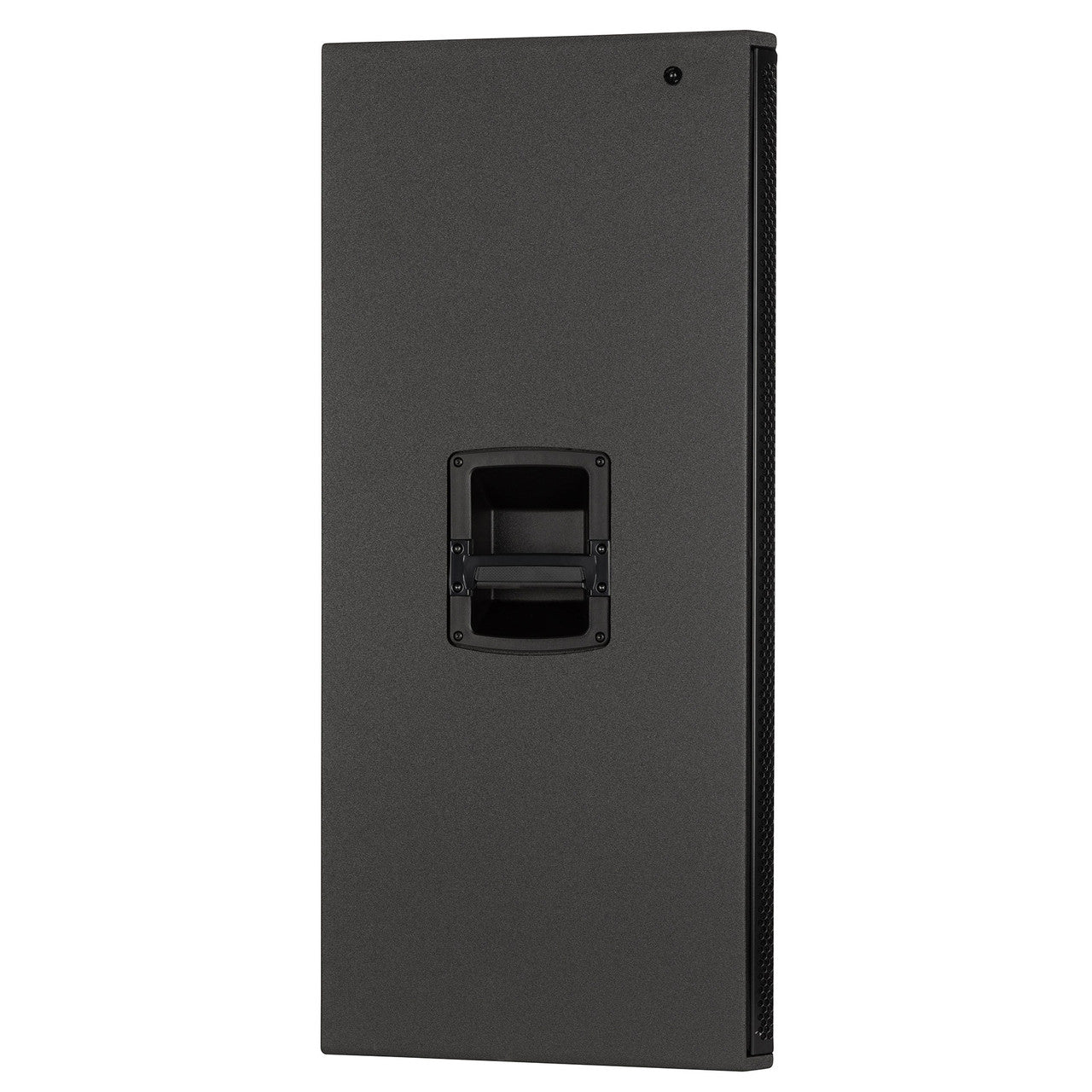

Handles : 1 x Side

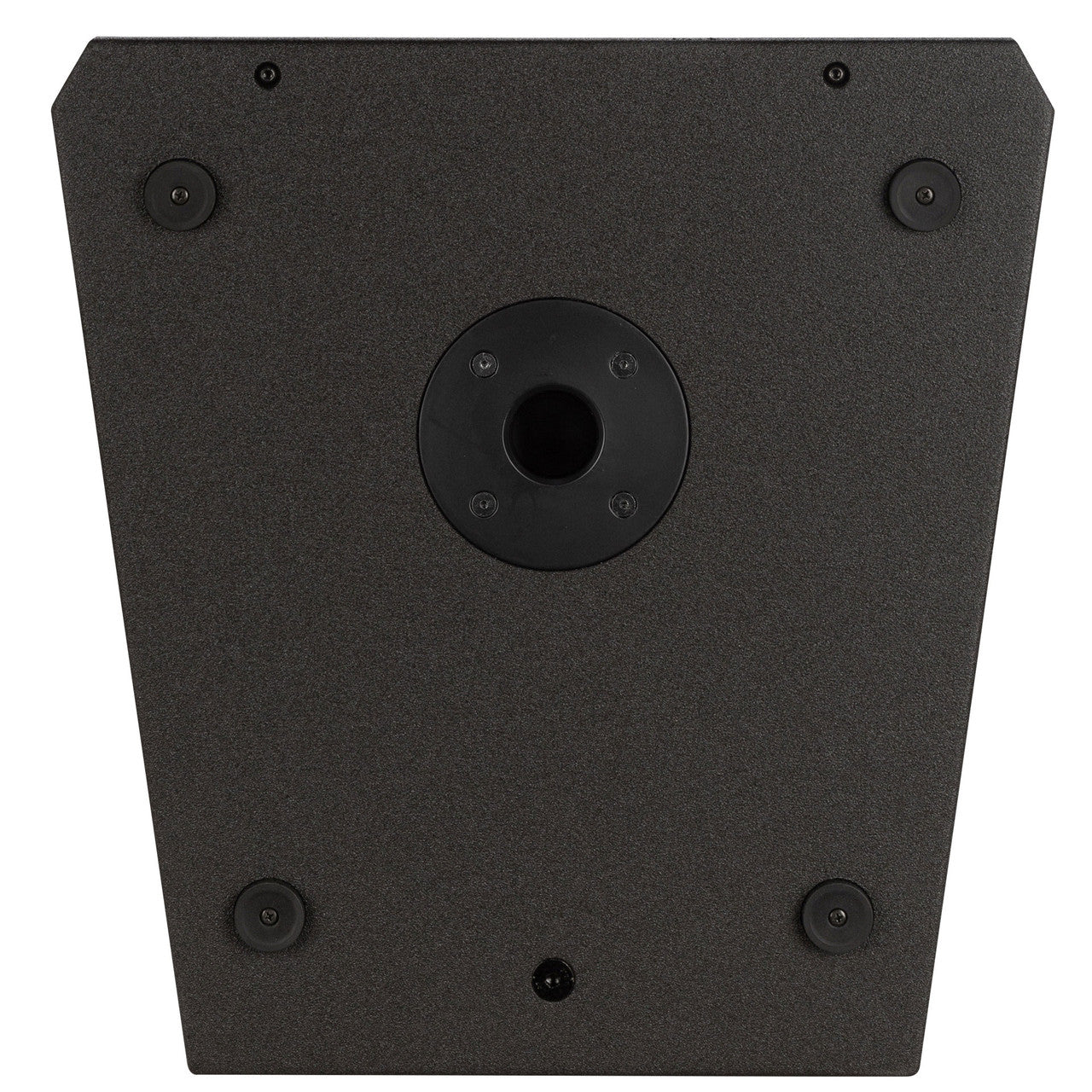

Pole mount/Cap : 35 mm insert
Grille : Steel
Color : Black
Size / Weight
Height : 1075 mm / 42.32 inches
Width : 461 mm / 18.15 inches
Depth : 475 mm / 18.7 inches
Weight : 45 kg / 99.21 lbs
Shipping information
Package Height : 530 mm / 20.87 inches
Package Width : 1110 mm / 43.7 inches
Package Depth : 490 mm / 19.29 inches
Package Weight : 51 kg / 112.44 lbs
