Overview:

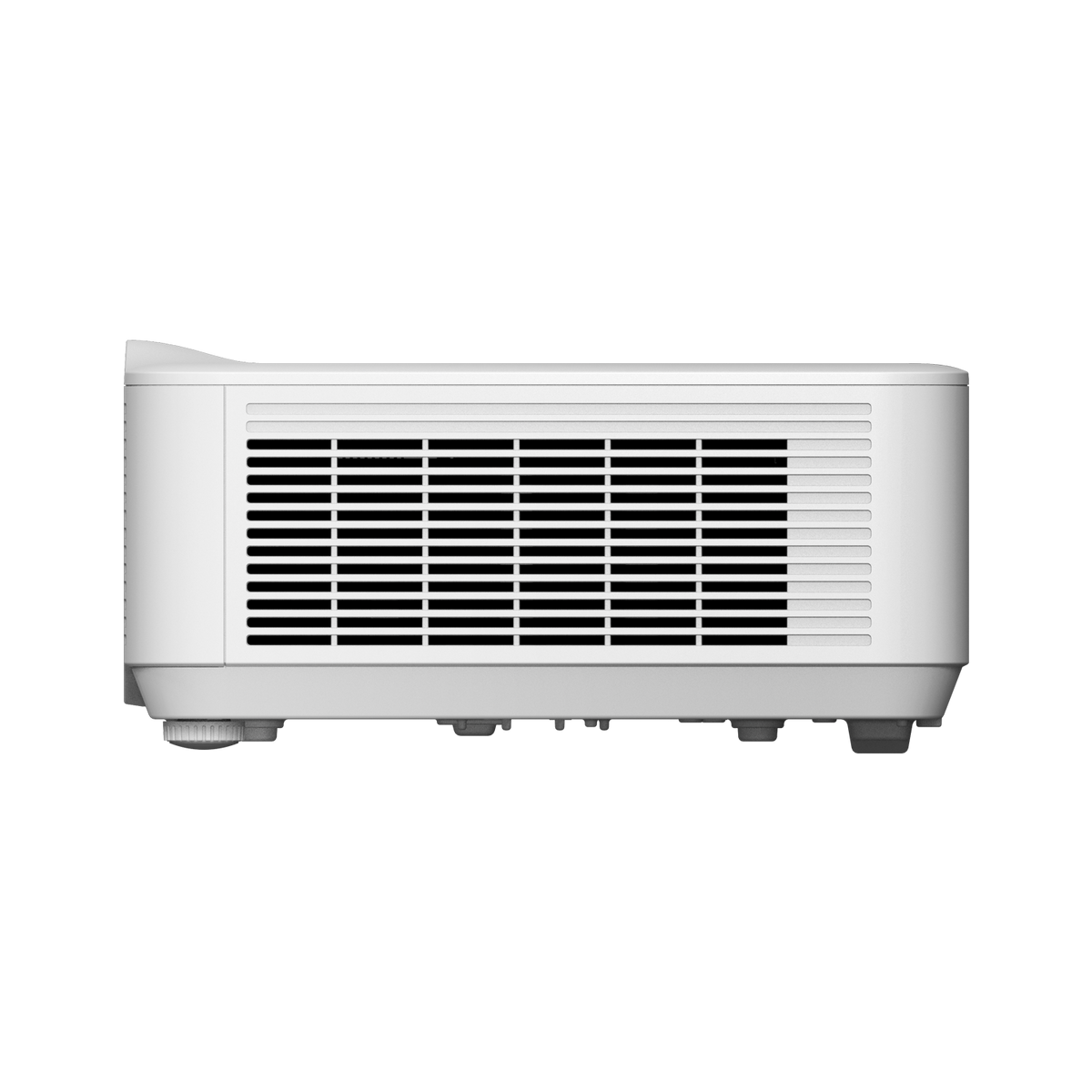

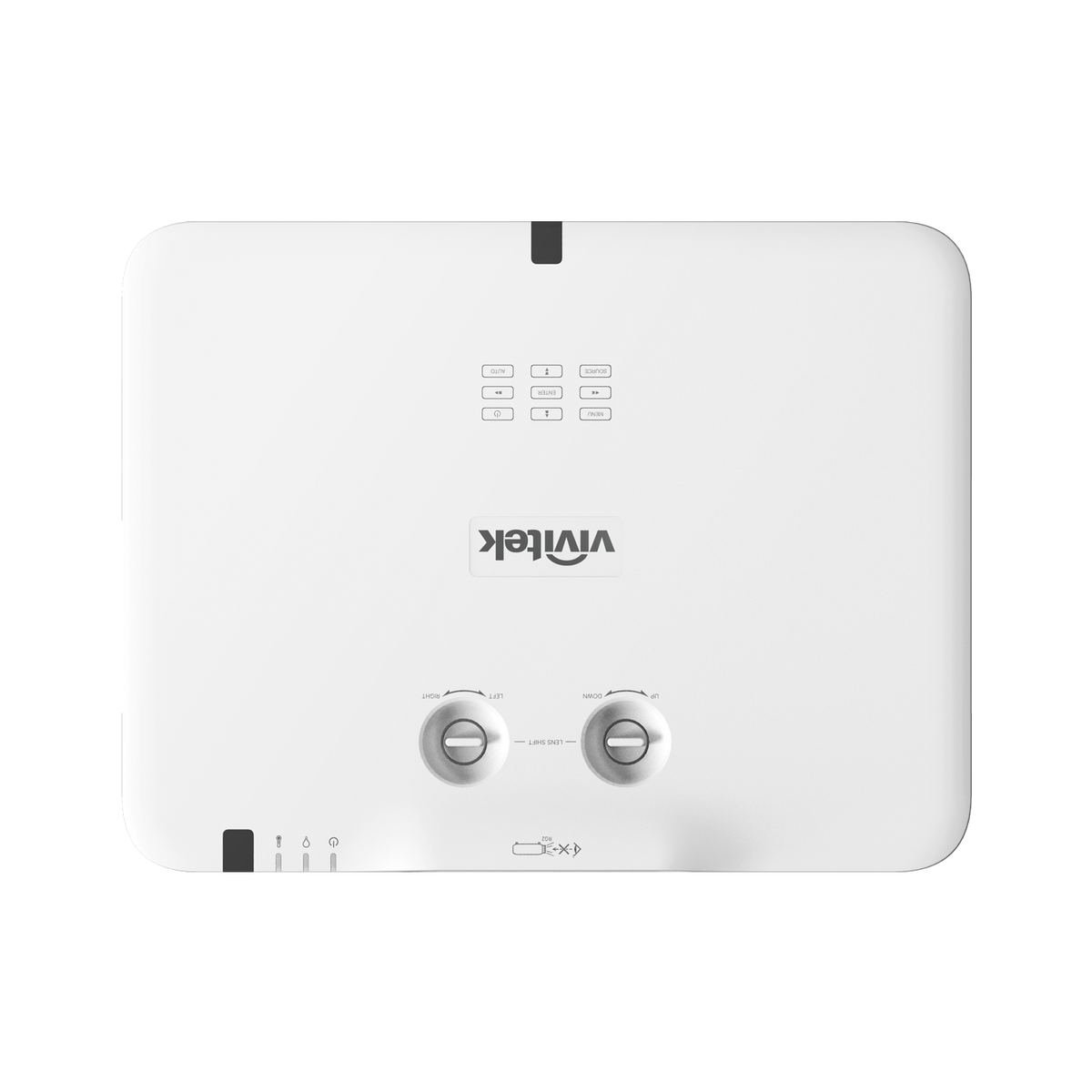

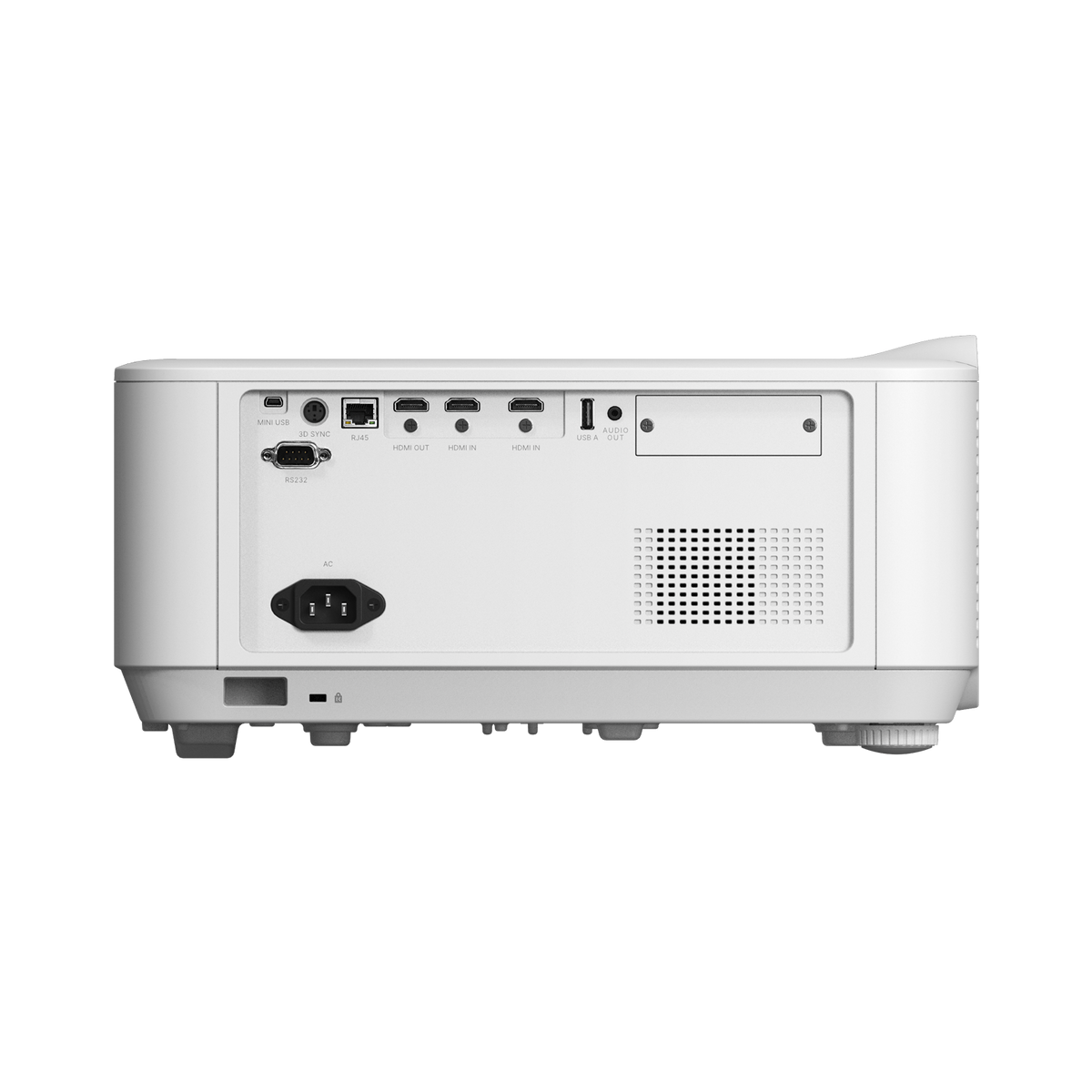

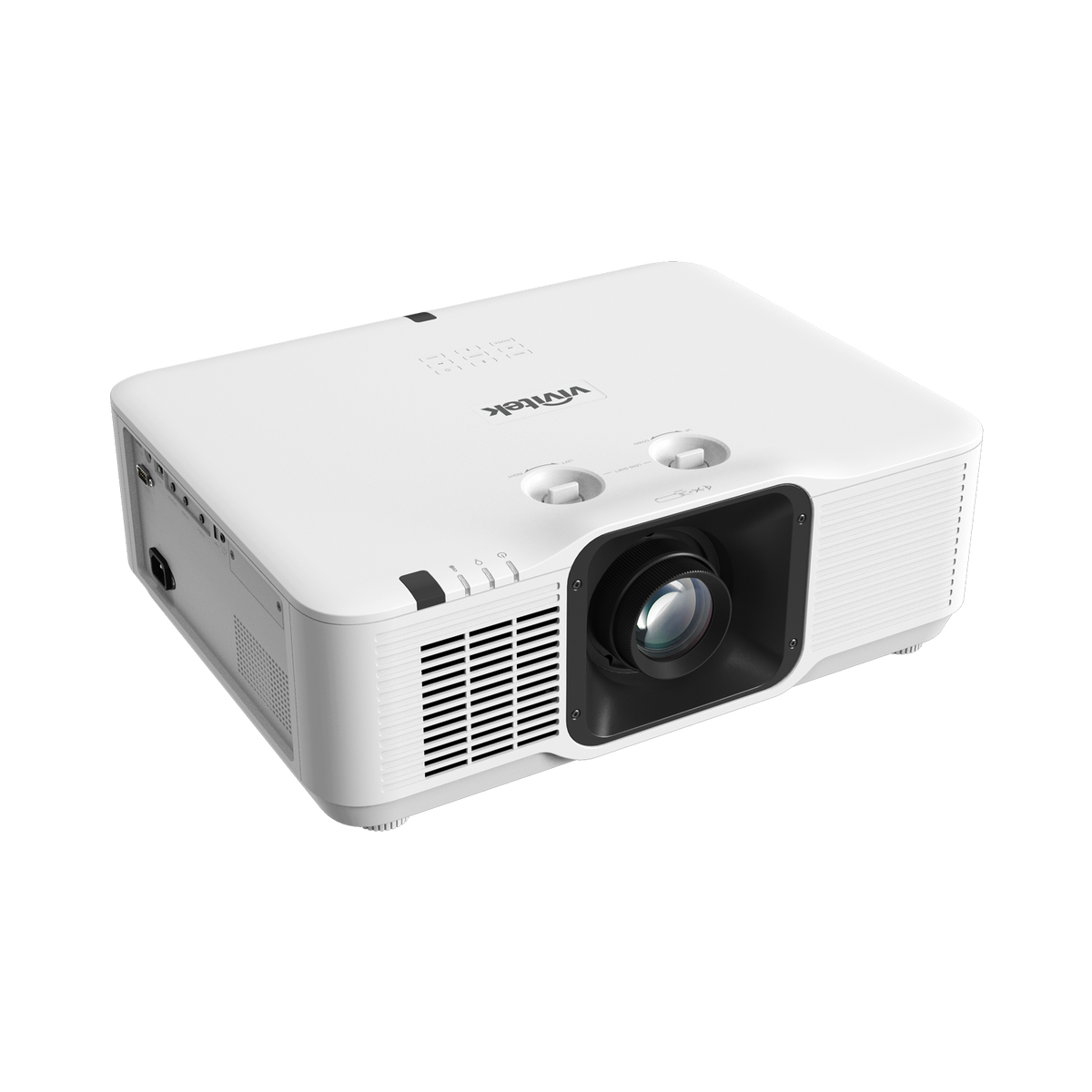

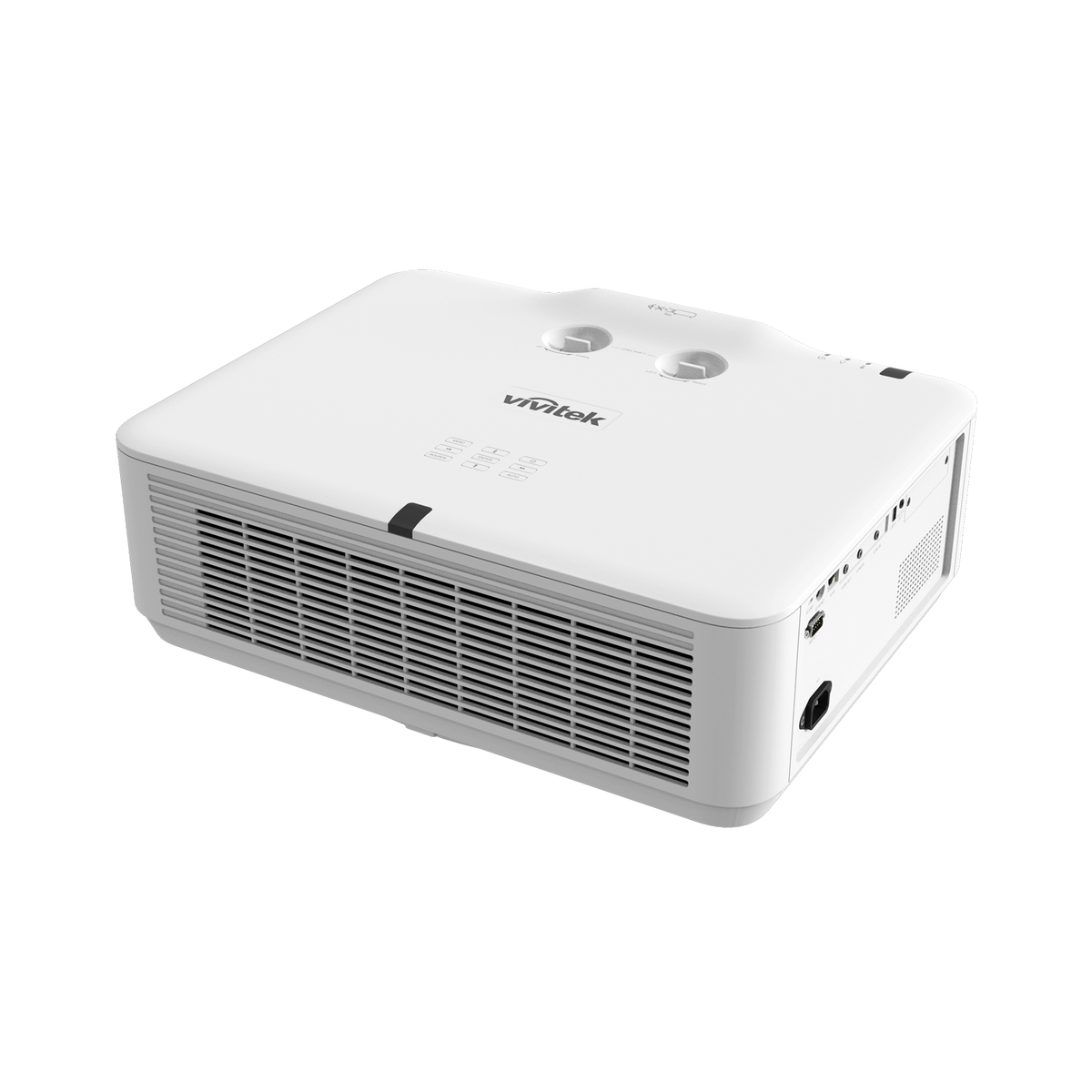

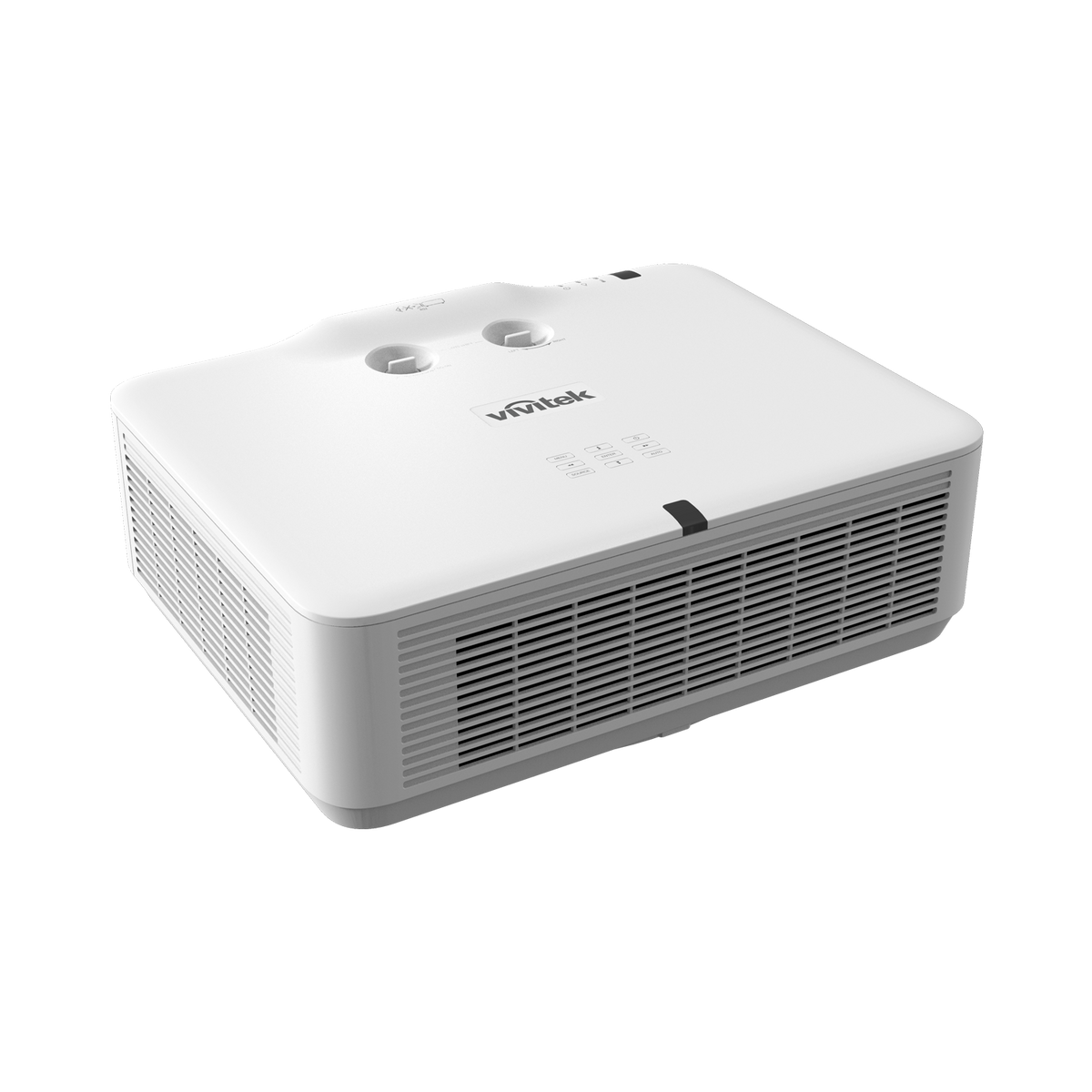

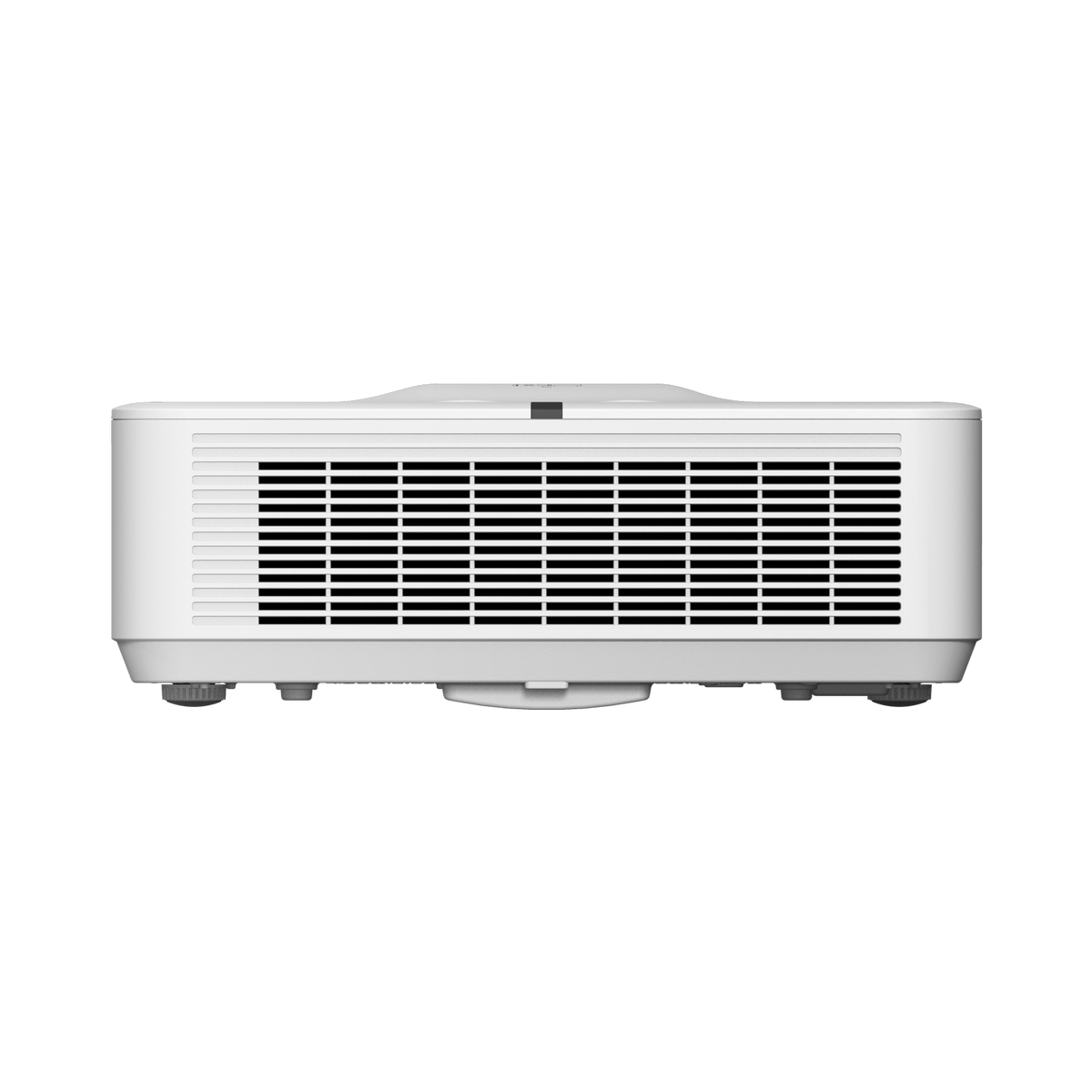

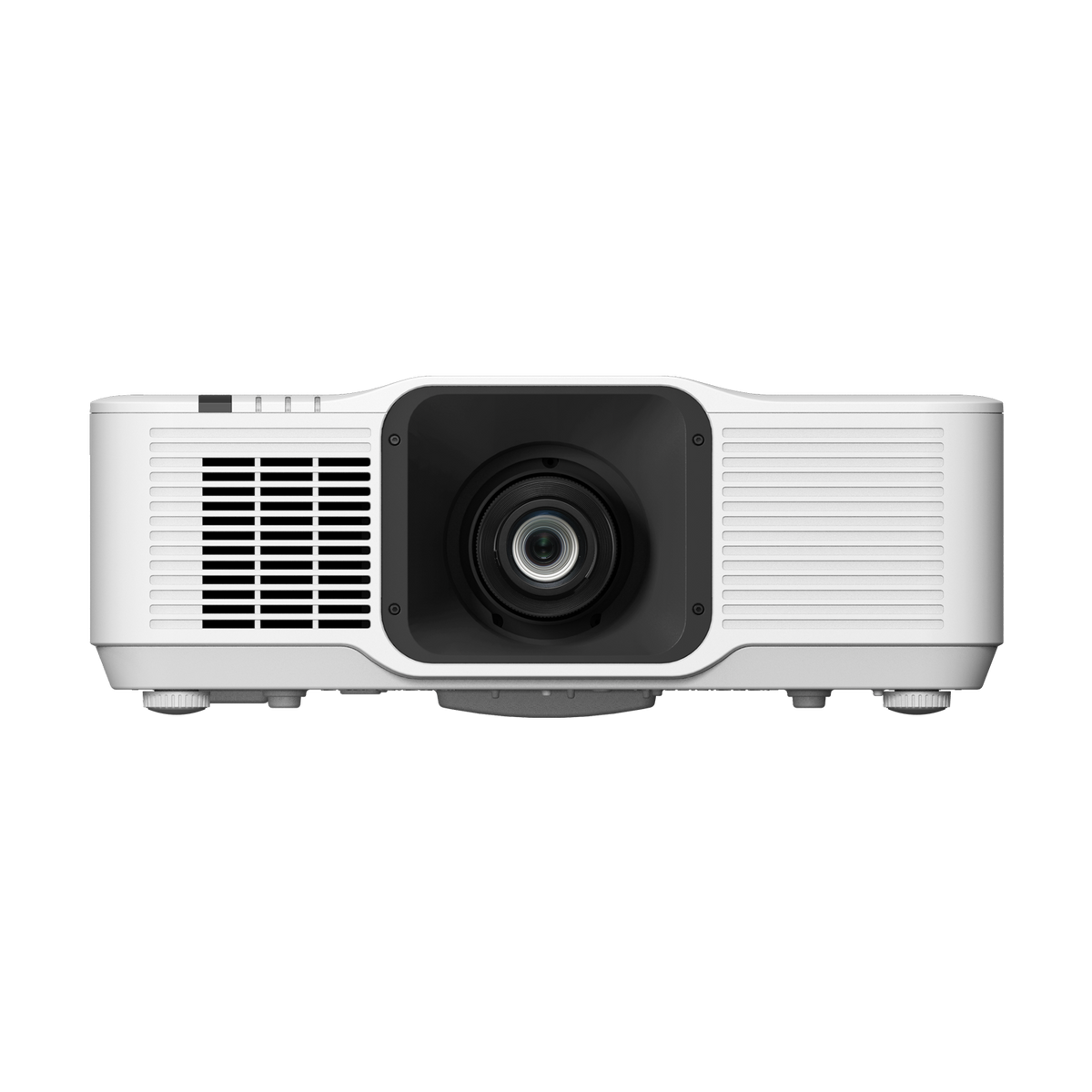

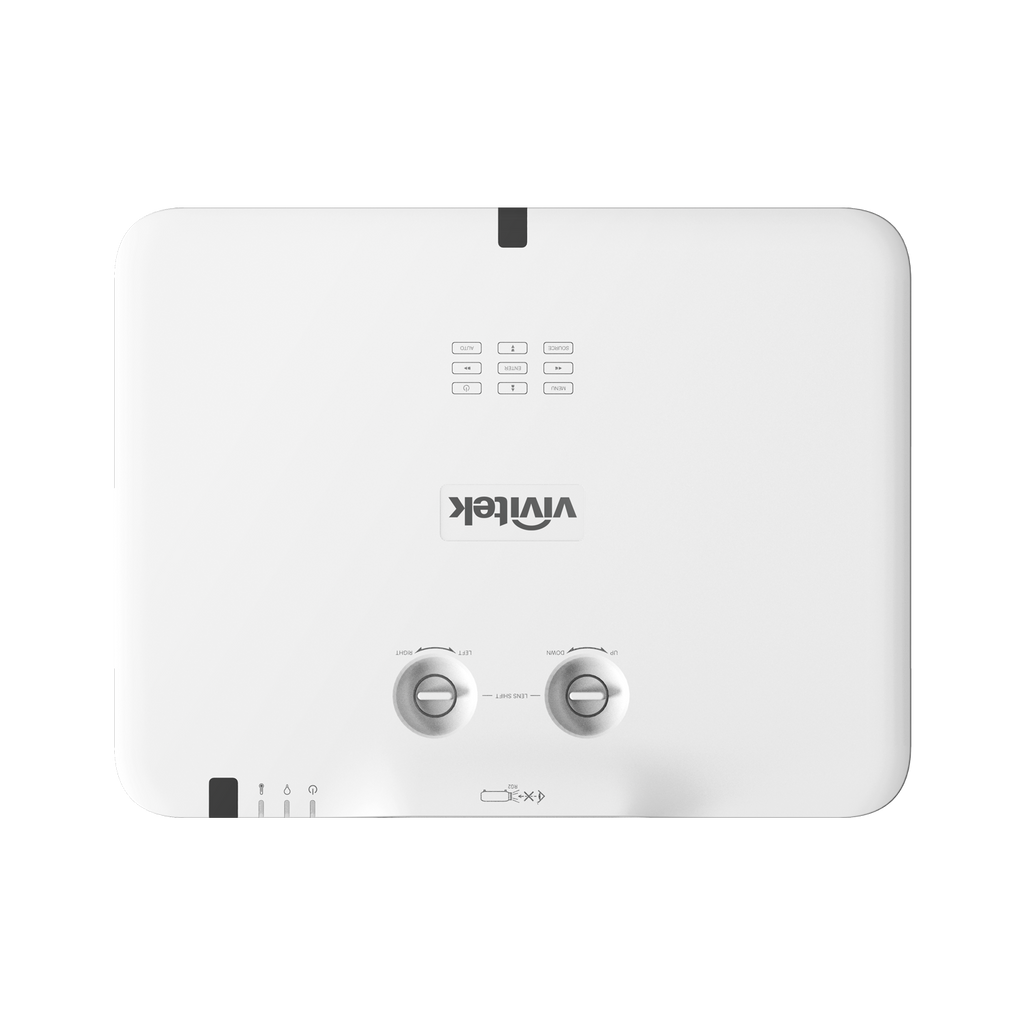

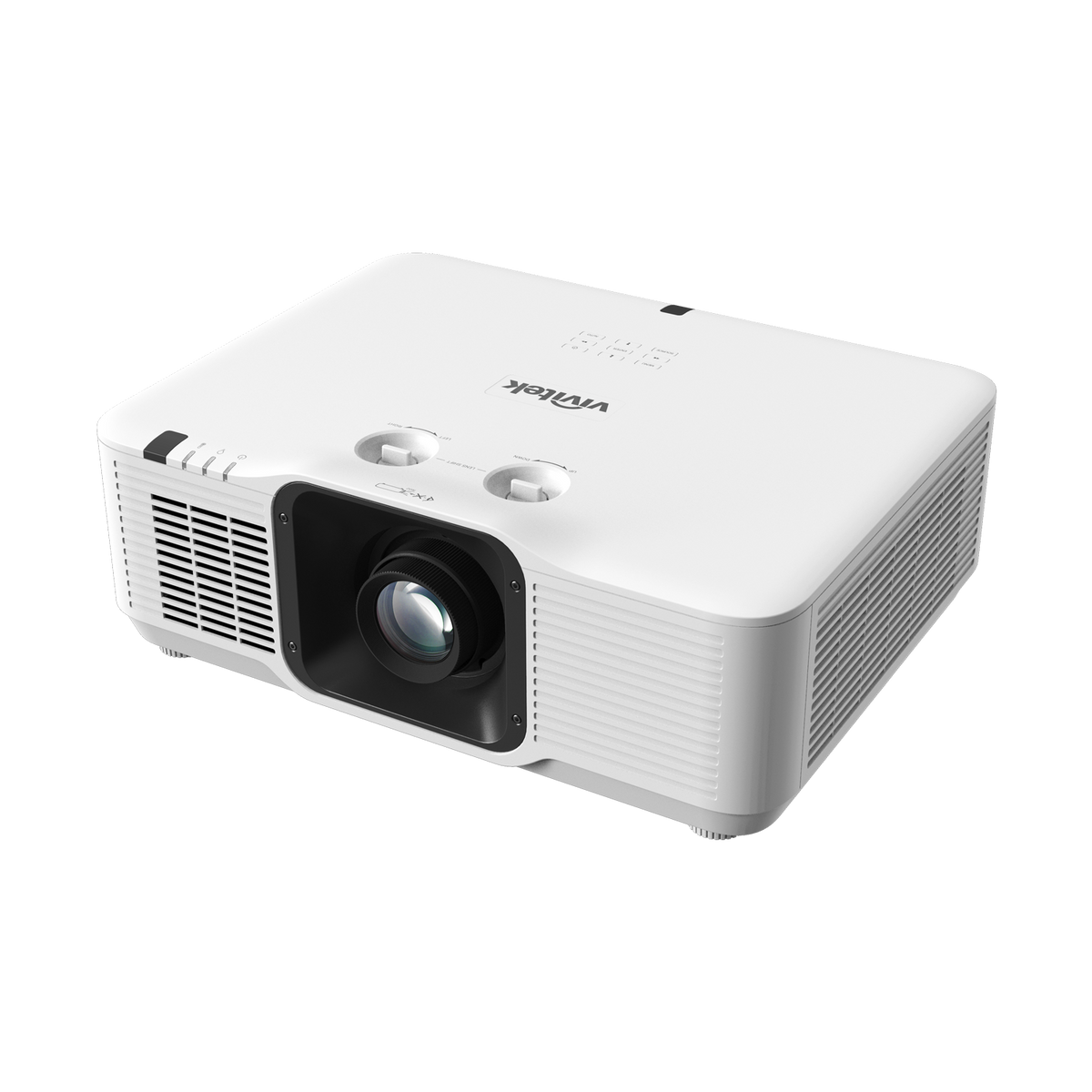

The Vivitek DU5053Z-WH-ST1 is a short-throw WUXGA laser projector designed for conference rooms, simulation environments, golf simulators, houses of worship, education, and professional AV installations. The ST1 version features a dedicated 0.5:1 short-throw lens, allowing large image projection from a much shorter distance than the standard DU5053Z. It delivers up to 6,500 lumens of brightness, supports 21:9 ultrawide conferencing formats, optional HDBaseT connectivity, HDR compatibility, 360° installation, and an IP6X-rated sealed optical engine for long-term reliability.
Features:
Short-throw 0.5:1 lens
6,500-lumen brightness
WUXGA native resolution
Laser phosphor light source
HDR compatibility
21:9 ultrawide display support
Optional HDBaseT connectivity
360-degree projection support
Portrait mode installation
IP6X sealed optical engine
Keystone correction
4-corner adjustment
24/7 operation capability
PJ-Control management software
Suitable for simulation and golf simulator applications
Specs:
| Product Type | Short Throw WUXGA Laser Projector |
| Projection System | 1-Chip DLP 0.67" |
| Native Resolution | WUXGA (1920 x 1200) |
| Brightness | 6,500 Lumens |
| Brightness Uniformity | 85% |
| Contrast Ratio | 3,000,000:1 |
| Light Source | Laser Phosphor |
| Light Source Life | 20,000 Hours (Normal) / 30,000 Hours (Eco) |
| Aspect Ratio | 16:10 |
| 21:9 Support | Yes |
| Lens Type | Short Throw Fixed Lens (ST1) |
| Throw Ratio | 0.5:1 |
| Lens Shift (Horizontal) | ±2% |
| Lens Shift (Vertical) | +95% to +109% |
| HDMI Inputs | 2 x HDMI 2.0 |
| HDMI Output | 1 x HDMI |
| Network Control | RJ45 LAN |
| Operation | 24/7 Continuous |
| Projection Orientation | 360° and Portrait Mode |
| Built-In Speaker | 10W Mono |
| Power Requirement | 100-240V AC, 50/60Hz |
| Product Weight | 26.4 lb |
| Product Dimensions | 19.5 x 14.9 x 6.3 in |
