Overview

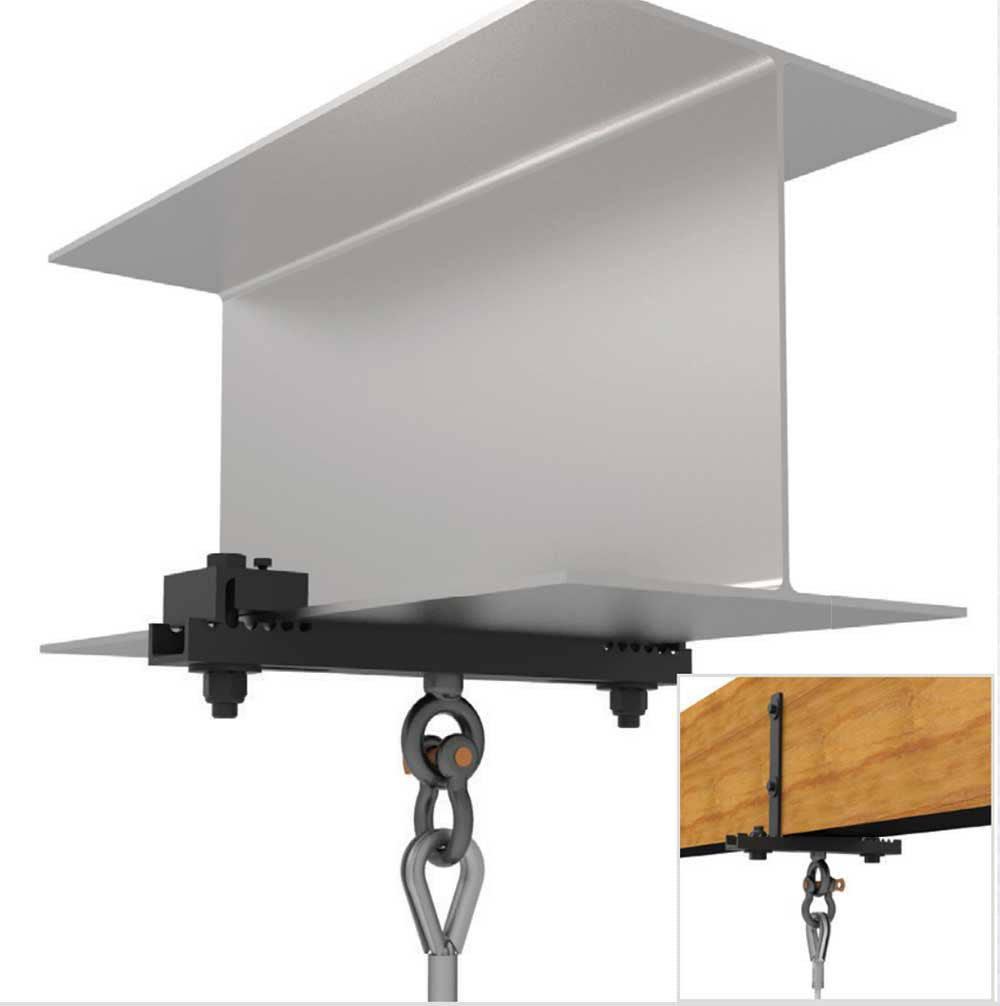

Standard, pre-engineered channel style beam clamps anchor to a building’s structure and offer a safe and predictable method of rigging grids, clusters, arrays and other objects from overhead. This channel style beam clamp is adjustable and mounts flush underneath the building’s I-Beams flanges. It comes equipped with a centrally located rigging point for suspending objects from wire rope, rigging chain, spansets, etc.
Use one of two channel style beam clamps to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 12” 17”(305mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor to achieve the stated working loads.
Key Features
- Single load-rated center hang point
- Provides safe load-rated hang point to 45° off center.
- Two models secure to beam flanges ranging from 12” – 17” / 305mm to 432mm
Specifications
| SPECIFICATIONS | PACKAGE CONTENTS |
| Materials: All Steel Components | 1 pc Beam Clamp Channel |
| Width: (BC12-17) 12” to 17” / 305mm to 432mm | 1 pc Locking Angle Plate |
| Finish: Powder Coat | 2 pcs Flat Washer, 5/8” |
| Color: Black | 2 pcs Nyloc Nut, 5/8-11 |
| WLL: 980 lb / 445 Kg WLL (VERTICAL) on metal beams and 300lb / 136kg max on wooden beams | 2 pcs 1/4” spacer |
| Design Factor: 5:1 | 2 pcs 1/2” spacer |
| 45 DEG. WL: 578 lb / 261 Kg | 2 pcs 1.00” spacer |
| DO NOT EXCEED 45° off hang points |
