Overview

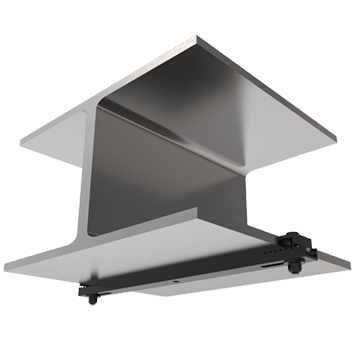

Provides a load rated overhead rigging point from structural I-Beams with flange widths ranging between 20” and 26” (508-660 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads with threaded rod from overhead and a hand wrench is all that is required to secure this clamp. *IMPORTANT – Beam flanges must be parallel to the floor to achieve the stated safe working loads.
NOTE: Recommended torque = 40-50 ft/lb
Standard Features
- Single center hang points for 1/2″ to 5/8″ dia. threaded rod.
- Provides safe load-rated hang points
- Clamps securely to beam flanges ranging from 20″ – 26″
Specifications
| SPECIFICATIONS | PACKAGE CONTENTS |
| Material: All Steel Components | 1 pc 12”-17” Beam Clamp Channel |
| Width: 20” to 26” | 2 pcs Locking Angle Plate |
| WLL:600 lbs / 272 Kg. | 2 pcs Flat Washer, 5/8” |
| Finish: Powder Coat | 2 pcs Nyloc Nut, 5/8-11 |
| Color: Black | |
| Design Factor: 5:1 | |
| Shipping Weight:12.25 lbs / 6 Kg. | |
