Overview

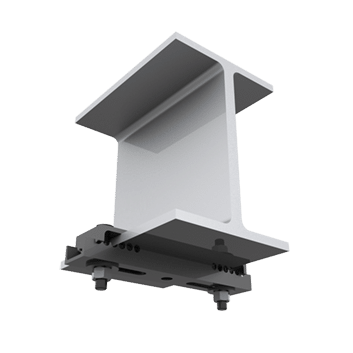

Use the BC3-8 channel style beam clamp to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 3” and 8” (76-203 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.
NOTE: Recommended torque = 40-50 ft/lb
Standard Features
- Single center hang points for 1/2″ to 5/8″ dia. threaded rod.
- Provides safe load-rated hang points
- Clamps securely to beam flanges ranging from 3″ – 8″
Specifications
| SPECIFICATIONS | PACKAGE CONTENTS |
| Material: All Steel Components | 1 pc 3”-8” Beam Clamp Channel |
| Width:(BC20-26-2) 20” to 26” | 2 pcs Locking Angle Plate |
| WLL:2100 lbs / 953 Kg. | 2 pcs Flat Washer, 5/8” |
| Finish: Powder Coat | 2 pcs Nyloc Nut, 5/8-11 |
| Color: Black | |
| Design Factor: 5:1 | |
| Shipping Weight: 3.2 lbs / 1.45 Kg. | |
