Overview

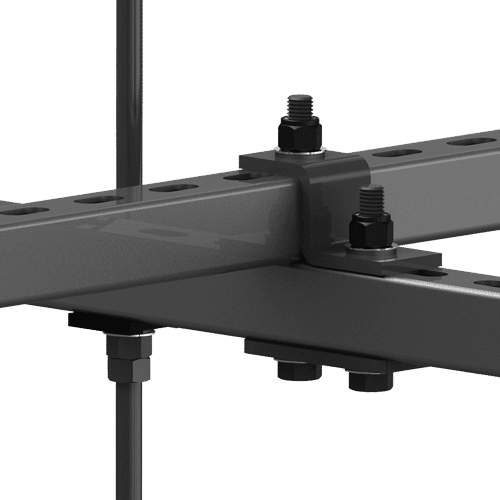

This complete cross-over kit provides all the necessary hardware to clamp two channel strut sections together perpendicularly, one over the other. This kit allows for a fast, secure method of clamping these structural sections together to assemble larger fabrications. Non-loosening and sound isolated hardware is included to assure a firm, long lasting and sound dampened connection.
Features
- Creates 90 degree junction for strut
- Secure and load-rated
- Fast easy installation
- Vibration isolating components
Specifications
| Material: Structural Steel | 1 pc Z Shaped Bracket | |
| Finish: Bright Zinc | 1 pc ½-13 Hex Bolt x 5” Long | |
| Color: Silver | 1 pc ½-13 Hex Bolt x 3 ½” Long | |
| Design Factor: XXXXXXX | 4 pcs Sound Isolation Washers | |
|
WLL: 779 lbs / 354 Kg. (Assembly Rating) |
2 pcs ½-13 Nyloc Hex Nuts | |
| Shipping Weight: 1.6 lbs / .73 Kg. | 1 pc Flat Capture Plate |
