Overview

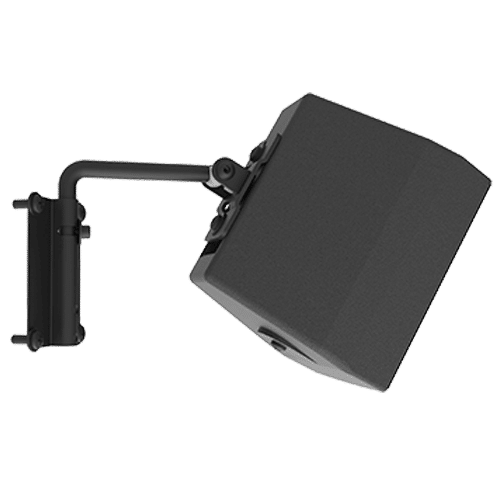

The MultiMount MM-008-BT Indoor Speaker Wall Mount is a zinc plated and powder coated indoor/outdoor speaker mount that attaches loudspeakers, weighing up to 15 lbs., to walls and other structural surfaces.
Independent pan and tilt adjustments help direct sound into the desired area. A separate feature orients speaker cabinets clockwise into either a horizontal or vertical position.
The MultiMount MM-008-BT Indoor Speaker Wall Mount adapts to light weight loudspeakers with standard single and two hole mounting patterns. This makes an ideal mount for use in applications such as restaurants, theme parks, hotel and retail installations.
| Vertical Orientation | Horizontal Orientation | MM-008-BT |
| |
|
|
Features
- Weather resistant for covered outdoor and indoor use
- Separate no-drift pan, tilt and clockwise
adjustments - Mounts to walls other vertical surfaces
- Accommodates standard single and two hole
mounting patterns 2 3/8 & 3”
Specifications
| Material: Steel Alloy Components | 1 pc Wall Plate | |
| Finish: Powder Coat | 1 pc U-Shaped Pivot Bracket | |
| Color: Black | 1 pc Speaker Mounting Plate | |
| Design Factor: 10:1 ratio | 1 pc Support Arm Assy | |
| WLL: 15 lbs. (6.8 Kg) max | 2 pcs Button Screw, 5/16″- X 1/2″ Long | |
| Net WGT: .50 lbs. (.23 Kg) each | 2 pcs Star Washer, 5/16″ | |
| Shipping WGT: 1.2 lbs. (.55 Kg) pair | 1 pc Socket Cap Screw, 1/4-20 X 1/2″ Long | |
| Pack Count: 2 units/carton | 1 pc Flat Washer, 1/4 | |
| 1 pc Flat Head Screw, 1/4-20 X 1/2″ Long | ||
| 1 pc Nyloc Nut, 1/4-20 |
