Overview

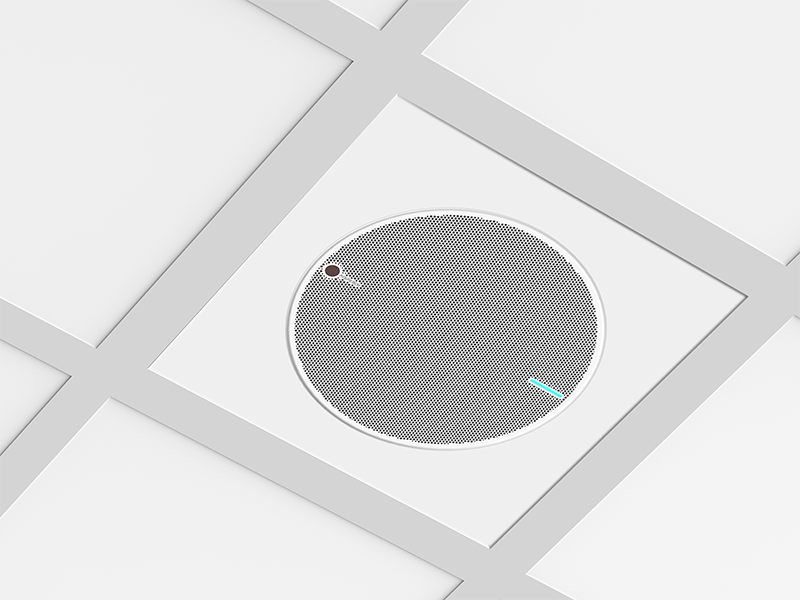

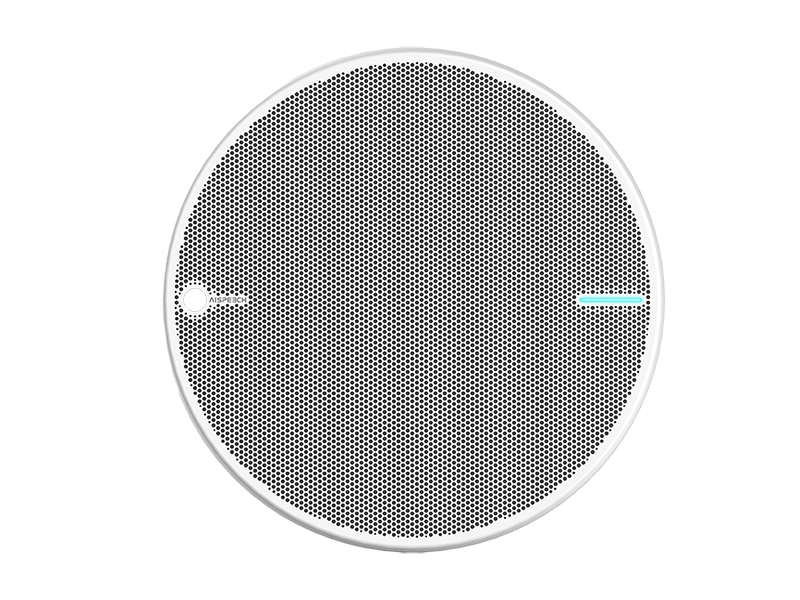

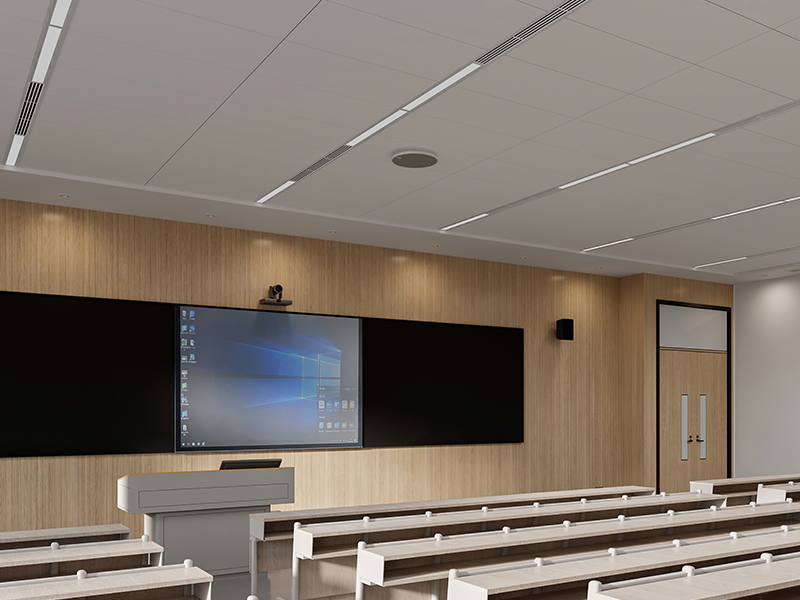

MC08 combines a sleek circular design with versatile deployment options, perfect for classrooms, multi-functional spaces, and small meeting rooms.
MC08 incorporates Dante® digital audio for stable, high-fidelity IP transmission and seamless integration with mainstream networked audio ecosystems. Analog audio interfaces are provided for compatibility with legacy infrastructures, enabling incremental upgrades. Built-in processing includes noise reduction, dereverberation, feedback suppression, automatic gain control, echo cancellation, and full-duplex operation. PoE+ power and flexible mounting options simplify classroom deployment and suit both standard rooms and cost-sensitive educational projects.
Features
Cover the Entire Lectern Area
- MC08 features a 32-mic, 4.5 m effective pickup radius, omnidirectional MEMS array that provides targeted coverage of the lectern/board area, keeping speech clear even as the presenter moves or writes.
Patented AI Noise Reduction Algorithm
- AI noise suppression, AI reverberation cancellation and AI echo cancellation
Flexibly Configurable Audio Pickup Zones
- Featuring 8 customizable pickup zones (amplification/communication/mute) with AI acoustic recognition, delivering precision sound
Adapt Variety Teaching Scenarios
- Sound reinforcement and pickup are simultaneous at In-person and online class
Dante & Analog
- Hybrid Dante and analog I/O simplifies system design while preserving compatibility and easy commissioning with legacy gear.
High Sampling & Fidelity
- High-resolution 48 kHz sampling with 24-bit depth preserves detail and dynamic range for natural, low-distortion audio that enhances intelligibility and immersion.
Specifications
Basic
- Product color: White
- Product size: 445mm*445mm*57.5mm
- Product net weight: <3KG
- Power supply: PoE+ power supply

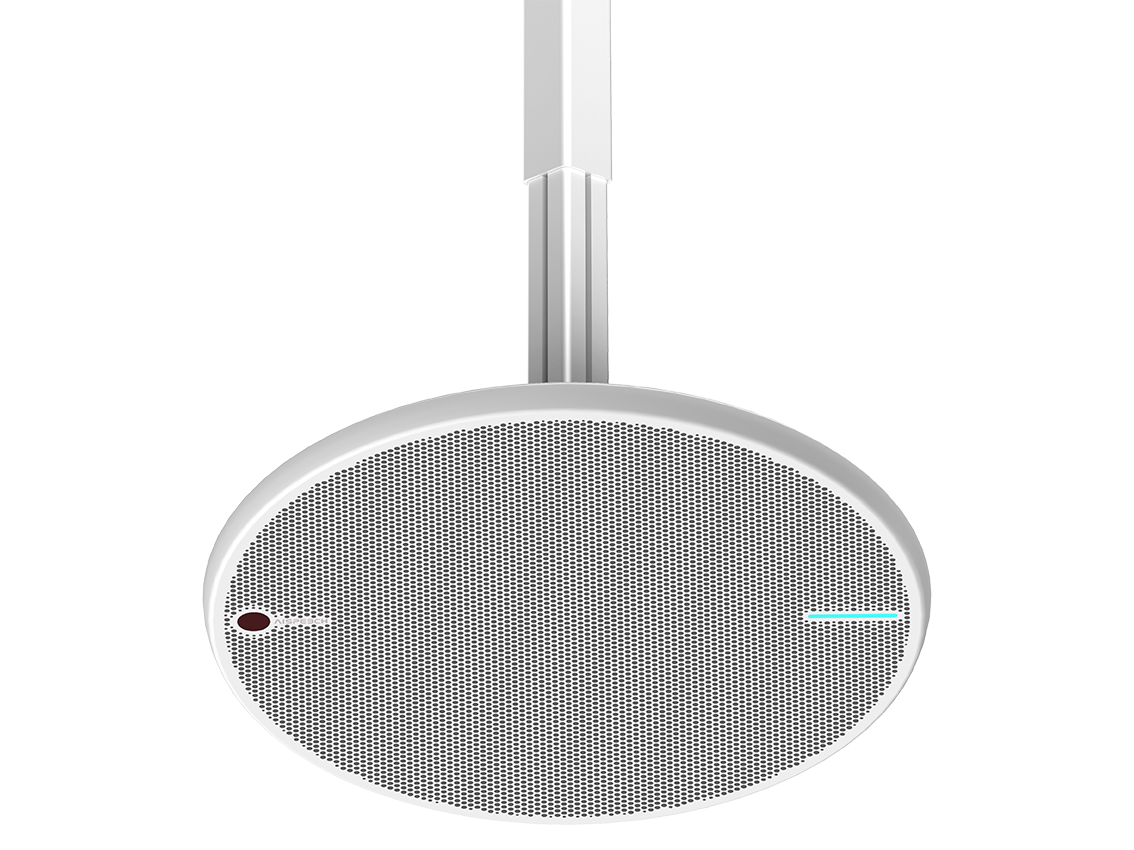

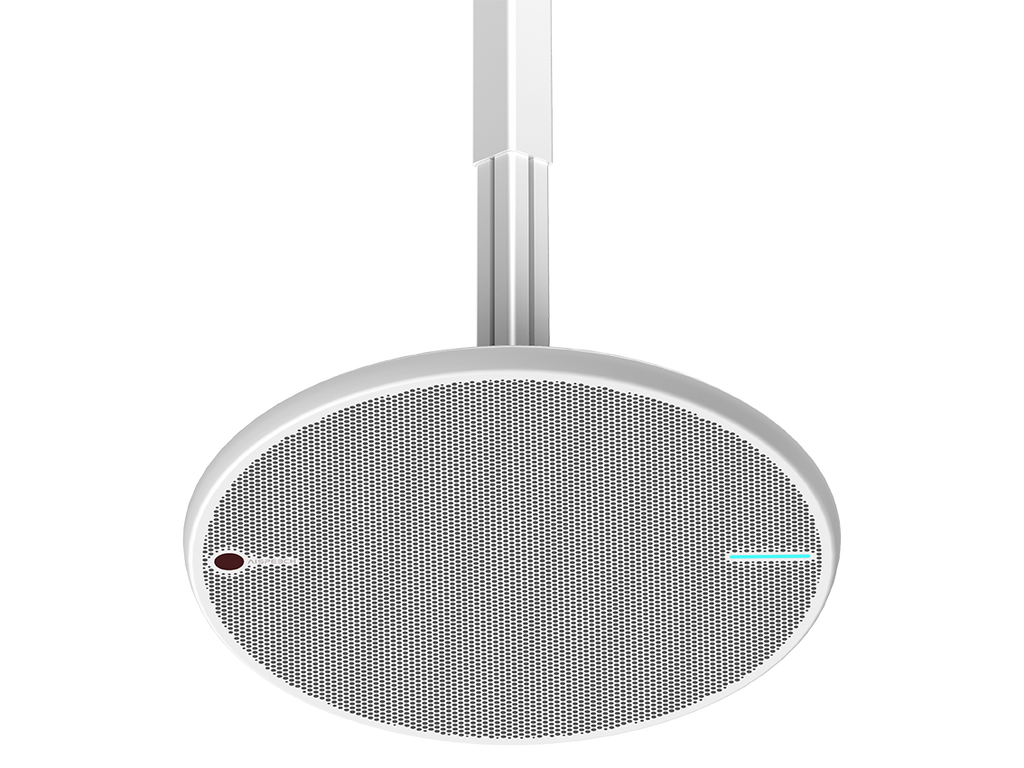

- Installation: Suspension
Audio Performance
- Available pickup zones: 8 (4 Teleconference + 4 Voice Lift)
- Sample rate: 48kHz
- Pickup zone type: Configurable
- Maximum background noise rejection: 35dB
- AI noise reduction: Support
- AI reverb suppression: Support
- AI whistling suppression: Support
- AI echo cancellation: Support
- AI full duplex: Support
- Mix channels: Support
- Smart mix: Support
- Delay: 25ms
Microphone
- Microphone type: 32-mic MEMS array
- Microphone sensitivity: -38dBV / 94dB SPL @1kHz
- Microphone frequency response: 20 Hz ~20,000 Hz
- Dynamic range: 84dB(A)
- Maximum sound pressure level: 104dB SPL
- Signal-to-noise ratio: 73.9dBA
- Device sensitivity: -10.22dBFS/Pa
- Device frequency response: 100 Hz to 15,000 Hz
Dante Audio
- Dante audio: Support
- Remote conference channel: 1
- Local reinforcement channel: 1
Cascade Function
- Cascade limit: Support 2 cascade between MC08, unlimited cascade with MC10 series
Interface
- Dante/PoE network port: 1
- XLR male: 1
- XLR female: 2
- RESET button: 1
Operations
- Working temperature: 0℃~40℃
- Storage temperature: -20℃~+70℃
- Operating/storage humidity: 20 to 95% RH
- Whole power consumption: 12W
Certification
- FCC: Pass
- CE: Pass
