Overview
Proven reliability
for use in houses of worship, conference rooms and theatres

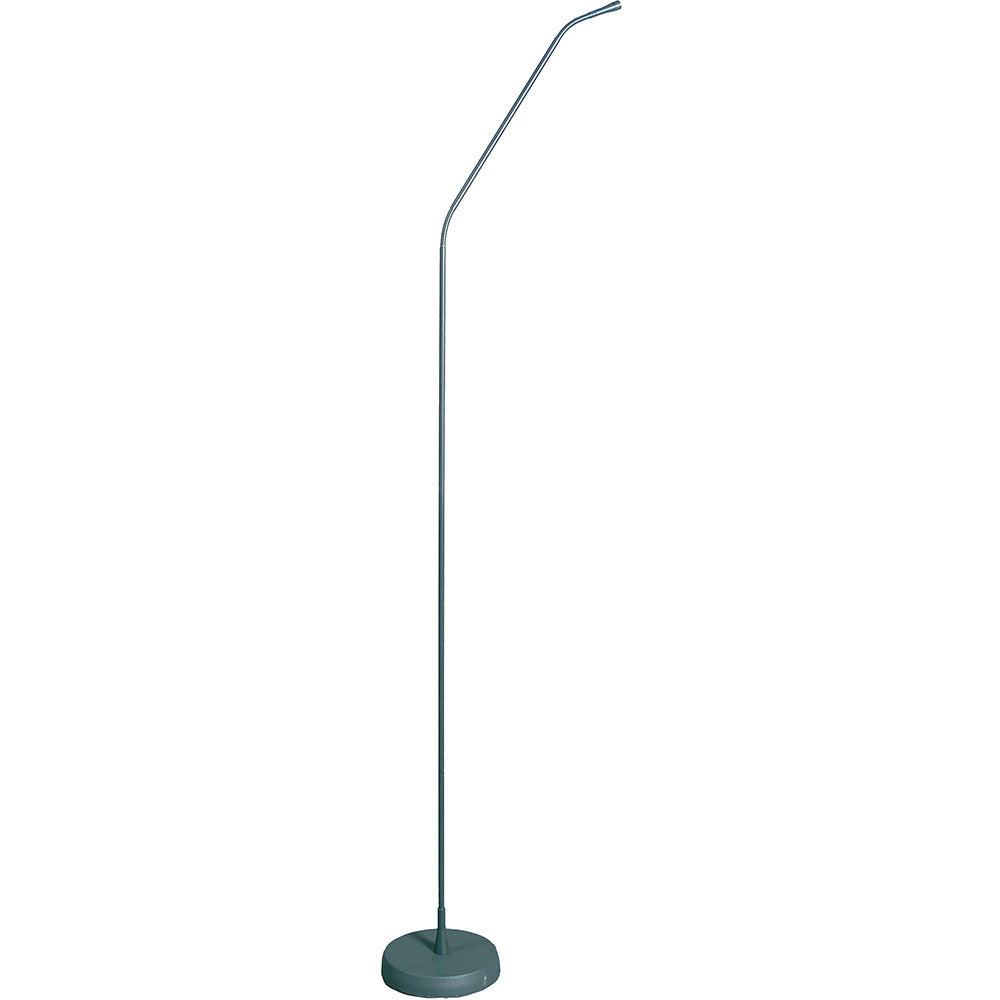

The GN155 is a 155cm (4ft 11in) gooseneck module with a heavy, shock-mounted floor stand, suitable for stand-alone use on stages or placed in front of a lectern. A supplied screw-on extension tube can be used to raise the microphone for tall users and in choir applications. The GN155 has an attached 10m (33ft) cable with XLR phantom power adapter. It is excellently suited for use as a lectern microphone in houses of worship and meeting halls.
The gooseneck module fits all DAM Series capsules, CK31, CK32, CK33, CK47 and CK80, via highly reliable contacts.
Features
Low-profile floor stand gooseneck module - for permanent installations and mobile applications
Extremely rugged gooseneck construction - for an extra-long life of reliability and stability
Quick-absorbing rubber shock mount - for optimum suppression of structure-borne noise
Highly reliable contacts for capsule modules - prevent contact problems and ensure extra-long life
Optional extension tube available - raises the microphone for tall users or choir pickup
Specifications
| General |
| Audio frequency bandwidth | 20 to 20000 Hz |
| Recommended load impedance | 2000 Ohms |
|
| Powering Interface |
| Voltage |
9 to 52 V |
| Current |
3 mA |
|
| Audio Output |
| Type |
Balanced XLR |
| Gender |
Male |
| Contacts |
3-pin |
|
| Design |
|
| Dimensions / Weight |
| Height |
1490 mm |
| Diameter |
20 mm |
|
