Overview
Proven reliability
for use in houses of worship, conference rooms and theatres

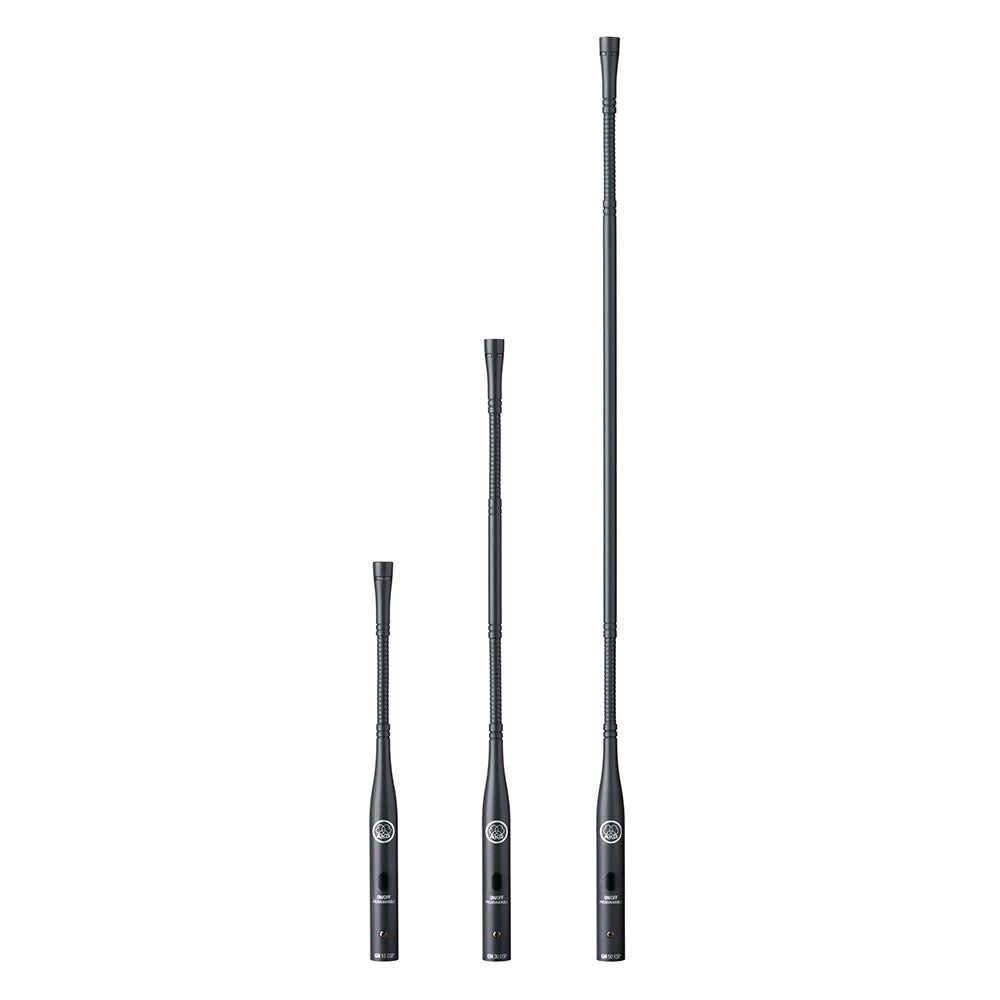

The DAM Series GN ESP gooseneck modules for fixed and mobile installation features a programmable mute switch that can be set to various functions, e.g. on/off, push-to-talk or push-to-mute. Together with the clearly visible LED ring for MIC ON/OFF indication, the GN ESP modules can serve perfectly as a small-discussion system. The GN ESP gooseneck modules are available in three different lengths: 15cm (6in); 30cm (12in) and 50cm (20in). The electronic circuit design provides high immunity to radio-frequency interference.
The gooseneck module fits all DAM Series capsules, CK31, CK32, CK33, CK47 and CK80, via highly reliable contacts.
Features
Programmable on - mute
Specifications
| General |
| Audio frequency bandwidth | 20 to 20000 Hz |
| Recommended load impedance | 2000 Ohms |
|
| Powering Interface |
| Voltage |
9 to 52 V |
| Current |
3.5 mA |
|
| Audio Output |
| Type |
Balanced XLR |
| Gender |
Male |
| Contacts |
3-pin |
|
| Design |
|
| Dimensions / Weight |
|
