Overview
Executive modularity
for use in theatres, houses of worship and conference rooms

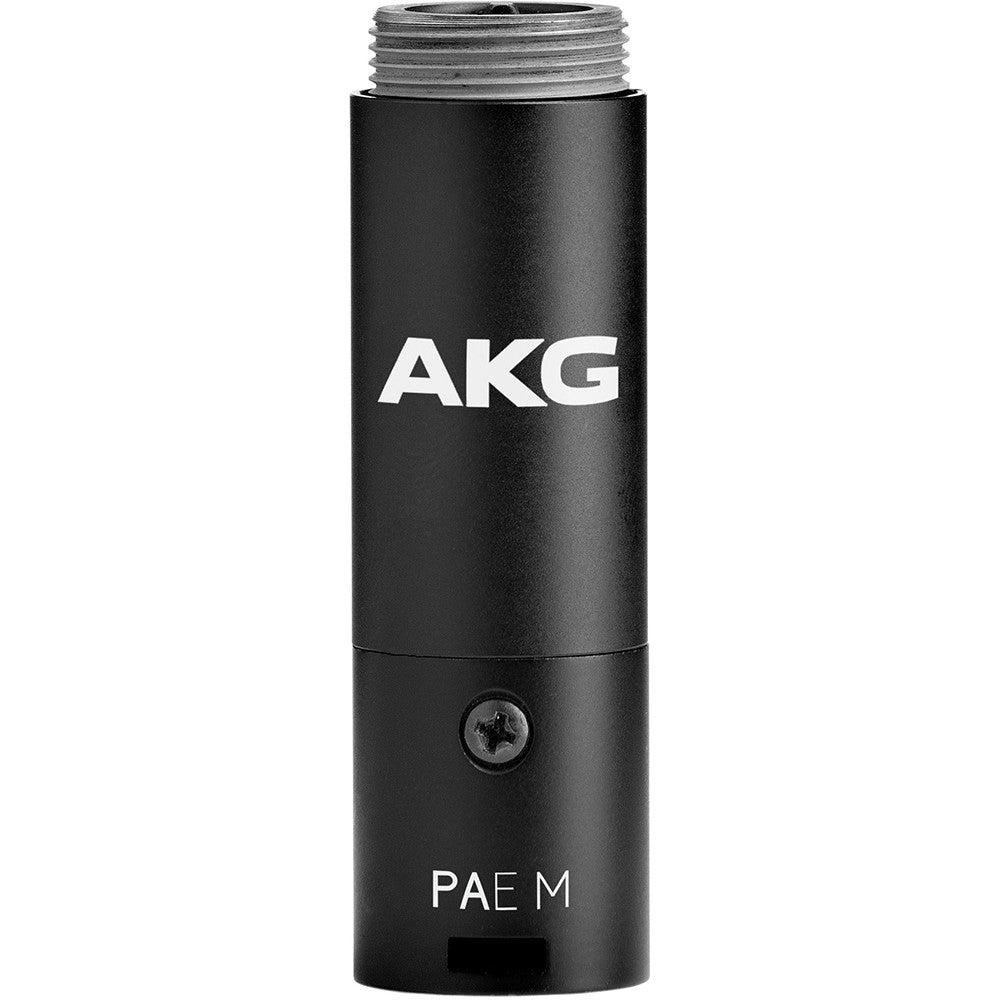

The PAE M reference phantom power module for fixed and mobile installation provides a gold-plated three-pin XLR connector. With its wide voltage range the module will fit most available microphone mixers. The module also features a 250 Hz bass roll off for reduction of structure-borne noise.
The PAE M comes with an integrated system connector with gold- plated contacts. This unique connection securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.
Features
Feeds all DAM+ Series capsules - for highest flexibility
RFi Shield technology - provides high immunity to radio-frequency interference
Accepts 9-52V input - for almost any available mixer inputs
Switchable bass roll off - for reduction of body noise and proximity effect
Highly reliable contacts to mounting modules - prevent contact problems and ensure extra-long life
Specifications
| General |
| Audio frequency bandwidth | 20 to 20000 Hz |
| Bass cut filter | 150 Hz |
| Recommended load impedance | 2000 Ohms |
|
| Powering Interface |
| Voltage |
9 to 52 V |
| Current |
3.5 mA |
|
| Audio Output |
| Type |
Balanced XLR |
| Gender |
Male |
| Contacts |
3-pin |
|
| Dimensions / Weight |
| Height |
65.5 mm |
| Diameter |
19.1 mm |
| Net Weight |
43 g |
|
