Overview
Taking care of business
for conference and house-of-worship applications

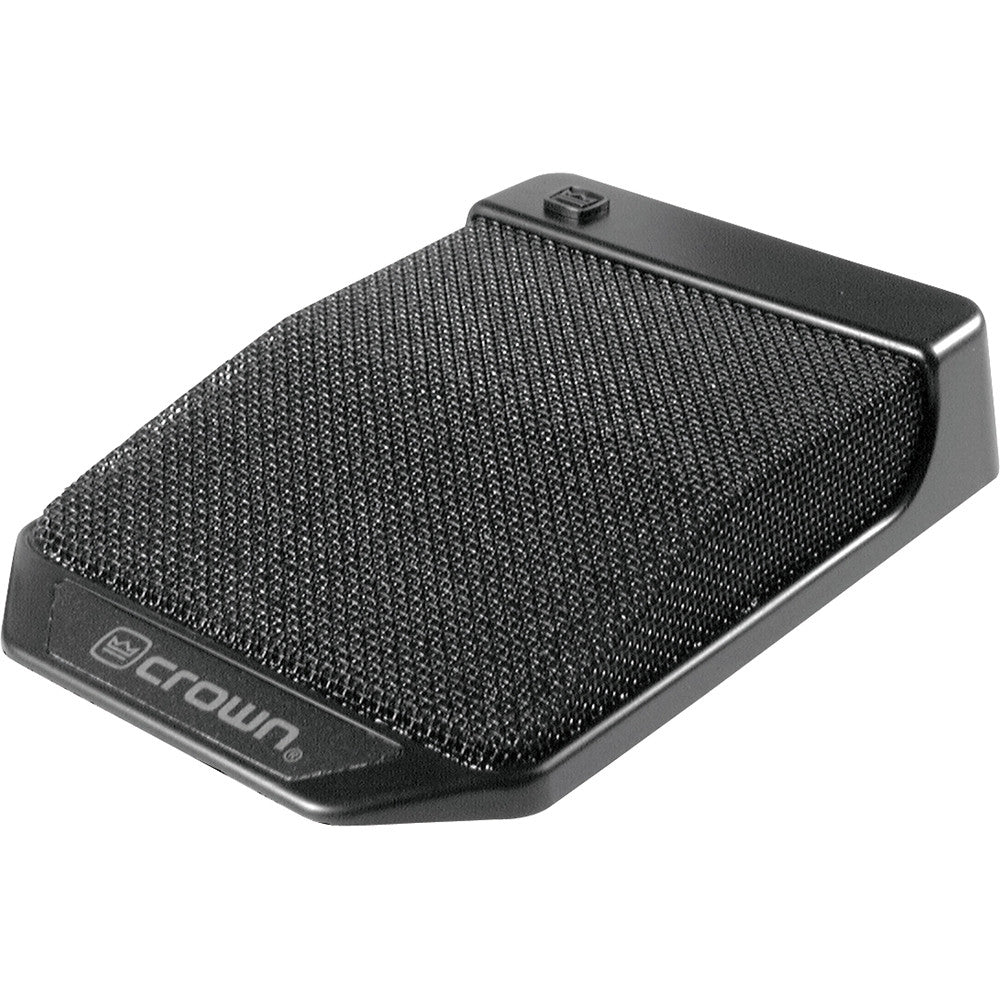

The PCC170 and the PCC170 SW are professional boundary layer microphones with supercardioid polar pattern to minimize background noise and feedback. The microphones are designed for use on boardroom tables or lecterns. Both microphones provide a bass-tilt switch, allowing the user to tailor the low-end response and reduce subsonic noise. The included RFI suppression ensures trouble-free operation even with active cell phones nearby.
The PCC170 SW has a silent-operating programmable membrane switch that can be configured for touch on/off, momentary on or momentary off. For easy installation, both microphones offer an XLR connector and a detachable cable.
Features
Supercardioid polar pattern - offers high gain before feedback
PCC® (Phase Coherent Cardioid®) technology - for optimum speech intelligibility
Three-position bass-tilt switch - for optimized suppression of subsonic noise
Silent-operating on/off switch (PCC170 SW only) - to reduce the number of simultaneously open mics
Detachable cable - easy to install and service
Specifications
| General |
| Audio frequency bandwidth | 50 to 20000 Hz |
| Equivalent noise level | 22 dB-A |
| Sensitivity | 22 mV/Pa |
| Signal to Noise | 72 dB-A |
|
| Powering Interface |
|
| Audio Output |
| Type |
Switchcraft TB3M |
| Gender |
Male |
| Contacts |
3-pin |
|
| Design |
|
| Dimensions / Weight |
| Length |
123 mm |
| Width |
86 mm |
| Height |
23 mm |
|
