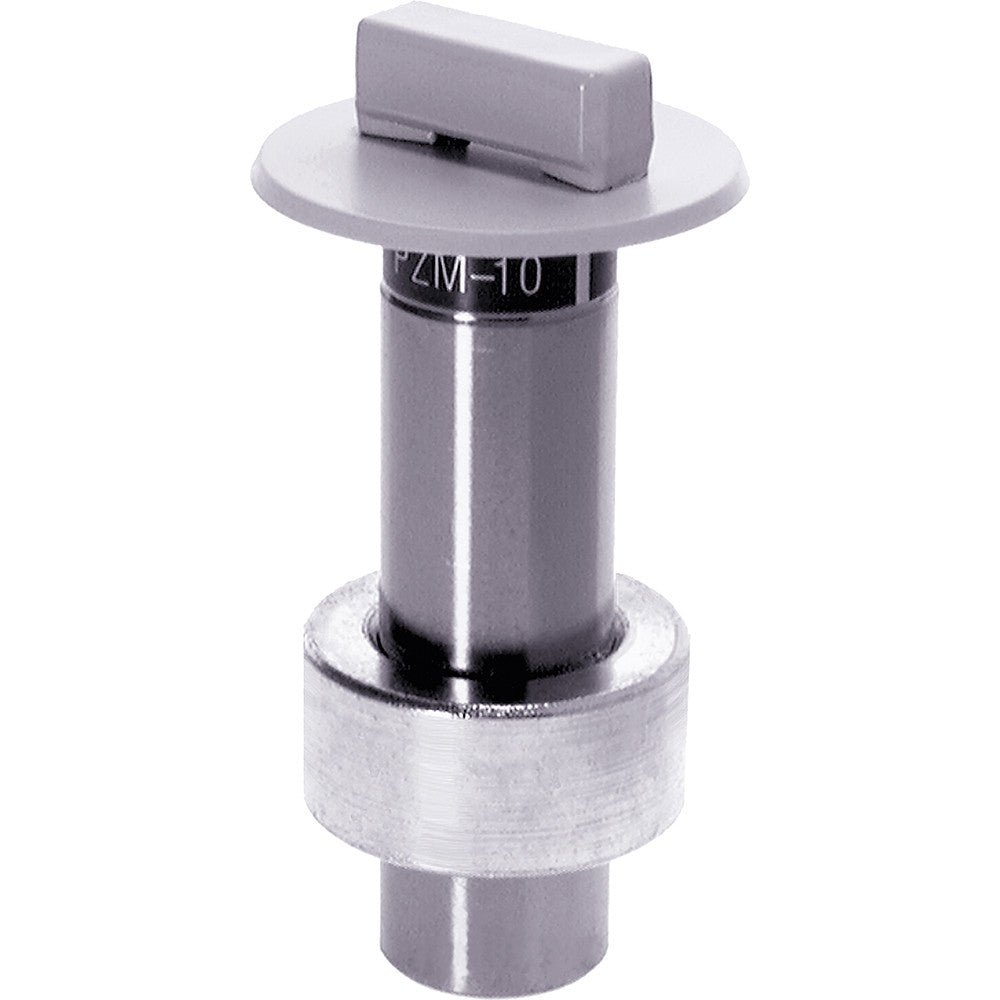

AKG PZM10
  • AKG PZM10
AKG PZM10

AKG PZM10

MSRP: $255.00
MAP: $255.00

Low profile boundary layer microphone

SKU: AKG-3328H00010

Only Approved Dealers can purchase.
Please Sign In.

or Become A Dealer to gain access today.

Overview

Inconspicuous assistant

for ticket-window, courtroom and security applications

The PZM10 and PZM10 LL, part of the Pressure Zone Microphone® line, are designed for security, surveillance, and conference-table use. The special housing design allows the microphones to be mounted into tables, walls or ceilings easily and inconspicuously.

Using Pressure Zone Microphone® technology, the PZM10 and PZM10 LL are highly sensitive and deliver a wide and smooth frequency response. Thus the PZM10 and PZM10 LL are characterized by excellent clarity and a consistent pickup anywhere around the mic.

Features

  • Hemispherical polar pattern - for clear, intelligible pickup of speech
  • Low-profile, cylindrical design - perfect for wall or tabletop installation
  • Choice of mic level output or line-level output (PZM10 LL) - for optimized level matching
  • PZM10 powered by 12V - 48V phantom power, XLR connector - connects to all standard mixers with phantom power out
  • PZM10 LL powered by 12V - 24V/DC, unterminated wires - for the most flexible connectivity

    • Specifications

    General
    Audio frequency bandwidth 80 to 20000 Hz
    Equivalent noise level 26 dB-A
    Sensitivity 2.5 mV/Pa
    Signal to Noise 68 dB-A
    Recommended load impedance 2000 Ohms
    Powering Interface
    Voltage 12 to 48 V
    Audio Output
    Type Balanced XLR
    Gender Male
    Contacts 3-pin
    Design
    Finish off-white
    Dimensions / Weight
    Height 72 mm
    Diameter 39 mm
    Net Weight 74 g
