Overview:

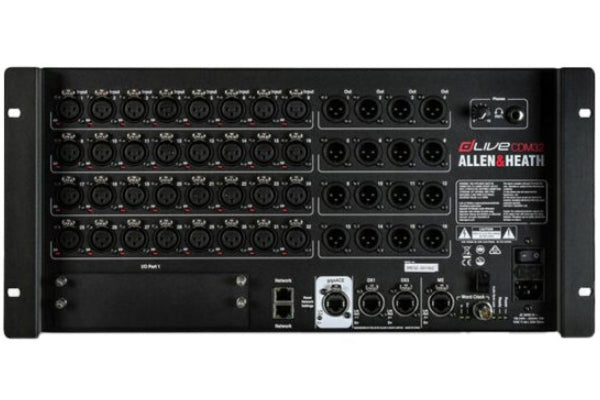

The Allen & Heath dLive CDM32 RUFX is a C-Class MixRack that serves as the processing core of a dLive mixing system. Featuring 32 mic/line inputs, 16 XLR outputs, Allen & Heath's XCVI 96kHz processing engine, and a pre-installed RackUltra FX card, the CDM32 RUFX delivers 128 input channels, 64 mix outputs, configurable bus architecture, and class-leading 0.7ms latency for live sound, broadcast, installation, and touring applications.
Features:
XCVI 96kHz FPGA processing engine
32 recallable mic preamps
16 analog outputs
RackUltra FX card pre-installed
128 input channels
64 mix outputs
64-bus architecture
0.7 ms system latency
96-bit accumulator processing
Active PAD microphone preamps
DX system expansion support
Compatible with dLive surfaces
Specs:
Product Type: Digital MixRack / Stage Box
Series: dLive C-Class
Mic/Line Inputs: 32
Line Outputs: 16
Mix Engine: XCVI Core
Input Channels: 128
Mix Outputs: 64
Bus Architecture: 64-Bus Configurable
Sampling Rate: 96 kHz
Latency: 0.7 ms
I/O Port: 1 x 128 Channel I/O Port
DX Expansion Ports: 2
Network Ports: 2
Word Clock: BNC I/O
RackUltra FX Card: Included
ADC: 24-Bit Delta-Sigma
DAC: 24-Bit Delta-Sigma
Maximum Power Consumption: 175 W
Power Requirement: 100-240V AC, 50/60 Hz
