Overview
dLive CTi1500 Compact Touring. Re-engineered & Ready for Takeoff.
Since its launch, C1500 has become a firm favourite in compact touring, particularly where size and weight need to be carefully balanced against audio requirements.

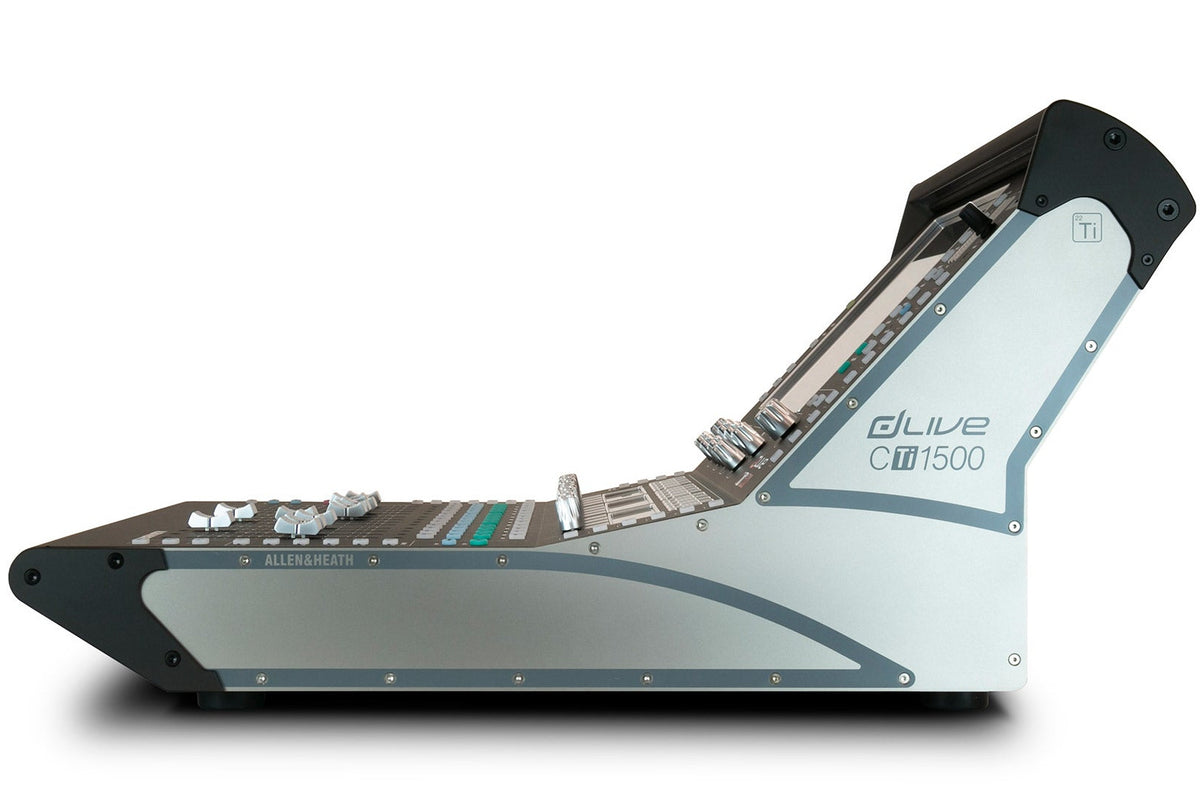

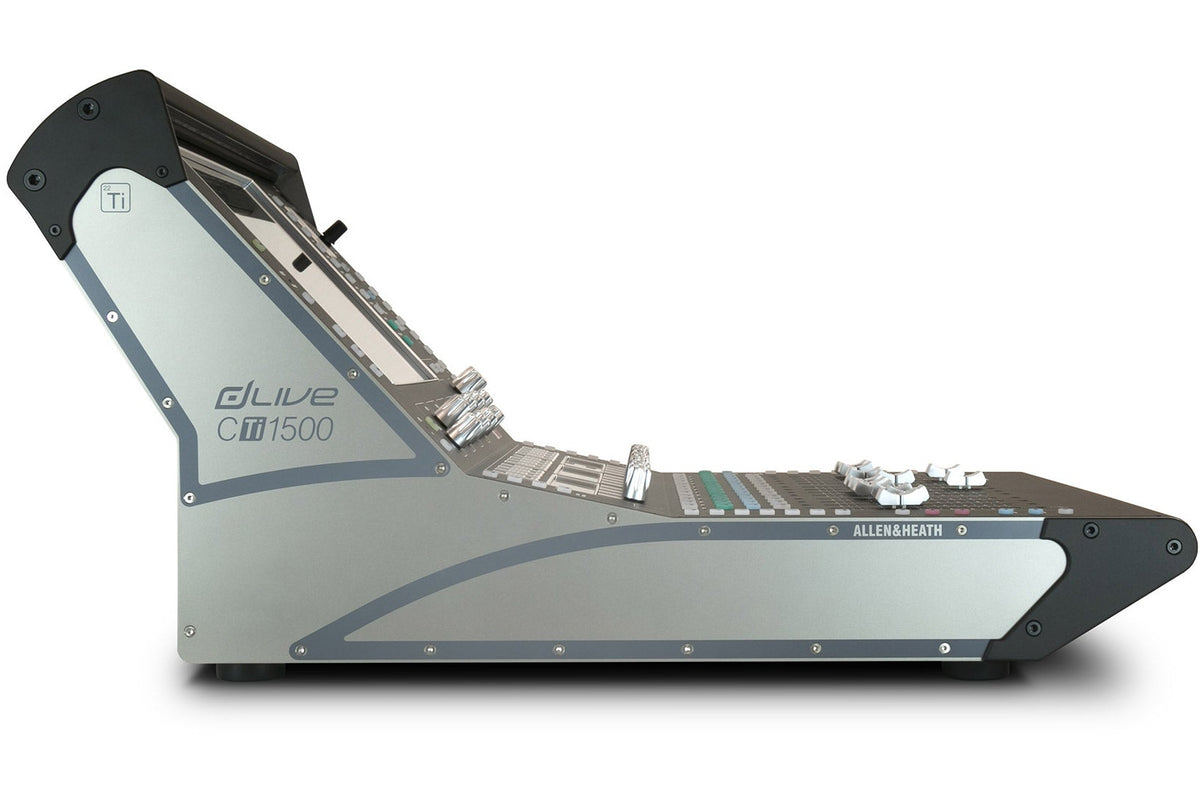

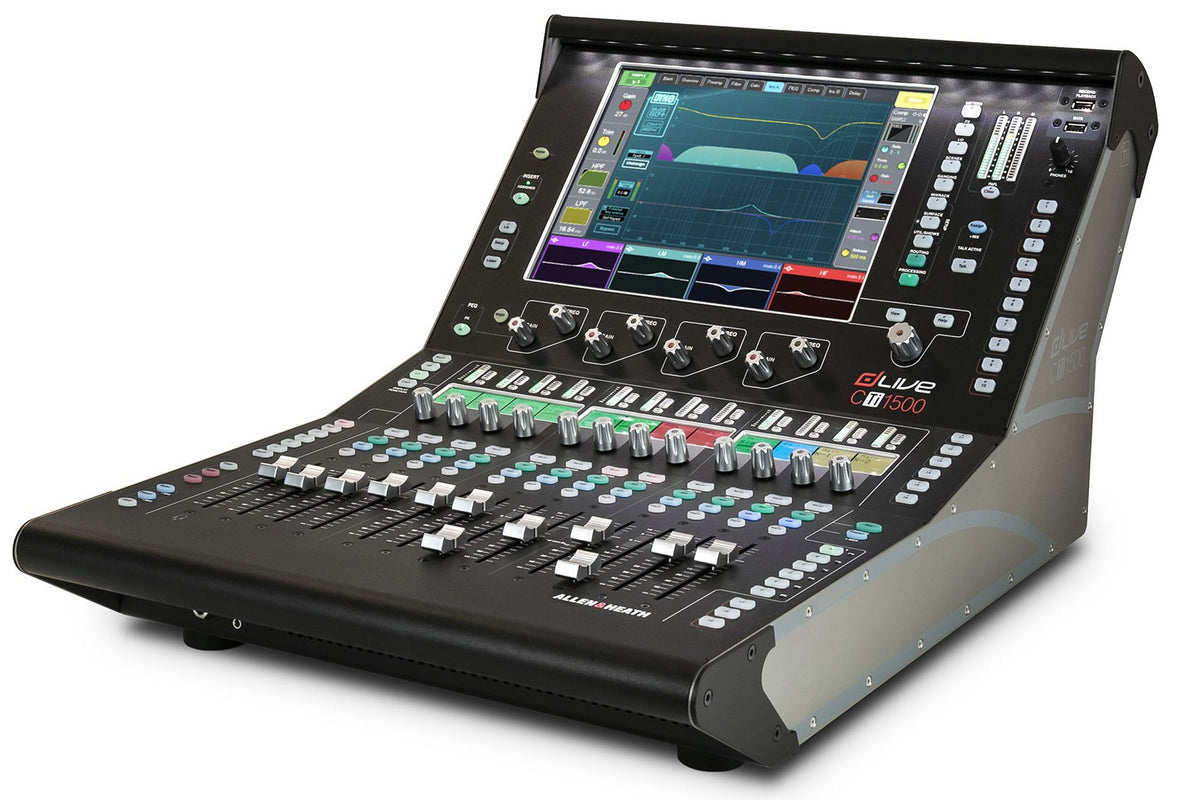

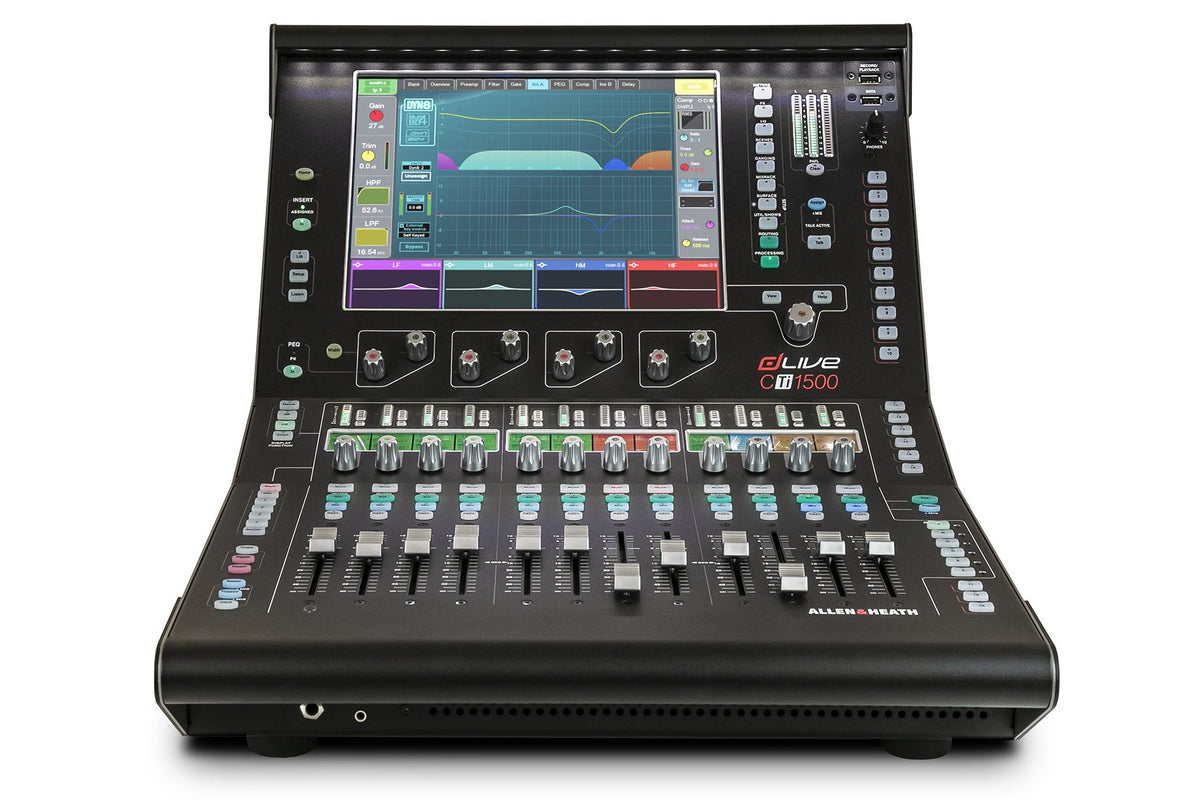

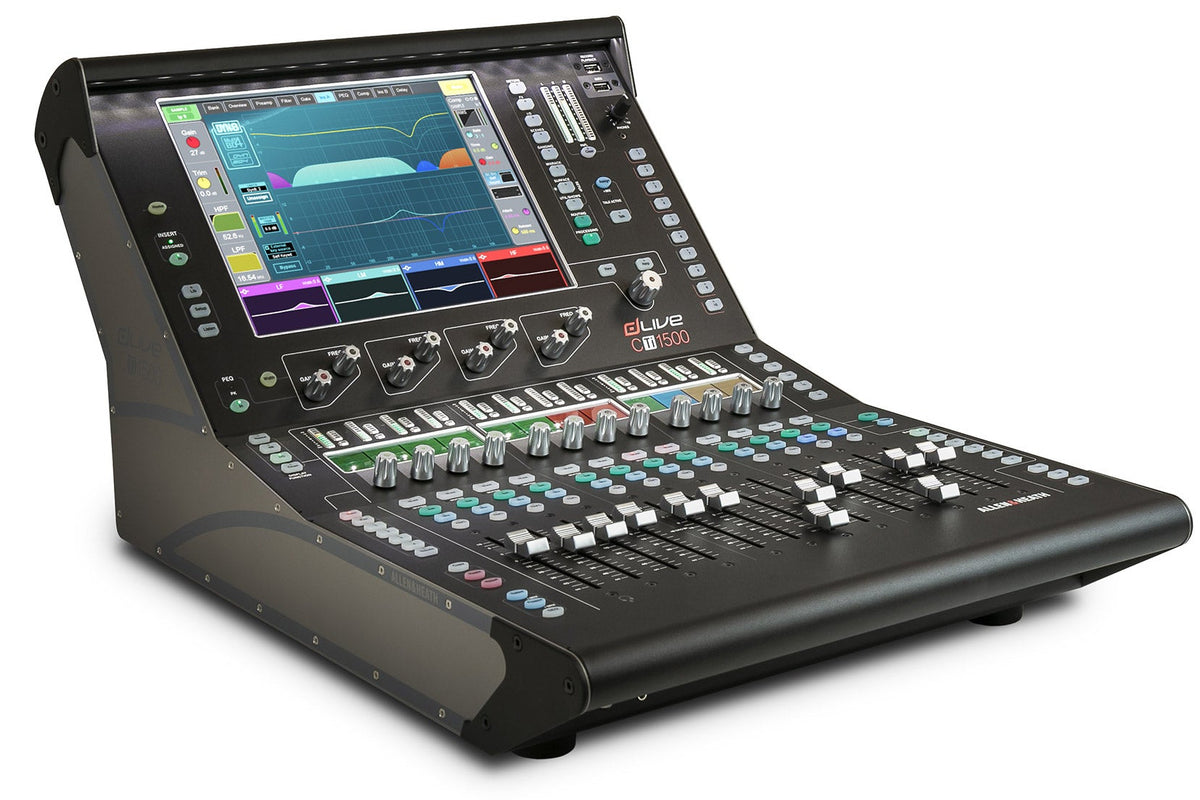

CTi1500 takes this no-compromise compact concept even further. On the outside, the side trims have been replaced by Titanium panels, lightweight, super-strong and a first in touring mixer design. The rear and base panels have also been re-engineered to cut the weight but retain strength. Internally the weight loss continues, with new alloy metalwork throughout. The front panel remains largely the same as a C1500, providing the familiar dLive feel, but redesigned to replace the armrest with sleek steel curves.
Loaded with an I/O card of your choice, and snugly wrapped in its dust cover, CTi1500 can fly under 23kg / 50lbs in a custom flight case.
Features
- 12 faders, 6 layers
- Fully assignable layout – up to 72 fader strips
- Harmony UI integrates screen and wrap-around controls
- 12” capacitive touchscreen
- Gesture control – pinch, swipe, drag ‘n drop
- Dedicated multi-mode EQ view
- Configurable widget areas for Scenes, meters, FX and more
- 19 assignable SoftKeys
- Engineer’s Wedge and IEM fader strips
- Comprehensive multipoint metering
- Daylight visibility
- USB stereo recording and playback

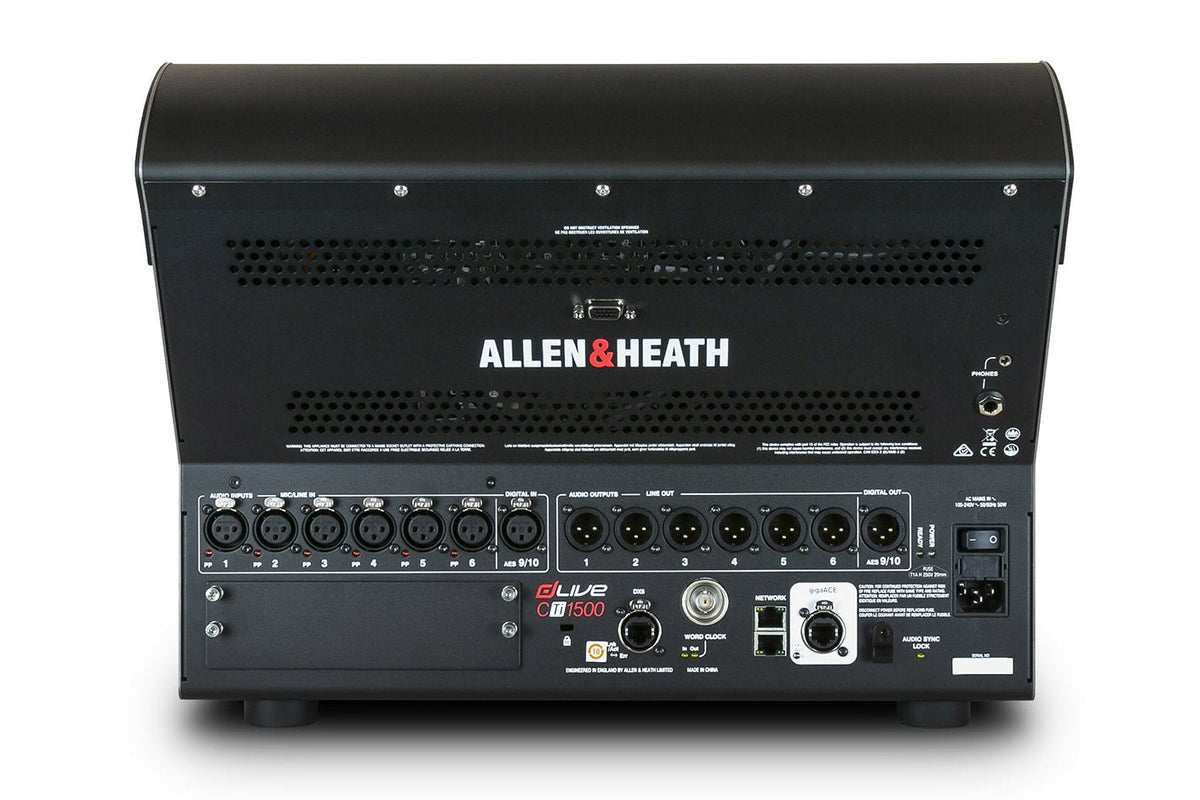

- 6 XLR mic/line in, 6 XLR line out
- 1 digital st AES3 in, 1 digital st AES3 out
- Connection hub
- 1 x GigaACE gigabit link to MixRack
- 1 x DX link for I/O expansion
- 1 x I/O Port – 128 ch 96 kHz
- 2 x Network ports
- Wordclock BNC I/O
- Video output
Specifications
Inputs
- Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
- Mic/Line Preamp: Fully recallable
- Input Sensitivity: -60 to +15dBu
- Analogue Gain: +5 to +60dB, 1dB steps
- Pad: -20dB Active PAD
- Maximum Input Level: +30dBu (PAD in)
- Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
- Mic EIN: -127dB with 150Ω source
- Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V
Digital Inputs
- AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
- SRC range 32k - 192kHz, with bypass option
Outputs
- Analogue XLR Outputs: Balanced, Relay protected
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -92dBu (muted, 20-20kHz)
- Residual Output Noise: -90dBu (muted, 20-40kHz)
Digital Outputs
- AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
- 96kHz sampling rate, switchable to 48kHz, 44.1kHz
Dimensions and Weights
- CTi1500 (Width x Depth x Height x Weight): 440 x 644 x 337mm (17.4" x 25.4" x 13.27") x 11.5kg (25.4lbs)
- CTi1500 - boxed (Width x Depth x Height x Weight): 820 x 655 x 470mm (32.3 x 25.8 x 18.5") x 20kg (44lbs)
System
- Measured balanced XLR in to XLR out, 20-20kHz, minimum Gain, Pad out
- Dynamic Range: 110dB
- System Signal to Noise: -92dB
- Frequency Response: 20Hz - 30kHz +0/-0.8dB
- THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
- Headroom: +18dB
- Internal operating Level: 0dBu
- dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
- Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
- Meter Peak indication: -3dBFS (+19dBu at XLR out)
- Sampling Rate: 96kHz +/- 20 PPM
- ADC: 24-bit Delta-Sigma
- DAC: 24-bit Delta-Sigma
- Latency: 0.7 ms (MixRack XLR in to XLR out, Input to Mix)
- + 5 samples, Surface to Mixrack (GigaACE hop)
- + 8 samples, DX32 to Mixrack (DX hop)
- Operating Temperature Range: 0 deg C to 35 deg C (32 deg F to 95 deg F)
- Mains Power: 100-240V AC, 50-60Hz, 110W max
- USB Audio playback: Mono/stereo .WAV files, 16/24bit, 44.1/48/96kHz
- USB Audio recording: Stereo .WAV files, 24bit 96kHz
