Overview:

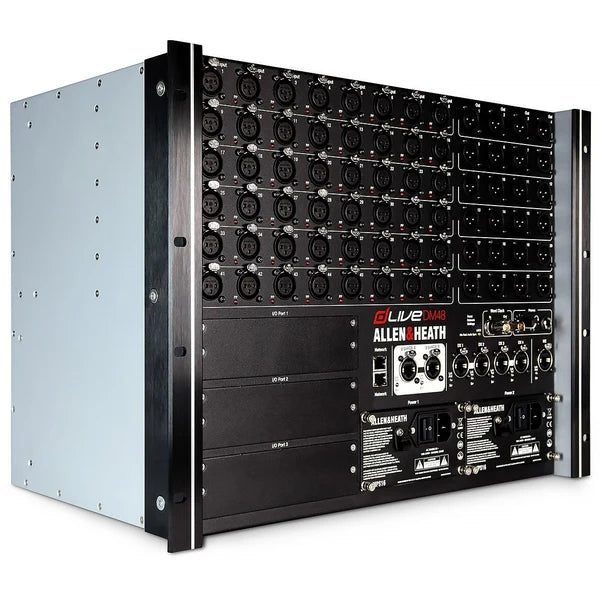

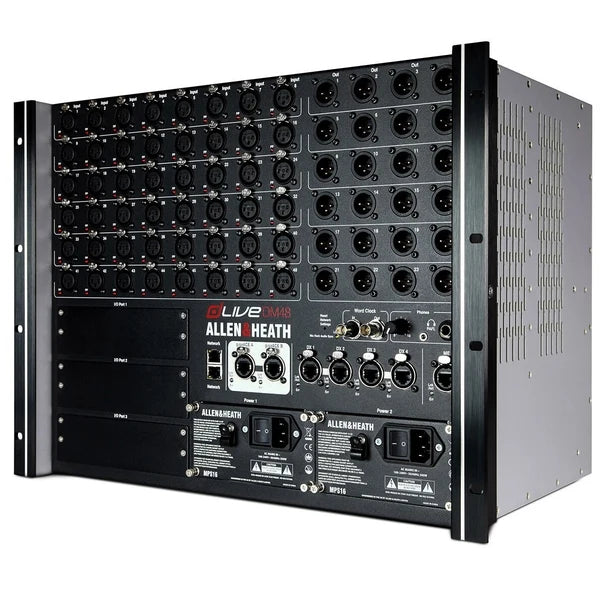

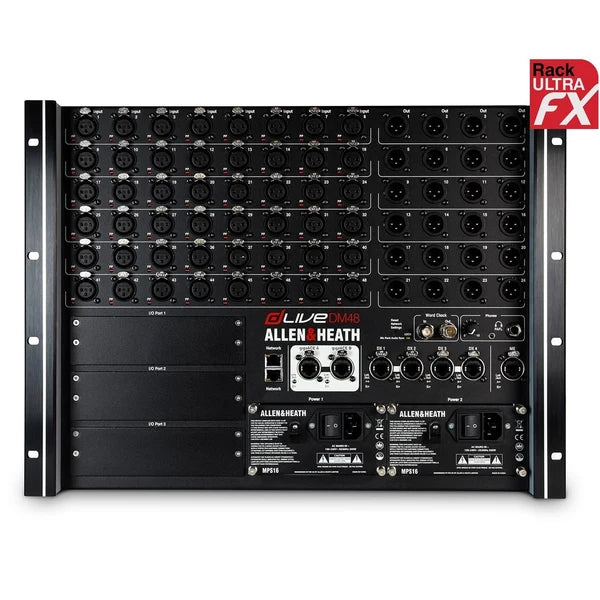

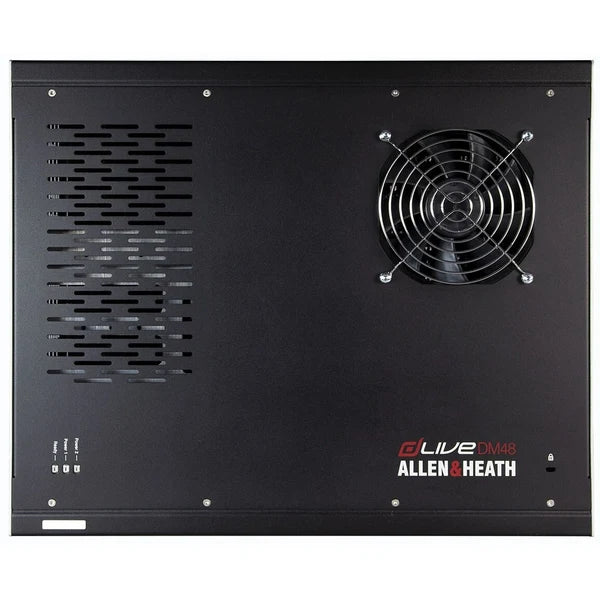

The Allen & Heath dLive DM48 RUFX is an S-Class MixRack designed for professional touring, broadcast, and fixed-installation applications. Featuring 48 mic/line inputs, 24 line outputs, dual redundant audio connections, Allen & Heath's XCVI 96kHz FPGA processing engine, and a pre-installed RackUltra FX card, the DM48 RUFX delivers 128 input channels, 64 mix outputs, configurable bus architecture, and ultra-low 0.7 ms latency.
Features:
XCVI 96kHz FPGA processing engine
48 recallable mic preamps
24 analog outputs
RackUltra FX card pre-installed
128 input channels
64 mix outputs
64-bus architecture
0.7 ms system latency
Dual redundant Surface links
Dual redundant DX links
96-bit accumulator processing
DEEP embedded processing
Supports up to 4 dLive surfaces
Dual redundant hot-swappable power supplies
Specs:
Product Type: Digital MixRack / Stage Box
Series: dLive S-Class
Mic/Line Inputs: 48
Line Outputs: 24
Mix Engine: XCVI 160x64 FPGA Core
Input Channels: 128
Mix Outputs: 64
Bus Architecture: 64-Bus Configurable
Sampling Rate: 96 kHz
Latency: 0.7 ms
I/O Ports: 3 x 128-Channel I/O Ports
Surface Links: Dual Redundant gigaACE
DX Expansion Ports: 2 Redundant DX Links
Network Ports: 2
Word Clock: BNC I/O
RackUltra FX Card: Included
Dedicated ME Port: 48 kHz ME Personal Mixing Port
Power Supply: Dual Redundant Hot-Swappable PSU
Shipping Weight: 45.7 lb
Shipping Dimensions: 23.3 x 19.8 x 19.0 in
