Overview:

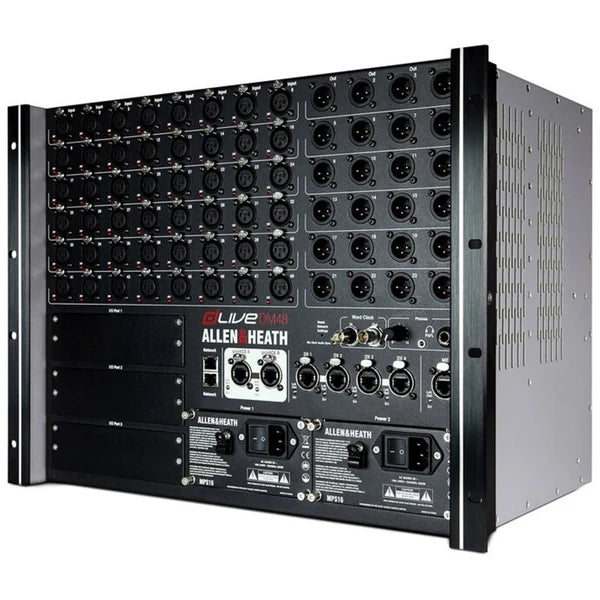

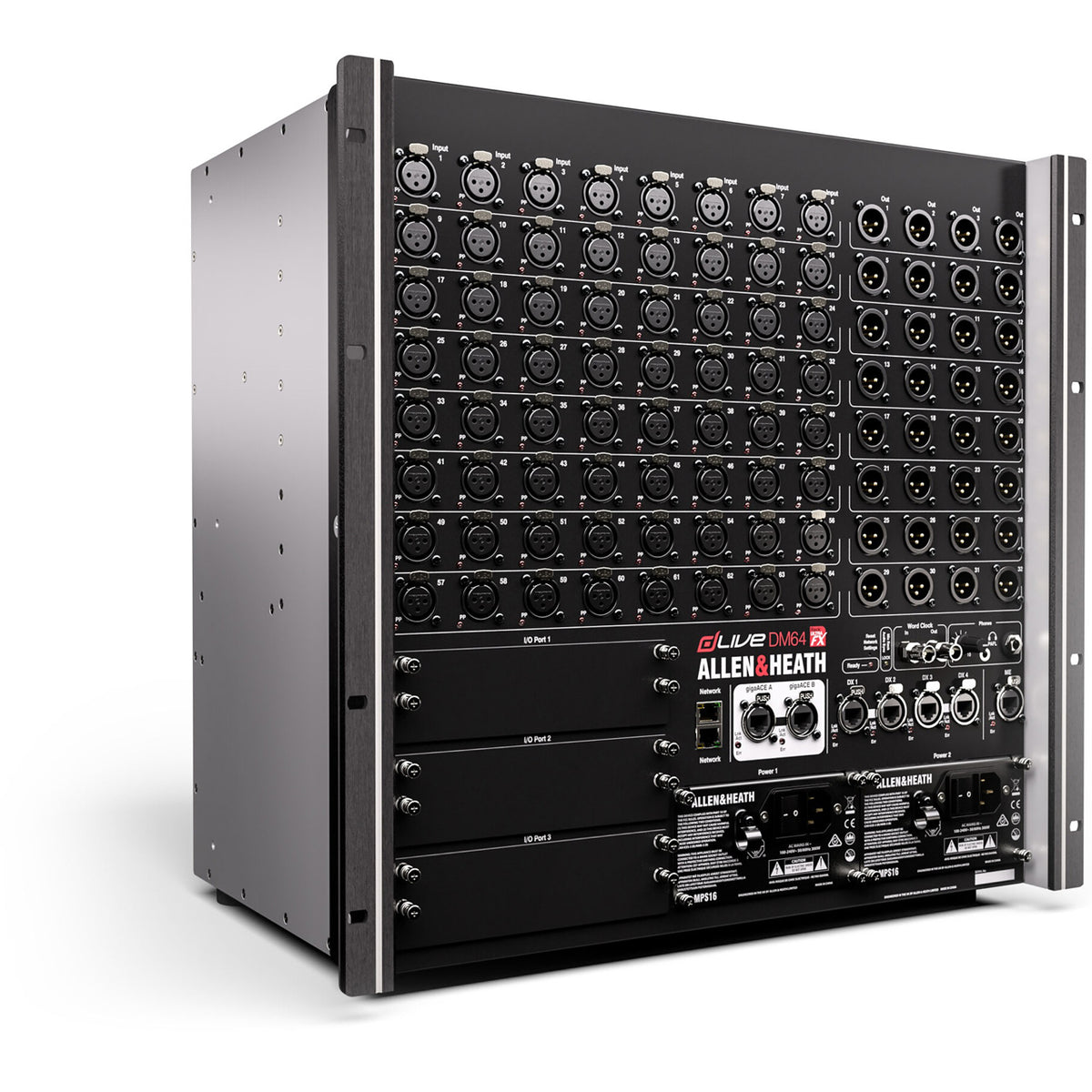

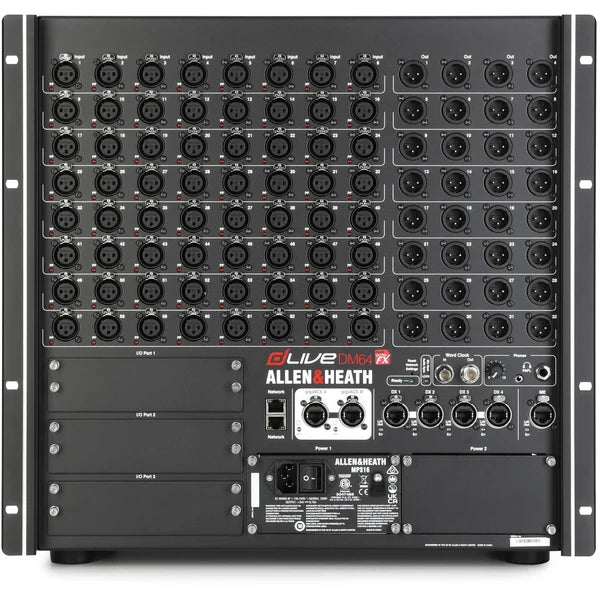

The Allen & Heath dLive DM64 RUFX is the flagship S-Class MixRack for the dLive ecosystem, featuring 64 mic/line inputs, 32 line outputs, dual redundant audio connections, XCVI 96kHz FPGA processing, and a pre-installed RackUltra FX card. Designed for large-scale touring, broadcast, house of worship, and fixed-installation applications, it provides 128 input channels, 64 mix outputs, configurable 64-bus architecture, and ultra-low 0.7 ms latency.
Features:
XCVI 96kHz FPGA processing engine
64 recallable mic preamps
32 analog outputs
RackUltra FX card pre-installed
128 input channels
64 mix outputs
64-bus architecture
0.7 ms system latency
Dual redundant Surface links
Dual redundant DX links
96-bit accumulator processing
DEEP embedded processing
Automatic Mic Mixer (AMM)
Supports up to 4 dLive surfaces
Dual redundant hot-swappable power supplies
Specs:
Product Type: Digital MixRack / Stage Box
Series: dLive S-Class
Mic/Line Inputs: 64
Line Outputs: 32
Mix Engine: XCVI 160x64 FPGA Core
Input Channels: 128
Mix Outputs: 64
Bus Architecture: 64-Bus Configurable
Sampling Rate: 96 kHz
Latency: 0.7 ms
I/O Ports: 3 x 128-Channel I/O Ports
Surface Links: Dual Redundant gigaACE
DX Expansion Ports: 2 Redundant DX Links
Network Ports: 2
Word Clock: BNC I/O
RackUltra FX Card: Included
Dedicated ME Port: 48 kHz ME Personal Mixing Port
Power Supply: Dual Redundant Hot-Swappable PSU
DCAs: 24
Rack FX: 16 Stereo FX Engines
