Overview:

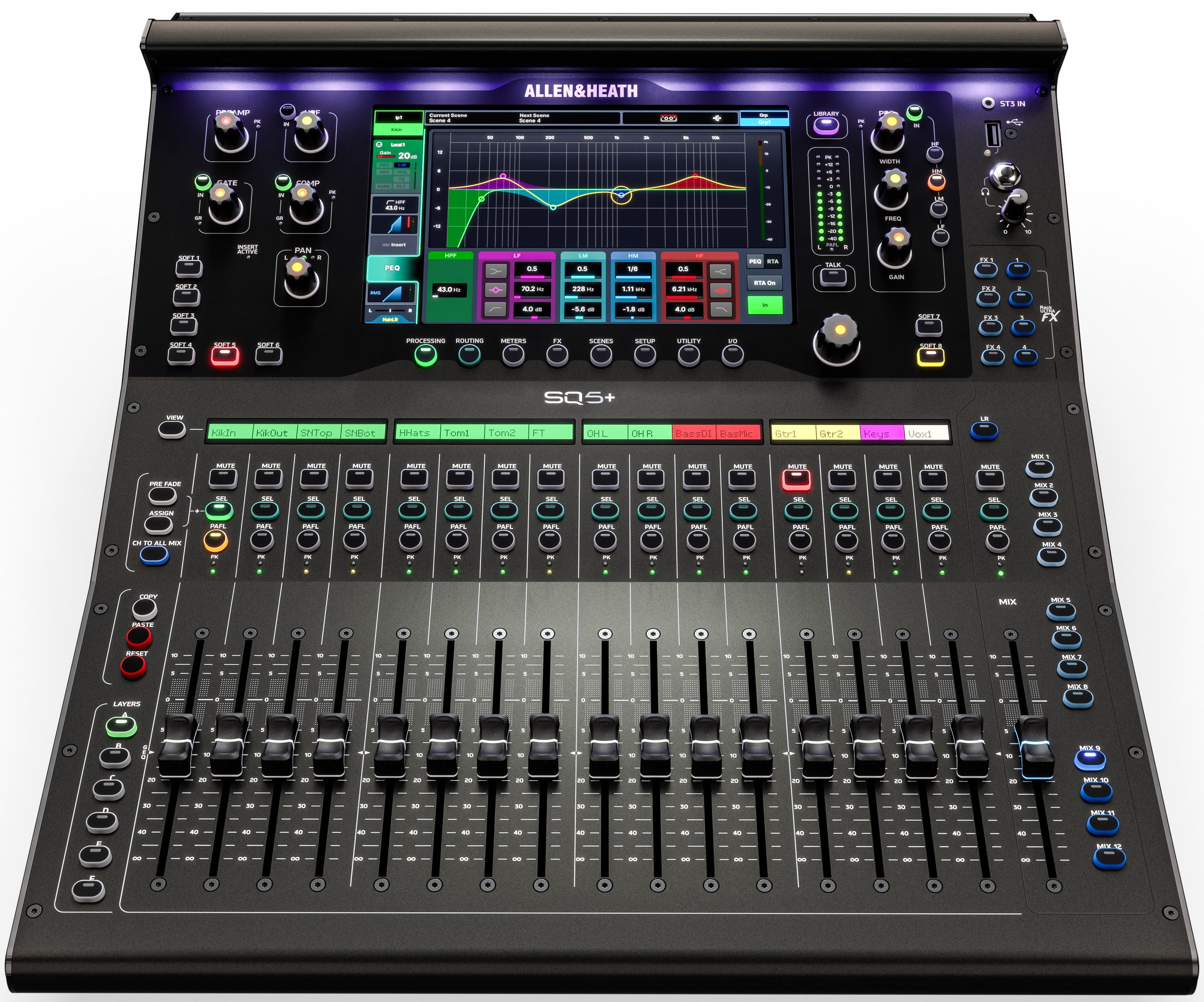

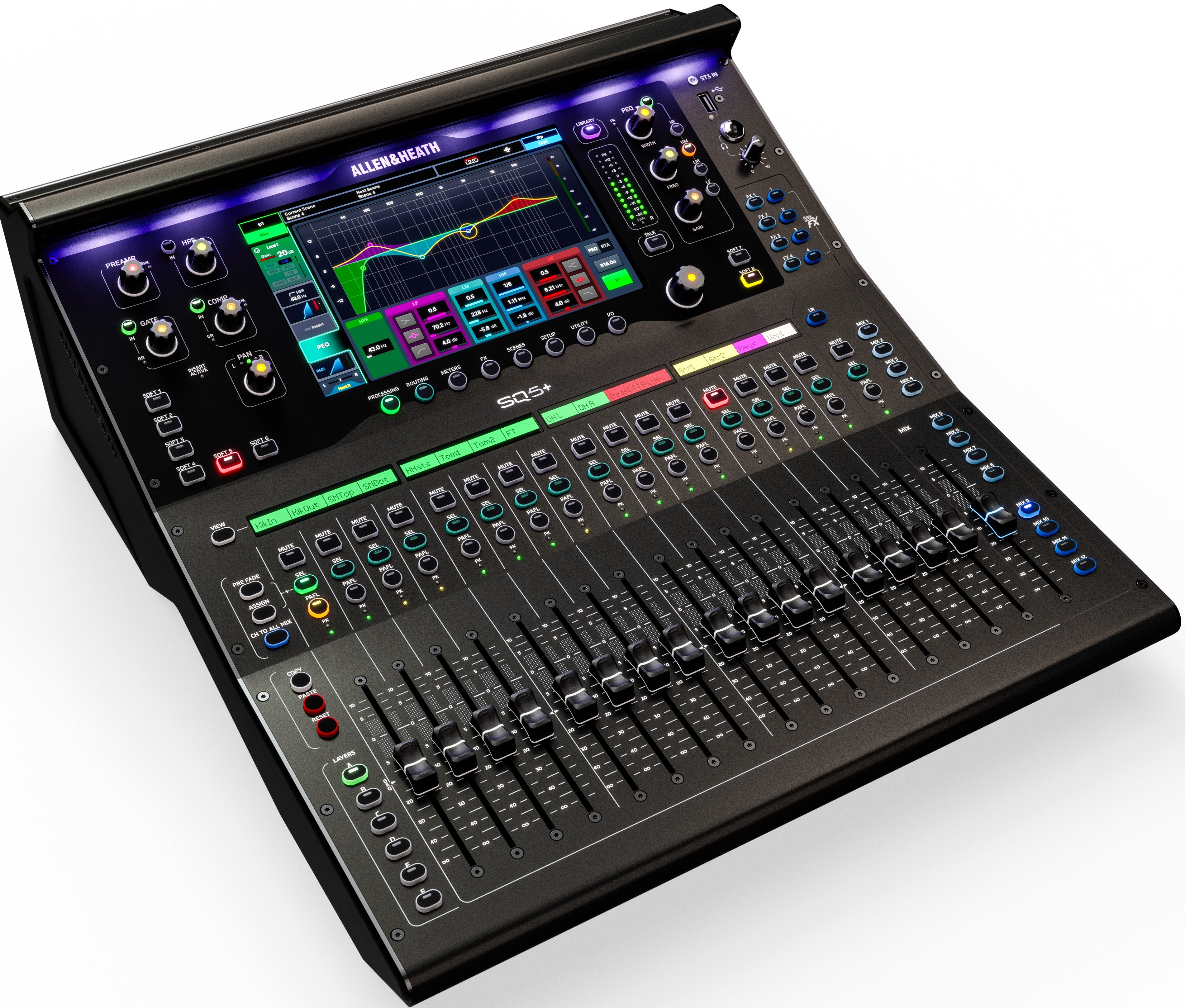

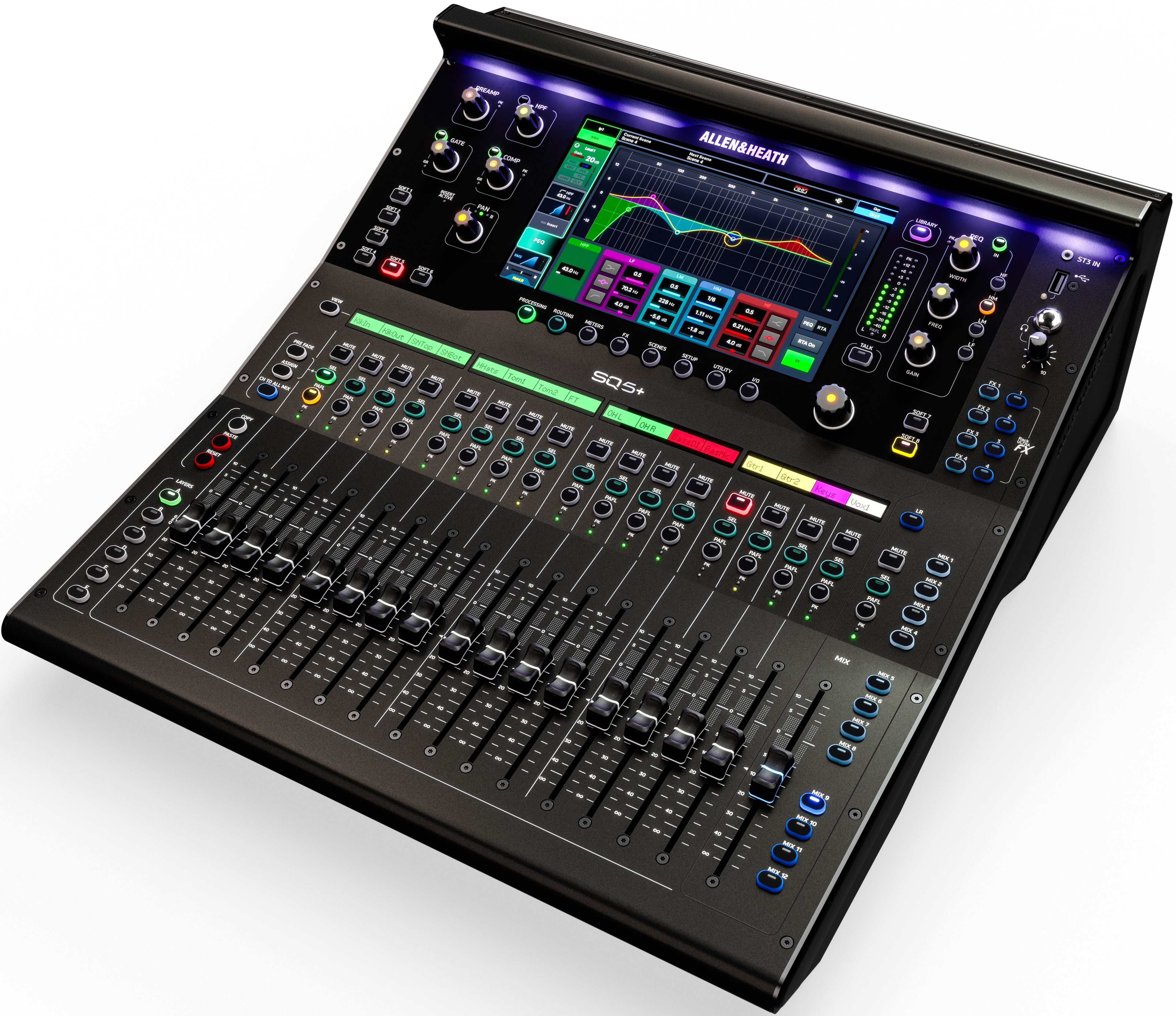

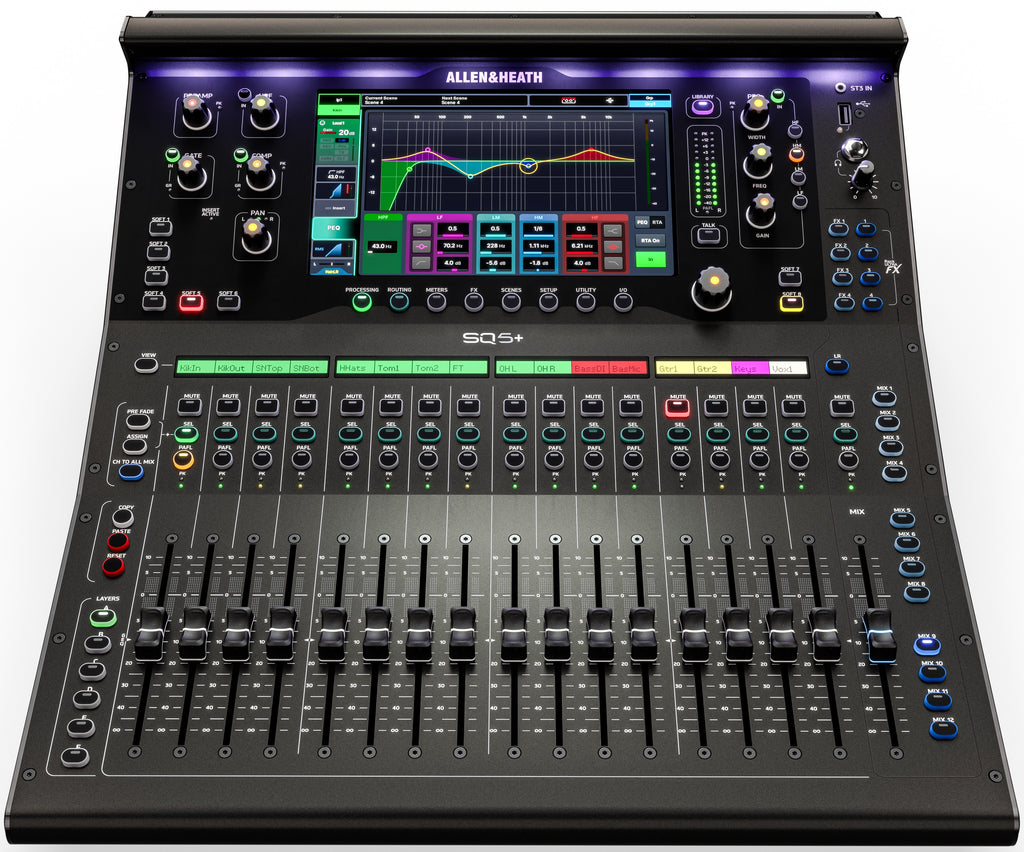

With a 48-input channel 96kHz XCVI core for ultra-low latency and phase coherent mixing, alongside incredible connectivity options - the SQ range continues to be class leading and the go-to solution for owner operators, mid-sized venues, small tours and anywhere audio quality and interoperability are vital. The SQ5+ upgrades the SQ-5 with more processing power, a larger 9” touchscreen with reimagined GUI and a clean ‘carbon-on-graphite’ update to the surface artwork and controls. All SQ+ models also include 4x RackUltra FX engines with dedicated send and return channels and the ability to run the latest DEEP channel processing.
Features:
96kHz XCVI Core
• 48x Input Processing Channels
• Stereo Main LR
• 12x Mono/Stereo, Group/Aux Mixes
• 4x FX Sends
• 4x RackUltra FX Sends
• 6x Mono/Linkable Matrix

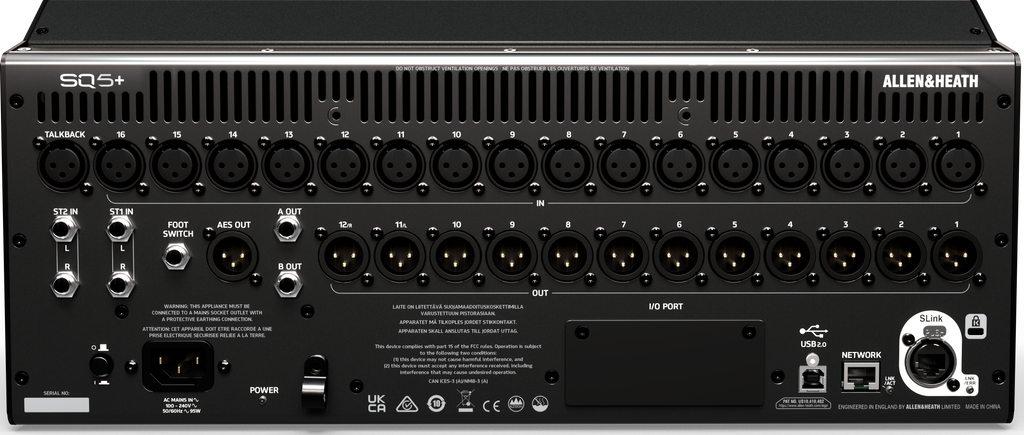

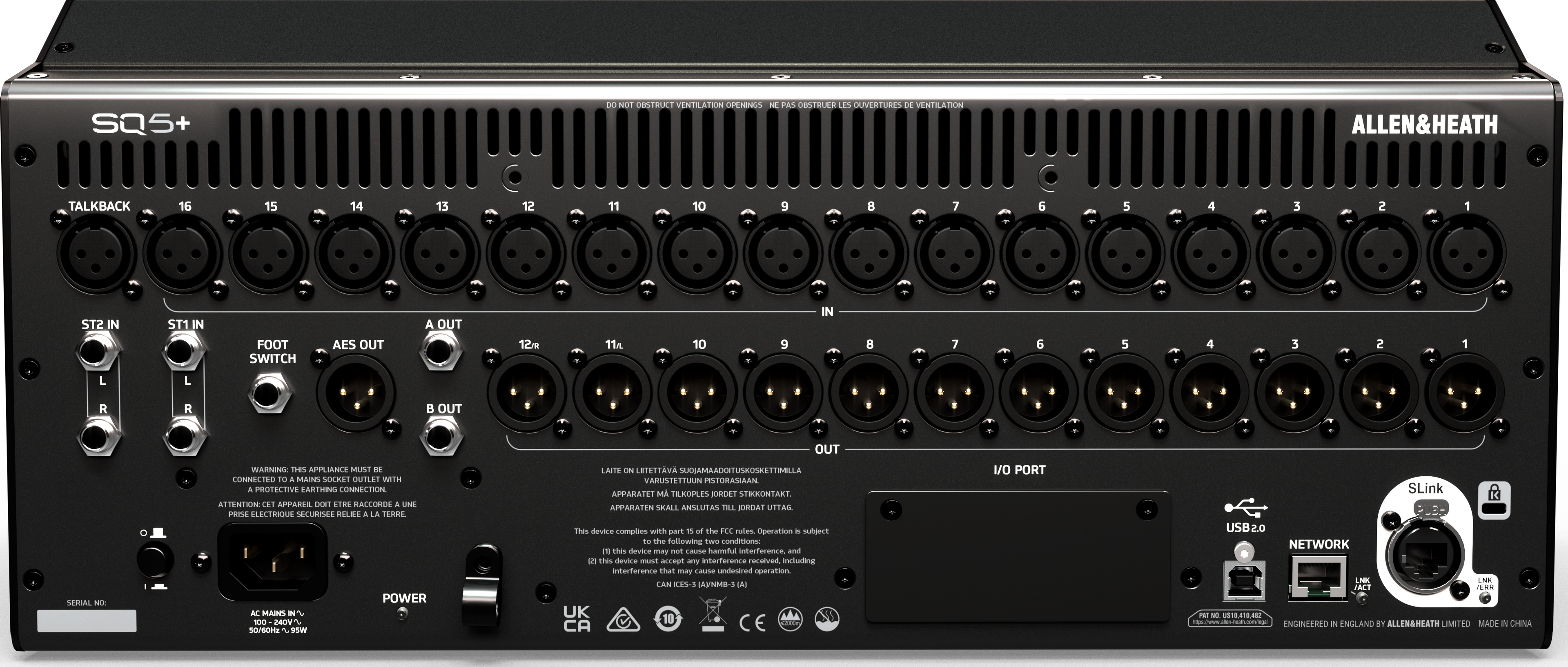

• 16x XLR Mic/Line Input Sockets
• 3x Stereo Line Input Sockets
(2x TRS, 1x 3.5mm Stereo Jack)
• 1x XLR Talkback Socket
• 12x XLR Output Sockets
• 2x TRS Output Sockets
• 1x AES3 Stereo Digital Output Socket
• 128x128 Intelligent SLink Port for Everything
I/O expansion and system connections
• Stereo Headphone Output
• 8x FX Engines with dedicated Stereo Return
Channels
• 4x RackUltra FX Engines with dedicated
Stereo Return Channels
• 9” Capacitive Touchscreen
• 17x 100mm Motorised Faders
• 6x Customisable Channel Strip Layers
• 8x Soft Keys
• USB-A stereo/multichannel audio
record/playback and data transfer
• USB-B Audio interface for multichannel
record/playback (32x32)
• Configurable dual Footswitch Connection
• Configurable Chromatic Channel Meter LED’s
• 19” Rack Mountable (optional kit available)
• IEC Mains Connection with Worldwide PSU
• RJ45 Network Socket
• Remote network control via free apps
Specs:
Product Dims
Length 514.9mm 20.3"
Width 440mm 17.3"
Height 198mm 7.8"
Weight 11.2kg 24.7lbs
Packaged Dims
Length 605mm 23.8"
Width 702mm 27.6"
Height 353mm 13.9"
Weight 14.9kg 32.8lbs
