Overview

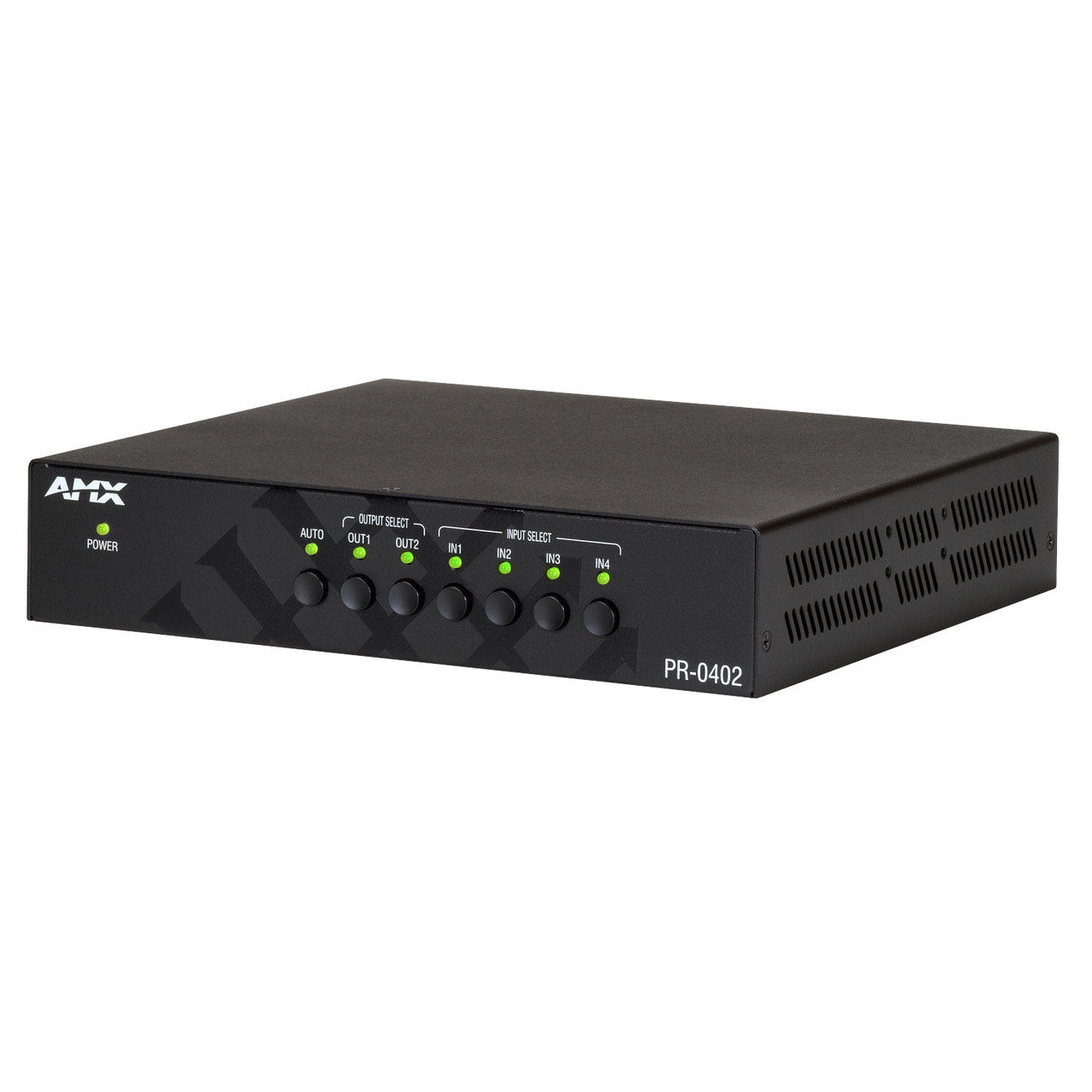

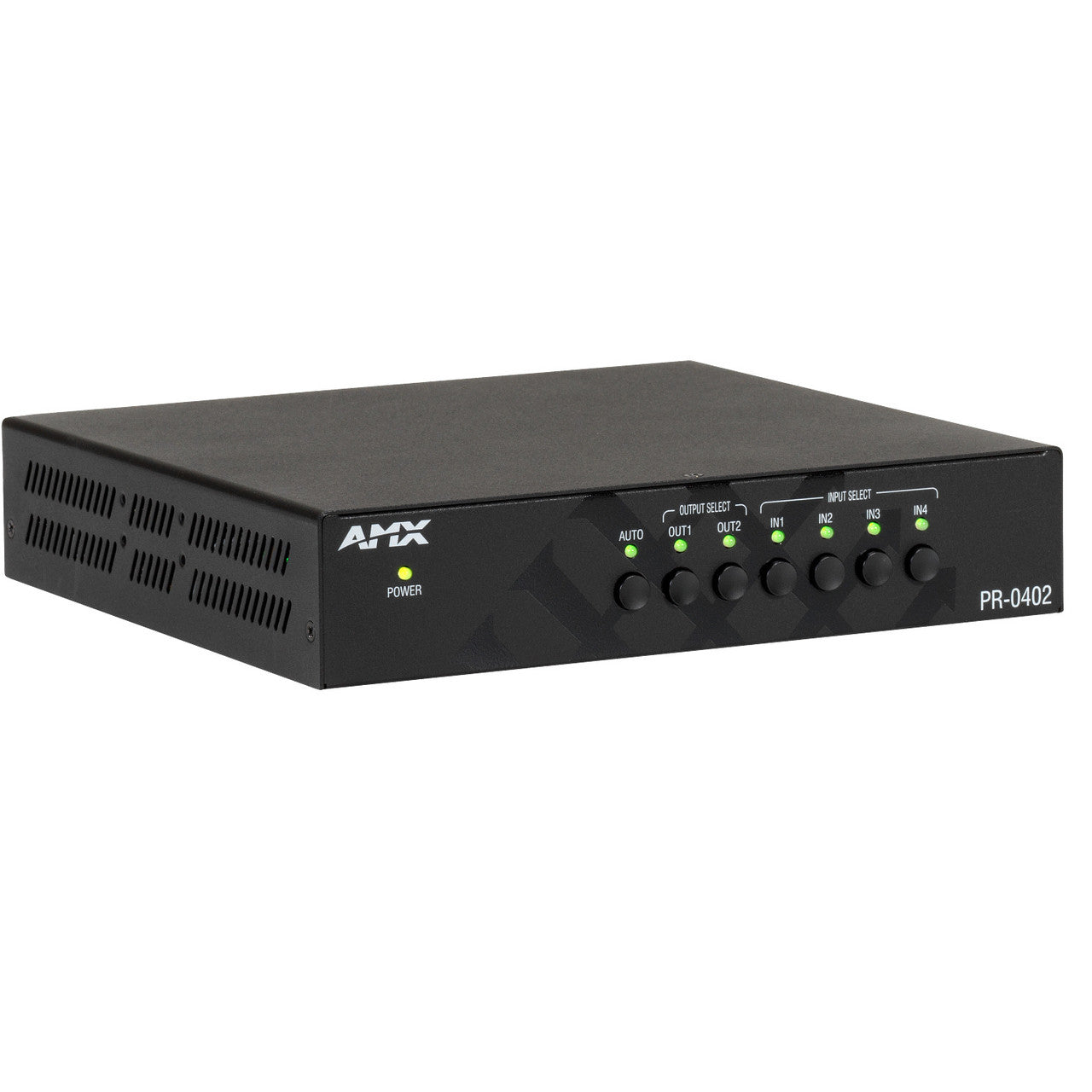

The AMX Precis 4x2 4K60 HDMI Matrix Switcher is an extremely affordable yet fully featured HDMI video routing solution for small to medium installations. Featuring 4 HDMI inputs and 2 HDMI outputs, it includes best-in-class capabilities like pixel-for-pixel video reproduction, comprehensive EDID management, automatic or manual switching modes, and extreme control flexibility with an open control API and a simple-to-manage HTML5 web interface.
The PR-0402 supports high quality HDMI 2.0, HDCP 2.2, HDR10+, 36-bit per pixel Deep Color, and Dolby Vision. Automatic and manual switching modes plus onboard dynamic audio de-embedding offer maximum configuration flexibility. Combining a robust matrix switcher and a highly affordable price point, backed by over 30 years of industry-leading matrix switching experience, the AMX Precis PR-0402 can be trusted to deliver an exceptional switching solution.
Features
- Perfect HDMI 2.0 4K60 4:4:4 Video - Ideal for users that can benefit from processing the full fidelity of their displays
- High Dynamic Range (HDR) and Deep Color Support – Support for HDR10+, 36-bit per pixel Deep Color, and Dolby Vision
- HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
- EDID Management - Provides comprehensive management of EDID to ensure that every source is displayed at the optimal resolution and format
- Automatic and Manual Switching Modes – Automatic switching can be leveraged to create a touch-free experience
- Audio De-Embedding – Includes the convenience of analog audio de-embedding from each HDMI output separately
- H-Control Upgradable – Ready to support H-control in the future by firmware re-writing via USB.

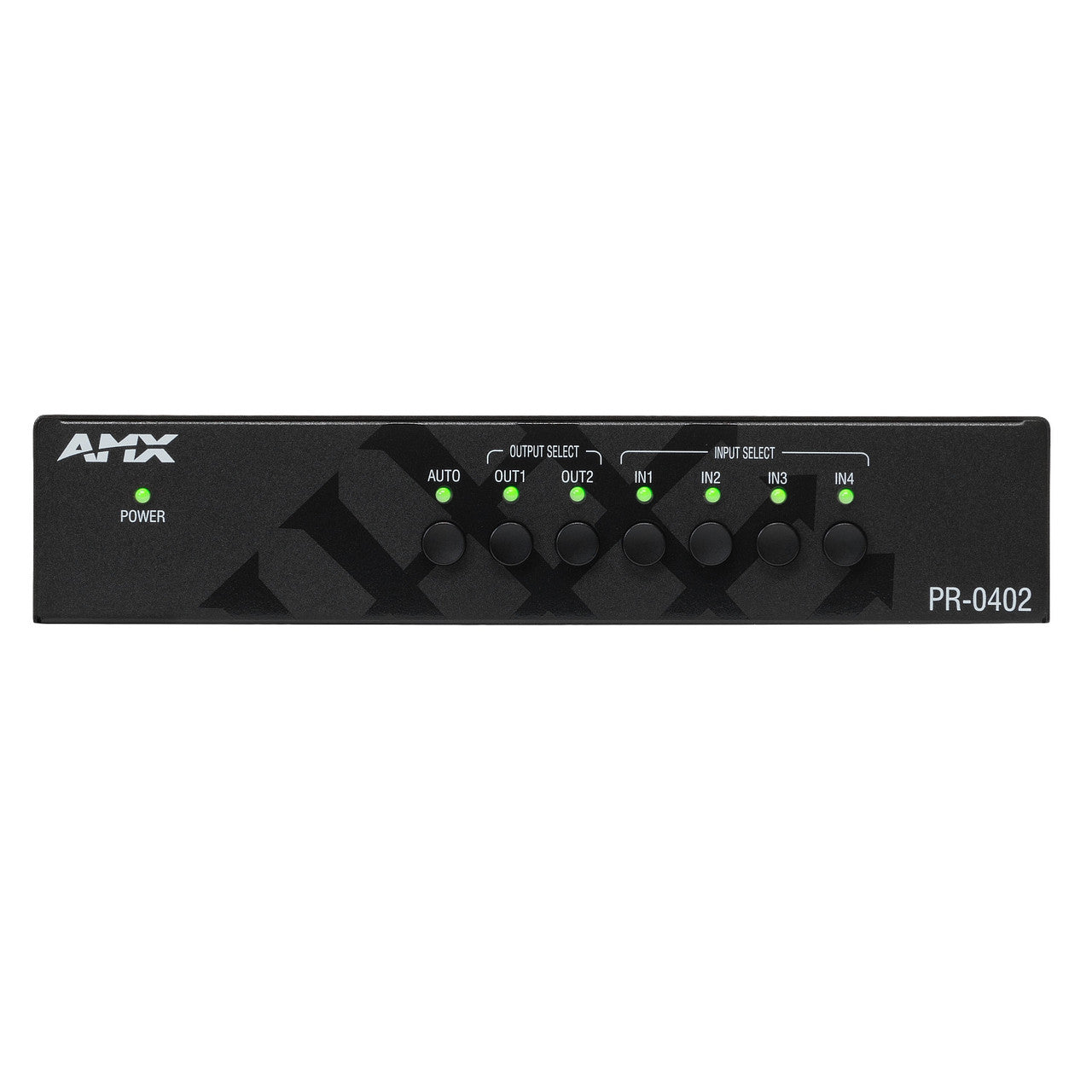

- Multiple Control Options – Multiple control options are available including: Open API Control over IP and Serial, full Web GUI console, and front panel buttons
Specifications
| Video Inputs | (4) HDMI; supports HDMI/HDCP |
| Video Outputs | (2) HDMI; supports HDMI/HDCP |
| Video Resolution Support | Various up to 4096 x 2160@ 60 Hz - Reference Data Sheet for Specific Resolution Support |
| Audio Inputs | Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel, PCM Multi-Channel, Dolby Digital, Dolby Digital Plus, Dolby Atmos, Dolby TrueHD, DTS, & DTS HD MA |
| Audio Outputs | (2) 3 Position 3.5mm pluggable Phoenix Terminal Block; supports Unbalanced Analog Stereo |

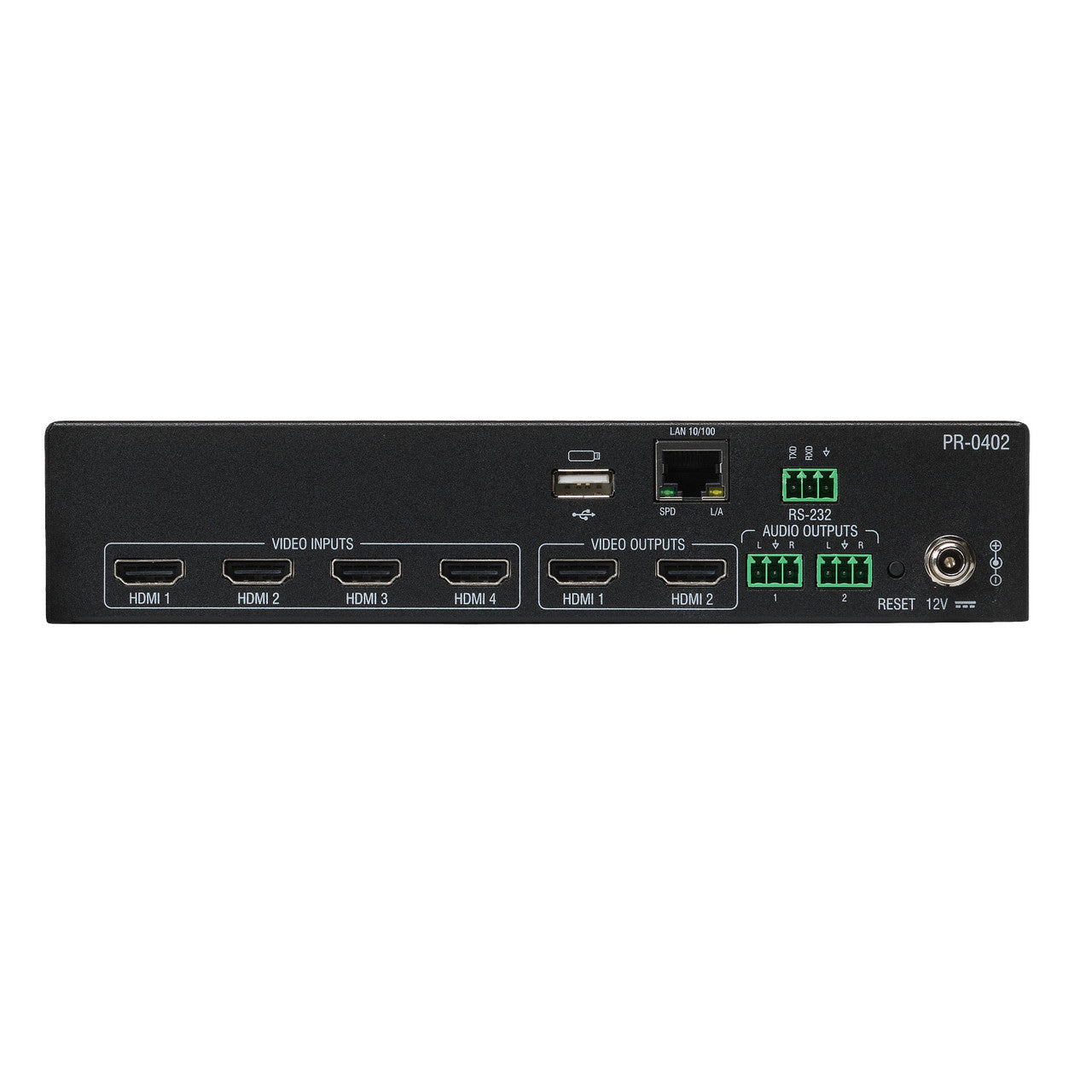

| Ports | 12V Power: Screw Down Locking Power Connector; HDMI Input: (4) HDMI Type A Socket; HDMI Output: (2) HDMI Type A Socket; Ethernet: RJ45 Connector; Analog Stereo Output: (2) 3 Position 3.5mm pluggable Phoenix Terminal Block; RS-232: (1) 3 Position 3.5 mm pluggable Phoenix Terminal Block; Program Port: (1) USB Type A Socket |
| Environmental | Temperature (Operating): 32°F (0°C) to 122°F (50°C) Temperature (Storage): -4°F (-20°C) to 140°F (60°C) Humidity (Operating): 10% to 90% RH (non-condensing) Humidity (Storage): 10% to 90% RH (non-condensing) Thermal Dissipation (Typical): 33.4 BTU/hr |
| Regulatory Compliance | FCC Part 15 Class B EN 55032 EN 55035 CB IEC/EN 60950 CB IEC/EN 62368-1 UL 62368-1 RoHS/REACH EMC (Australia) EMC (Canada) EMC (UKCA) Prop65 |
| Dimensions (H x W x D) | 1.73" x 8.4" x 8.07" (4.4 cm x 21.35 cm x 20.5 cm) |
| Weight | 2.9 lbs (1.3 kg) |
