Overview

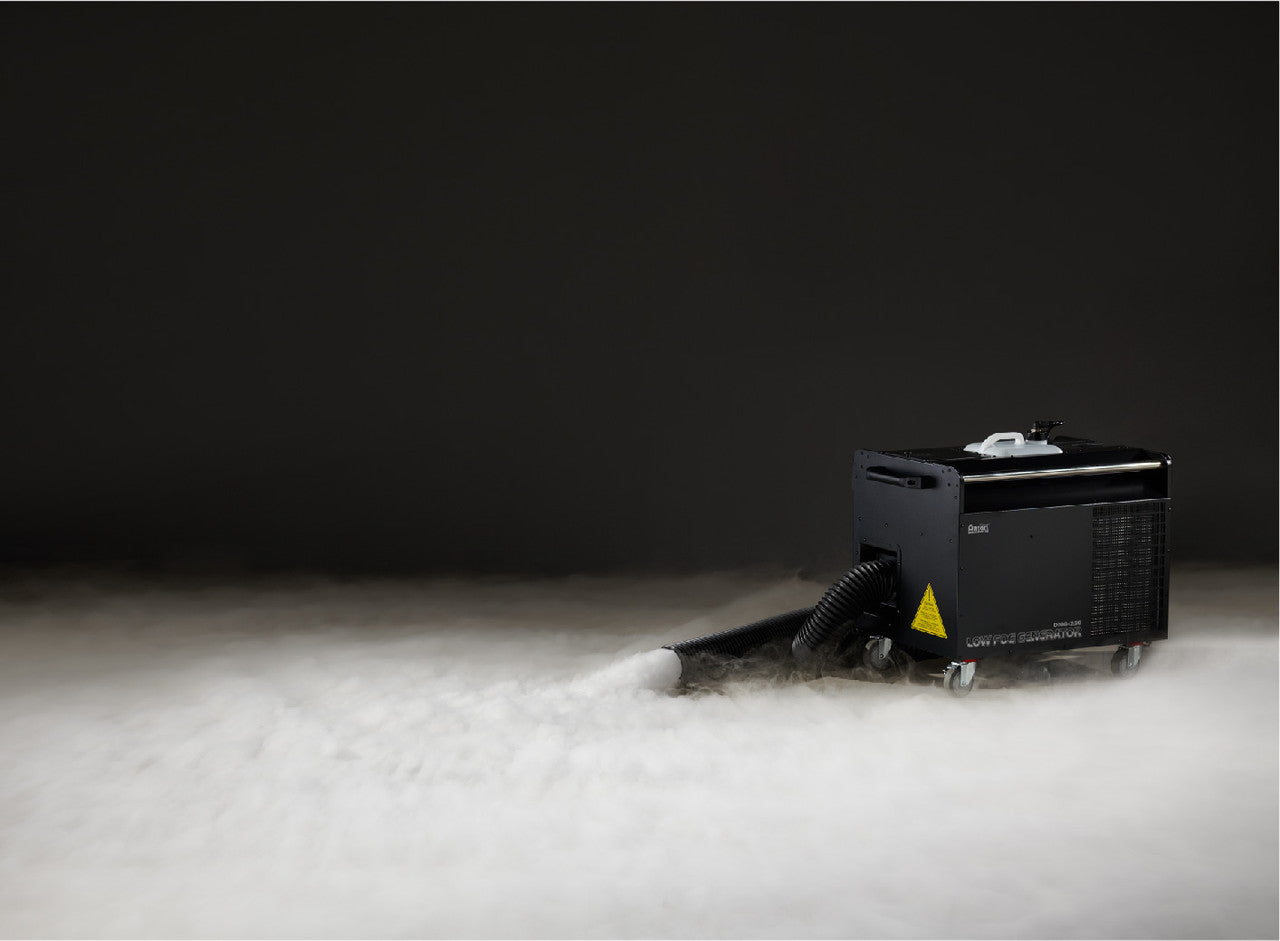

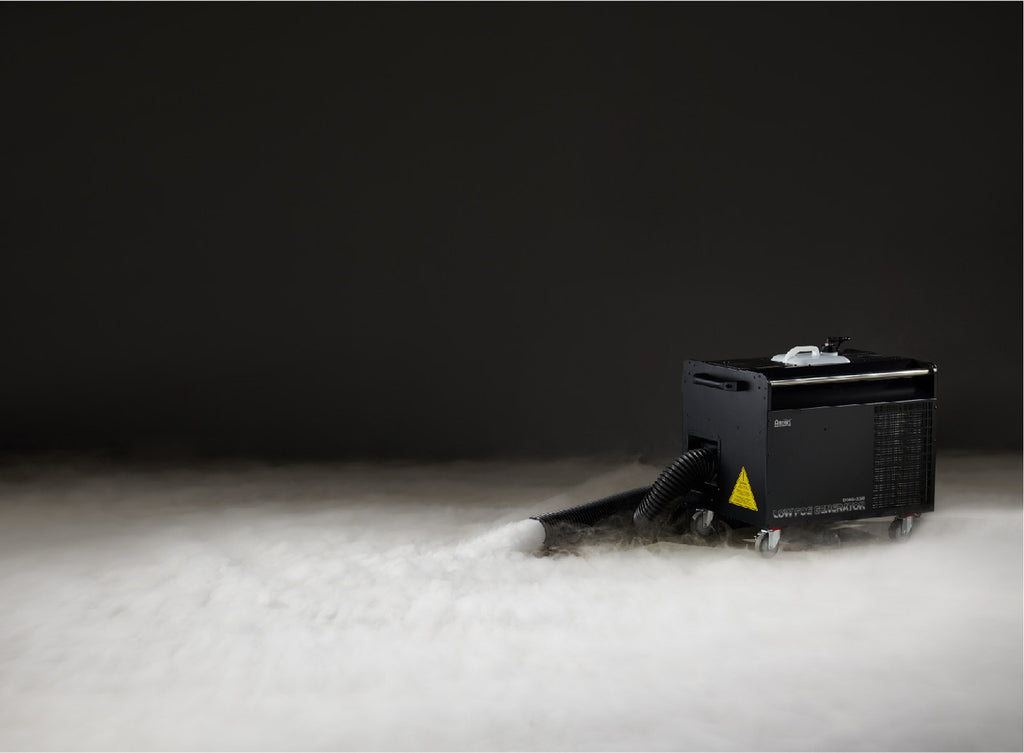

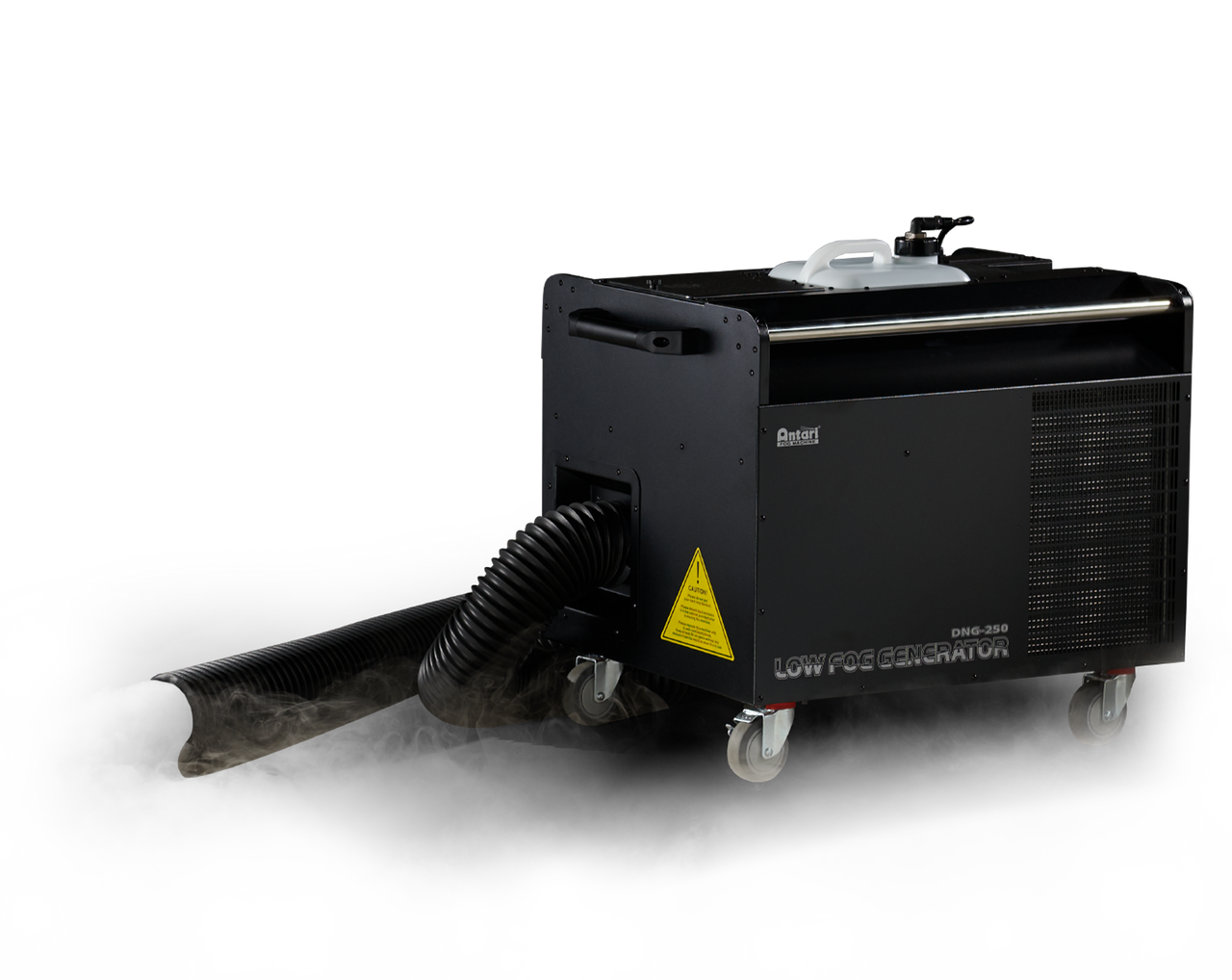

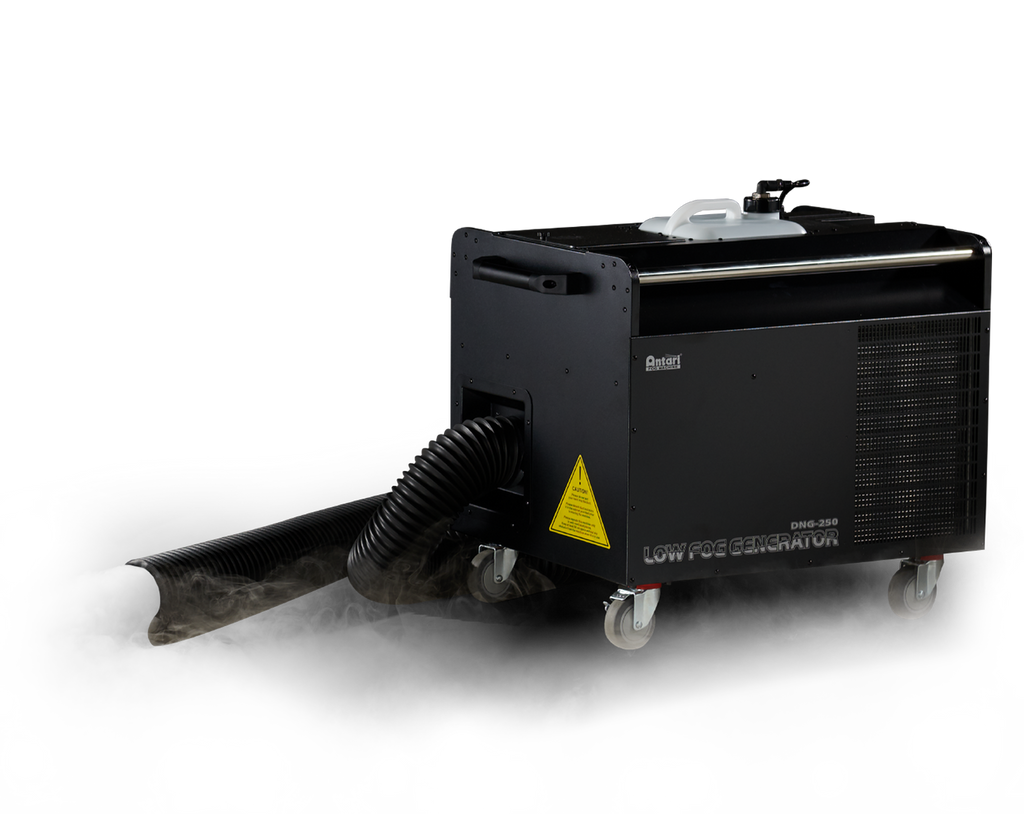

Meet Antari’s latest low-lying fog technology: DNG-250. Compare to its previous version DNG-200, the DNG-250 is upgraded to a more powerful heating element and more efficient refrigeration systems, which enables it to produce higher volume and even better low fog effects.
*For best low fog effect, use Antari FLL Low Fog Fluid.
SPECIFICATION
| Rated voltage |
US model : AC 100-120V, 50/60Hz EU model : AC 220-240V, 50/60Hz |
|
| Refrigerant |
120V R- 404A , 1.98LB (0.8Kg) 240V R- 404A , 1.98LB (0.8Kg) |
|
| Start current |
120V / 77.4A 240V / 36.1A |
|
| Rated current |
120V / 14.2A 240V / 6.5A |
|
| Fog power consumption |
120V / 1600W 13.5A 240V / 1600W 6.8A |
|
| Warm-up time | 6 minutes (approx.) | |
| Fluid consumption | 100 ml/min | |
| Fluid tank capacity | 10 Liters (2.64 gallon) | |
| Compatible fluid | Antari FLL Low Fog Effects Fluid | |
| Ambient temp.range | 5°C – 40°C (41°F – 104°F) | |
| Output | 120 m2 / min | |
| Control | Manual, Timer, DMX 512 | |
| DMX channels |
2 channels | |

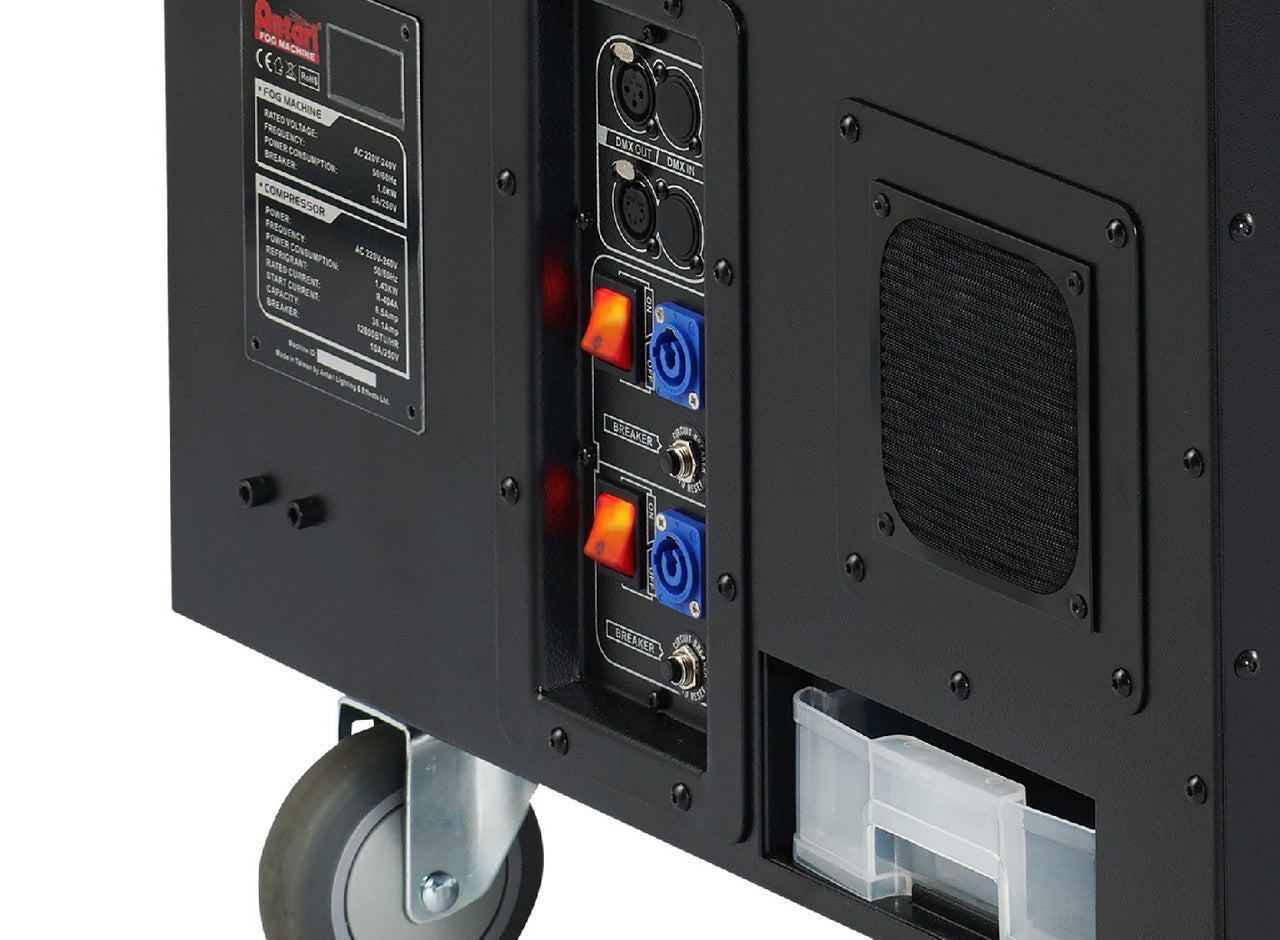

| Connection |
Neutrik Powercon (Power) XLR 3-pin and 5-pin (DMX) |
|
| Optional Accessories |
FDNG-250 Flight Case、FTA-200 Fog Conducting Hose Adaptor、 C0DNG0600 3 Meter Fog Confucting Hose |
|
| Dimension |
L 780 W 608 H 715 mm (L 30.7 W 23.93 H 28.15 inch) |
|
| Weight | 130 kg (286.6 lbs) |
