Overview

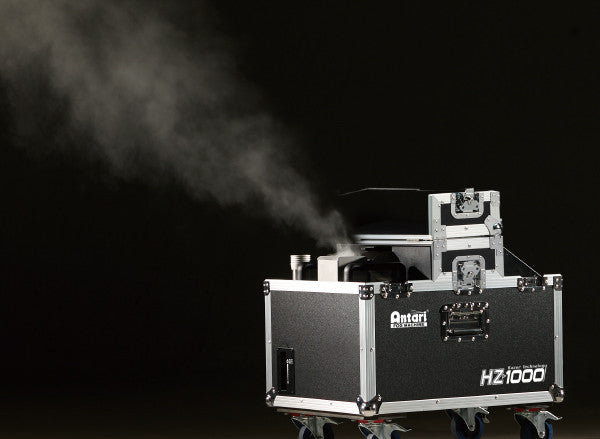

HZ-1000 is the most advanced haze machine among Antari’s HZ series. With the option of single or twin-compressor modes, this exceptional hazer can now be used in a greater range of various venues.
The TFT color touch panel makes it much more instinct and easy when setting. More protection and convenience is provided with the wheeled-flight case while touring. Built-in turbo fan not only brings the haze higher and farther also enables the hazer to create drier haze with minimum residues. Bigger fluid tank and easy-to-see liquid level indication window both help make sure the show must go on!
‧The maximum haze output is HZ-500’s double. Two operational modes: Single-Compressor or Twin-Compressor mode can be selected to create needed haze volume.

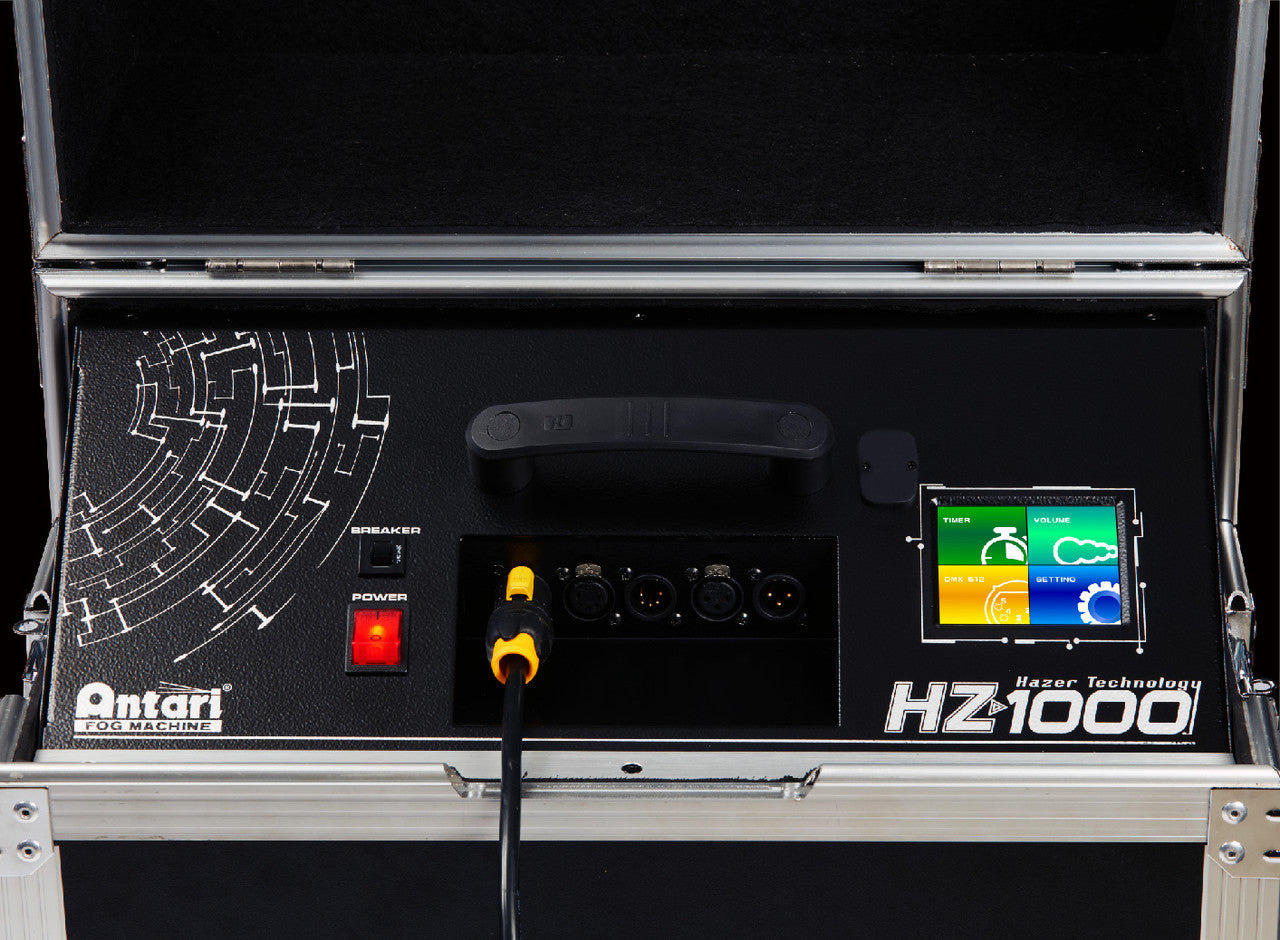

‧Equipped with TFT color Touch Panel provides simple control interface.

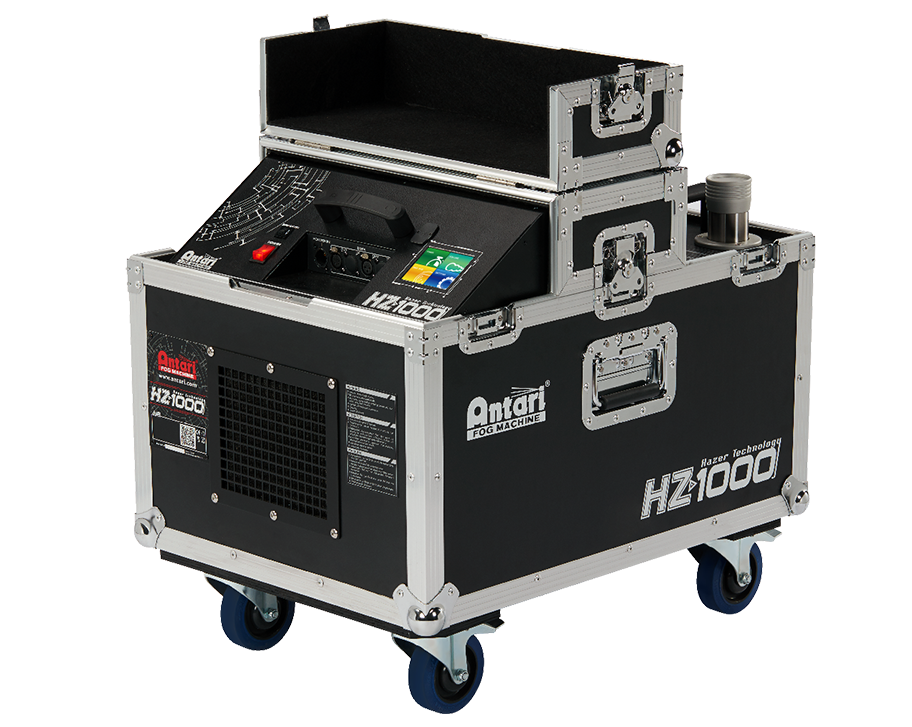

‧Flight case with wheels gives better protections for tours.

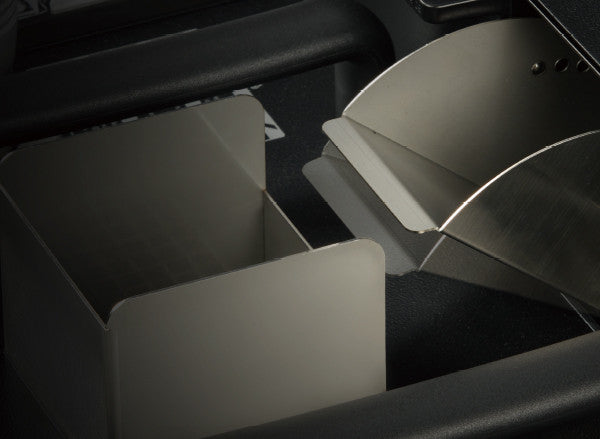

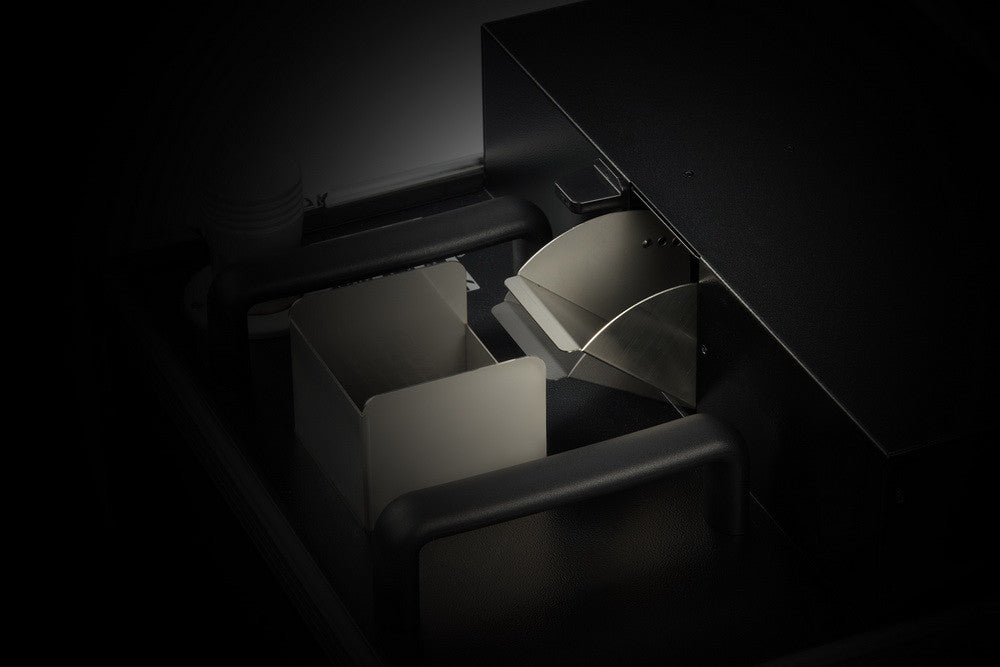

‧Internal turbo fan enables haze to go higher and farther. Wind diverter can be set to 2 different angles.

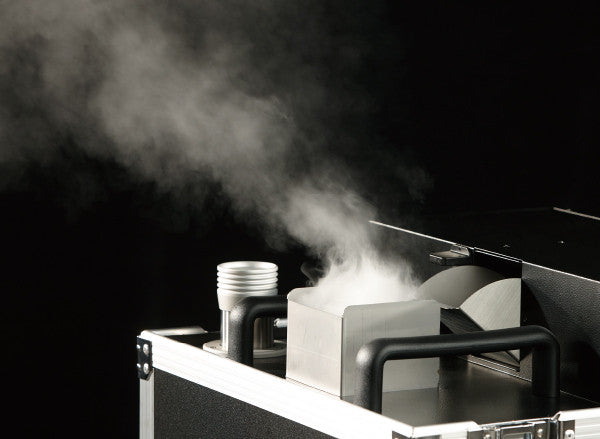

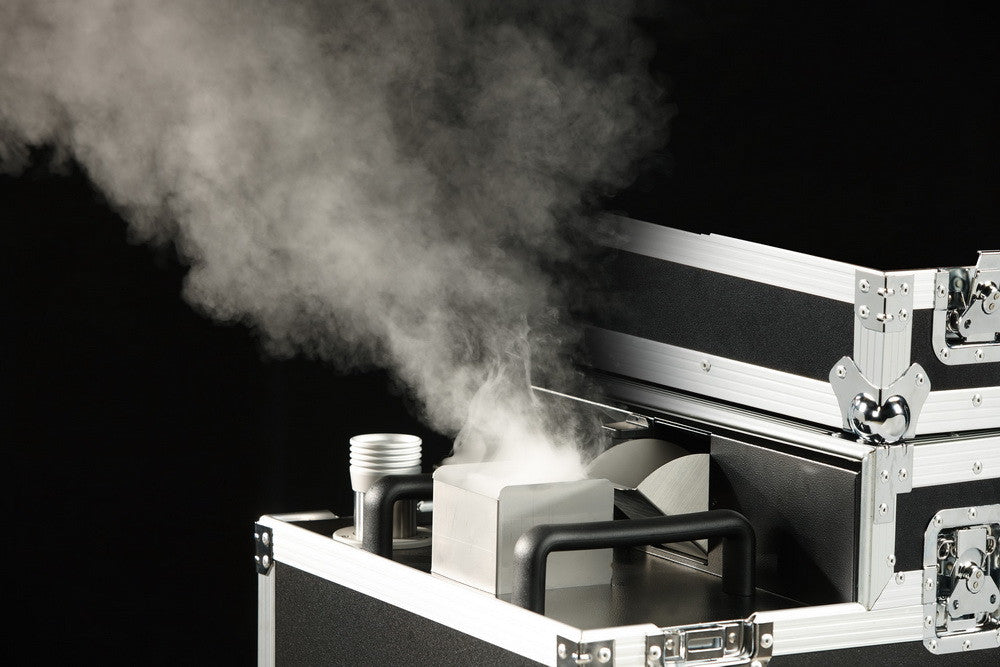

‧Dry haze with minimum residues.
‧6.4-liter large reservoir allows long time operation without frequent refills.
‧Clear liquid level indication window.
SPECIFICATION
| Rated voltage |
US model : AC 100-120V, 50/60Hz 9.6A EU model : AC 220-240V, 50/60Hz 4.8A |
| Rated power | 1150W |
| Fluid consumption | 2.2 ml/min |
| Fluid tank capacity | 6.4 Liters (1.69 gallon) |
| Compatible fluid | Antari HZL Haze Fluid |
| Operating time | 40 hrs max. output |
| Ambient temp.range | 0°C – 40°C (32°F – 104°F) |
| Control |
Manual, Timer, DMX 512 WirelessDMX (Optional) |
| DMX channels | 2 channels |
| Connection |
Neutrik TRUE 1 Connector (Power) XLR 3-pin and XLR 5-pin (DMX) |
| Optional accessories | W-DMX-PCBR Wireless DMX |
| Dimension |
L 690 W 510 H 610 mm (L 27.16 W 20.07 H 24.01 inch) |
| Weight | 74.6 kg (164.46 lbs) |
