Overview

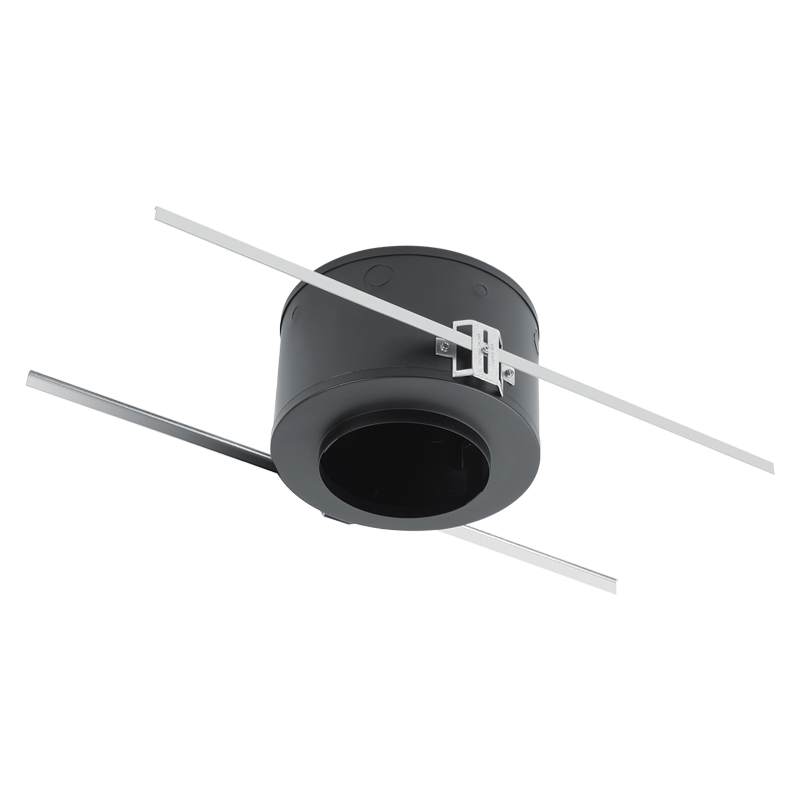

The EZ Mount Support System (Patent # 4,484,658) is available on AtlasIED's most popular 4" round enclosures including EZE410. Units accommodate the a wide selection of baffles
The EZ Mount Enclosure/Rail System transfers the composite weight of the speaker, baffle, and enclosure to the ceiling’s support members via adjustable support rails (included). The rails may be adjusted vertically and then secured to the specially designed, pre-mounted enclosure brackets with screws (furnished).
No tile bridge or time-consuming screw mounting is necessary.
Features
- Accommodates a Wide Selection of Atlas Sound Baffles
- Eliminates the Need for Tile Bridges and Time-Consuming Screw Mounting
- Patented Enclosure/Rail System Installs Easily to Provide Time and Labor Savings
Specifications
| Depth | 6" (15.24 cm) |
| Diameter | 6 3/8" (16.19 cm) |
| Shipping Weight | 4.50 lbs (2.04 kgs) |
| Mounts Baffle | T51-4, T60-4, T710-4, T720-4(BT), T740-4,T730-4B(4G) |
| Warranty Period | 60 months from date of purchase |
