Overview:

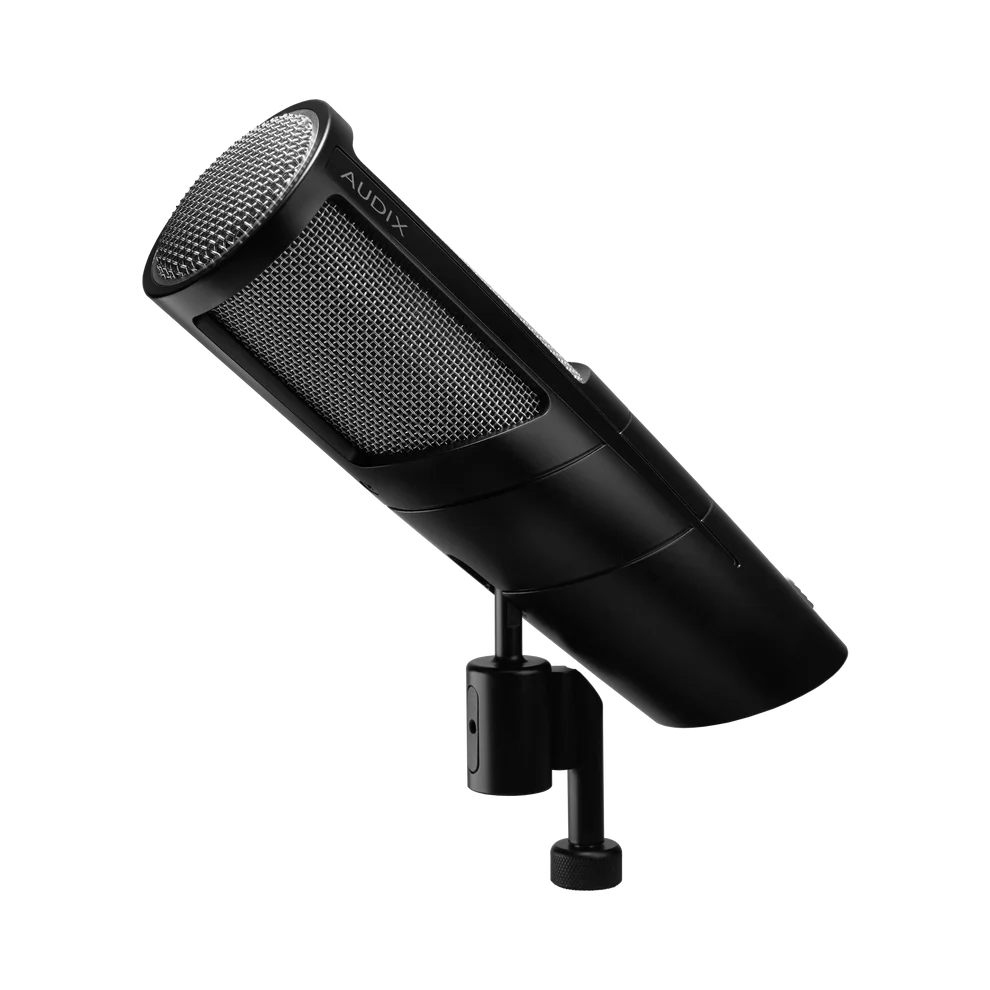

The Audix PDX520 is a premium dynamic broadcast microphone engineered for podcasting, broadcasting, streaming, voice-over production, and studio applications. Designed to provide true-to-life spoken voice reproduction, the PDX520 features a cardioid polar pattern, integrated vibration dampening system, onboard low-cut and presence boost switches, and ample output level that eliminates the need for inline gain boosters or "cloud lifters" in most applications. Its robust all-metal construction and integrated mounting arm make it ideal for professional content creators and broadcasters.
Features:
Optimized for podcasting, broadcasting, and voice-over
Natural spoken voice reproduction
Cardioid polar pattern for improved isolation
No inline preamp booster required in most setups
Integrated vibration dampening system

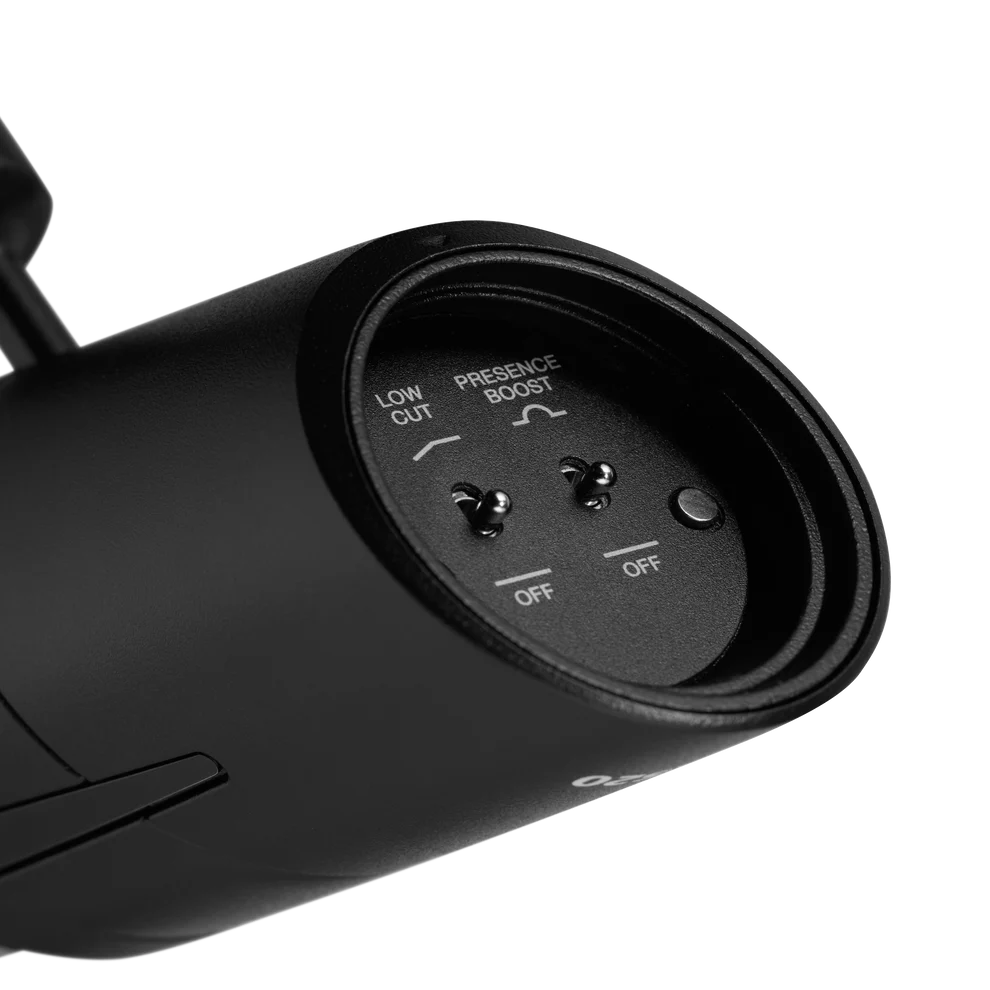

Onboard low-cut filter switch
Onboard presence boost switch
Internal shock isolation

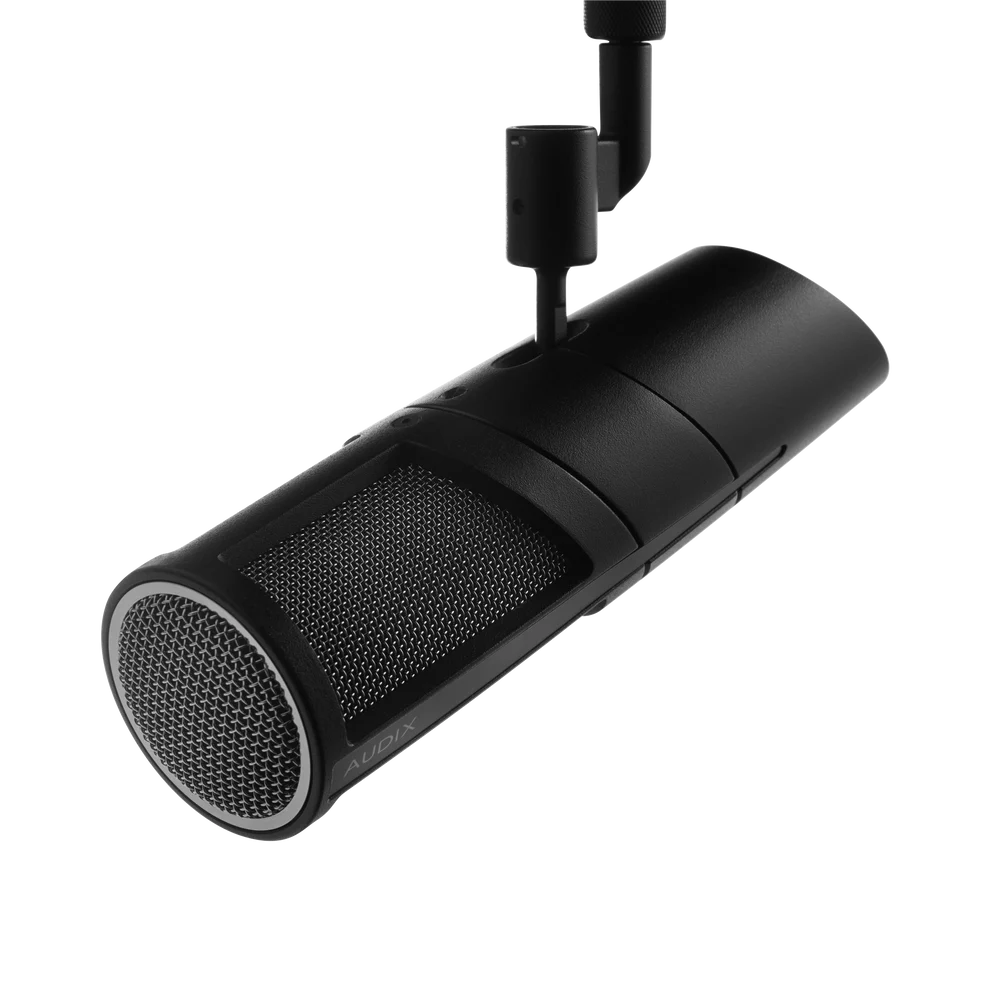

Integrated mounting arm
All-metal construction
Designed and crafted in the USA
Suitable for studio and broadcast environments
Specs:
| Product Type | Dynamic Broadcast Microphone |
| Manufacturer Part Number | PDX520 |
| Transducer Type | Dynamic |
| Polar Pattern | Cardioid |
| Capsule Technology | VLM (Very Low Mass) |
| Frequency Response (-6 dB) | 40 Hz - 16 kHz |
| Maximum SPL | 144 dB |
| Output Impedance | 280 Ohms |
| Sensitivity | 0.842 mVrms |
| Low-Cut Filter | 80 Hz, 6 dB/Octave |
| Presence Boost | 1 kHz - 5 kHz, +3 dB Maximum |

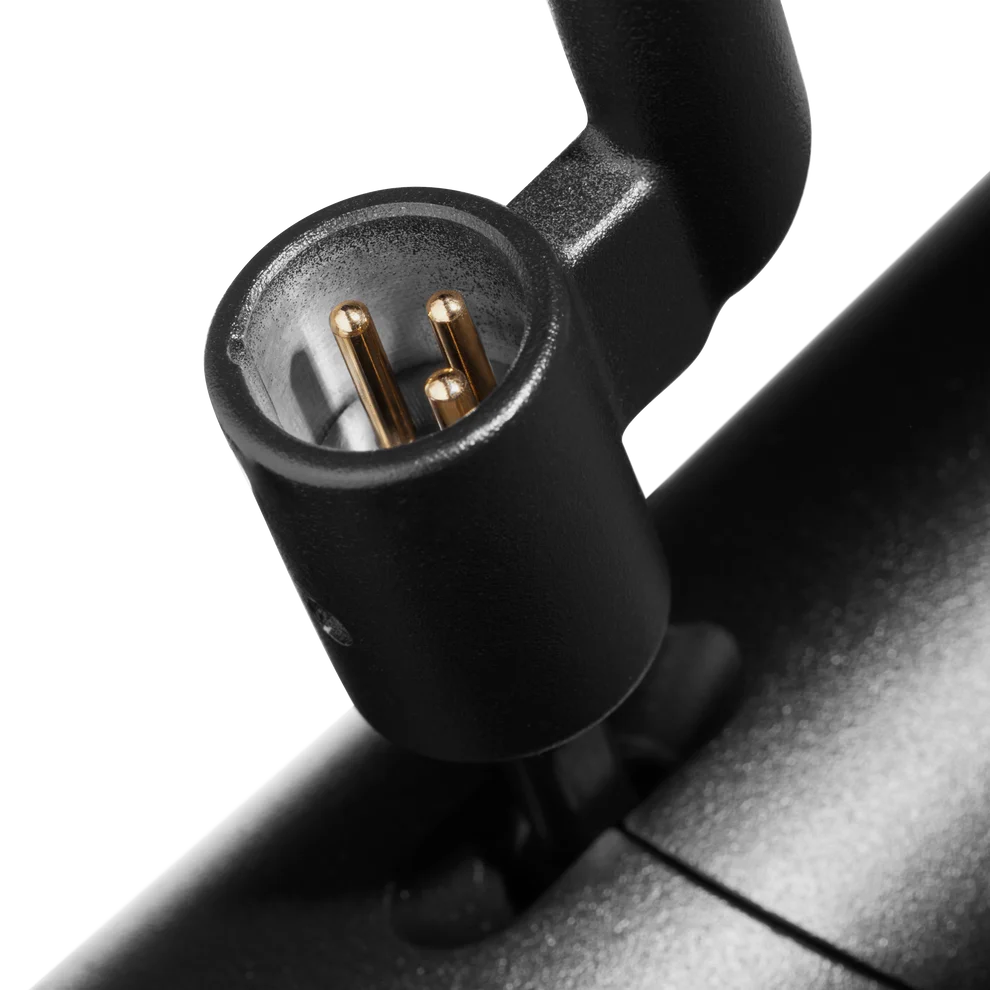

| Connector | 3-Pin XLR Male |
| Power Requirement | None |
| Construction | Solid Metal Body |
| Shock Isolation | Internal Vibration Dampening System |
| Mounting | Integrated Mounting Arm |
| Dimensions | 8.43 x 2.56 x 2.56 in |
| Volume | 55.2 in³ |
| Weight | 1.92 lb |
