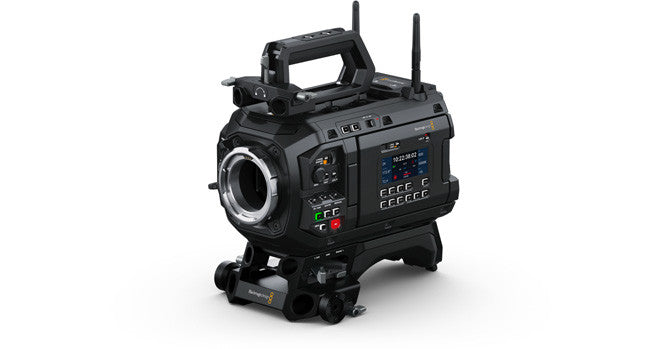

Blackmagic URSA Cine 12K LF

SKU: BMD-CINEURSAA12KLF

Only Approved Dealers can purchase.
Please Sign In.

or Become A Dealer to gain access today.

Description

Blackmagic URSA Cine 12K is a revolution in digital film with a new large format RGBW 36 x 24mm sensor with larger photo-sites for 16 stops of dynamic range. This revolutionary model also includes interchangeable lens mounts, a dedicated assist station with a second 5″ HDR LCD touchscreen, built in ND filters and industry standard Lemo and Fischer connections. Blackmagic URSA Cine comes with a massive 8TB of removable high performance media storage built in and also includes high speed 10G Ethernet and Wifi for fast media upload and syncing to Blackmagic Cloud.


Features

Effective Sensor Size

  • 35.64mm x 23.32mm (Large Format)

Lens Mount

  • PL mount. Interchangeable with URSA Cine lockable EF mount included.

Lens Control

  • Active EF and PL mount lens control with compatible lenses.

Dynamic Range

  • 16 Stops

Shooting Resolutions

  • 12,288 x 8040 (12K 3:2 open gate)
  • 12,288 x 6480 (12K 16:9)
  • 12,288 x 6912 (12K 17:9)
  • 12,288 x 5112 (12K 2.4:1)
  • 9648 x 8040 (12K 6:5)
  • 9408 x 6264 (9K 3:2)
  • 8688 x 4896 (9K 16:9)
  • 9312 x 4896 (9K 17:9)
  • 9312 x 3864 (9K 2.4:1)
  • 7680 x 6408 (9K 6:5)
  • 8192 x 5360 (8K 3:2 open gate)
  • 8192 x 4608 (8K 16:9)
  • 8192 x 4320 (8K 17:9)
  • 8192 x 3408 (8K 2.4:1)
  • 6432 x 5360 (8K 6:5)
  • 4096 x 2680 (4K 3:2 open gate)
  • 4096 x 2304 (4K 16:9)
  • 4096 x 2160 (4K 17:9)
  • 4096 x 1704 (4K 2.4:1)
  • 3216 x 2680 (4K 6:5)

Frame Rates

  • Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.

High Speed Frame Rates

  • 12K 3:2 open gate up to 80 fps
  • 12K 17:9 up to 100 fps
  • 12K 2.4:1 up to 120 fps
  • 9K 3:2 Super 35 up to 100 fps
  • 8K / 4K 3:2 open gate up to 144 fps
  • 8K / 4K 2.4:1 up to 224 fps

Built in ND Filters

  • Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters.

Focus

  • Focus button turns on peaking, auto focus available using compatible lenses.

Iris Control

  • Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Screens

  • 2 x Monitoring Screens
  • 1 x Camera Status Screen

Monitoring Screen Dimensions

  • 5 inch.

Monitoring Screen Resolution

  • 1920px x 1080px

Monitoring Screen Brightness

  • 1500 nits.

Monitoring Screen Type

  • LCD capacitive touchscreen

Metadata Support

  • Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

Controls

  • Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable shortcut keys on URSA Cine EVF.

Timecode Clock

  • Highly accurate timecode clock. Less than 1 frame drift every 8 hours.



Specifications

Operating Temperature

  • 0° to 40°C (32° to 104°F)

Storage Temperature

  • -20° to 45°C (-4° to 113°F)

Relative Humidity

  • 0% to 90% non-condensing
