Overview

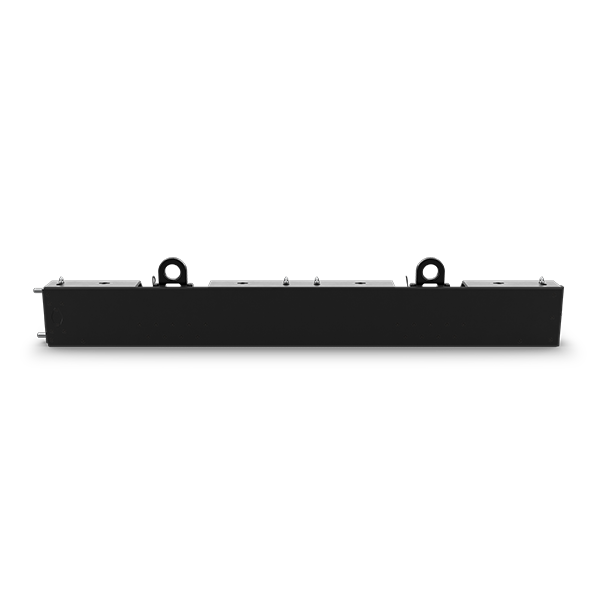

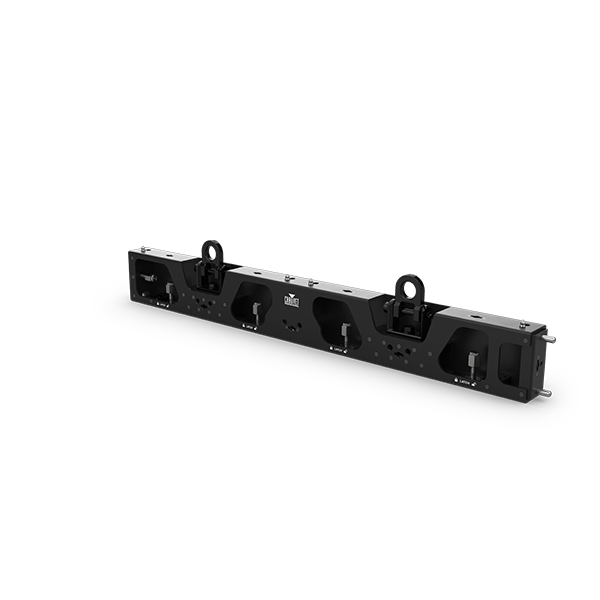

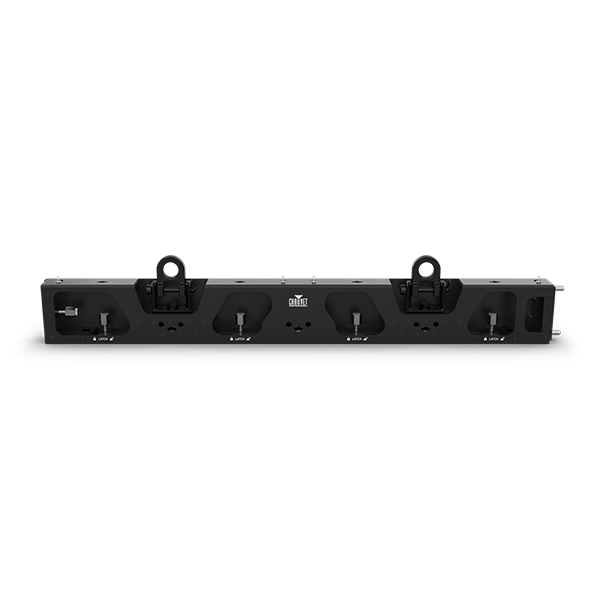

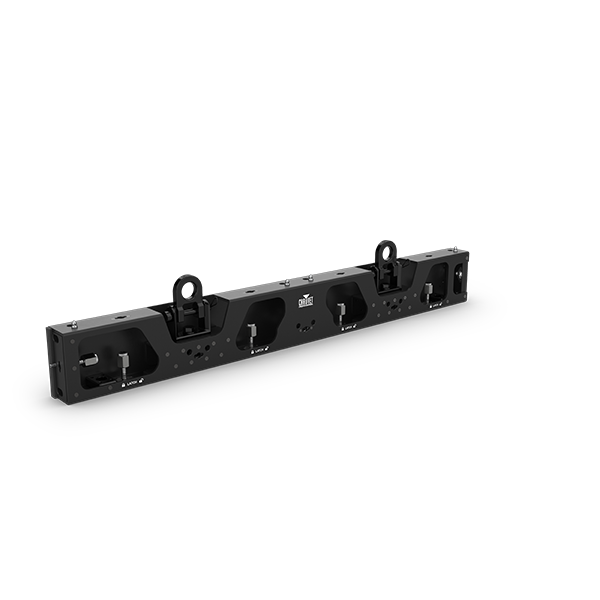

Designed to work with REM 1 and REM 3IP video panels (not compatible with older F-series Rig Bars), REM-RB100CMIP is a rugged IP65-rated rig bar that performs dual functions. It may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUND STACK KIT.
At a Glance
-
REM Rig Bar, used for both overhead hanging and ground stacking
-
Works with CHAUVET REM video panels
-
Equipped hoist ring supports standard rigging hardware for overhead hanging (1/2” and 5/8” shackles)
-
Included Clamp attachment bracket (DRB-CTC) allows for direct connection using M12 bolts in clamps using TRUSST CTC-50HC
Specifications
Construction / Physical
- Dimensions: 39.35 x 2.36 x 4.72 in (999.6 x 60 x 120 mm)
- Weight: 16.8 lb (7.62 kg)
- Exterior Color: Black
- Housing Material: Aluminum extrusion, stainless steel
Clamp
- Load Capacity (Hanging): 1,710.8 lb (776 kg)
- Load Capacity (Stacking): 1,752.70 lb (795 kg)
- Recommended Shackle Sizes: 1/2”, 5/8”
Certifications / Qualifications
- IP Rating: IP65, temporary outdoor/wet use
What's Included
- 1pc REM Rig Bar-100 cm (REM-F100CMIP)
- 2pcs clamp attachment brackets (DRB-CTC)
- 2pcs clamp bolts for TRUSST CTC-50HC
Required Accessories
- Compatible Mounting Options: Shackle (Sizes: 1/2”, 5/8”), Pipe Clamp (M12 threaded bolt)
Optional Accessories
- VIP Signal Distributor, VIP Media Server
- ArKaos Media Master Express + KN software
- Controllers (optional): IRC, FCW, ACW, FCT, FCM
- Clamps
- Barn Doors
- Neutrik powerCON cables
- Neutrik etherCON cables
- DMX Cables
- Flight Cases
