Overview
The easiest to install, most economic mounting kit available for suspended ceilings.

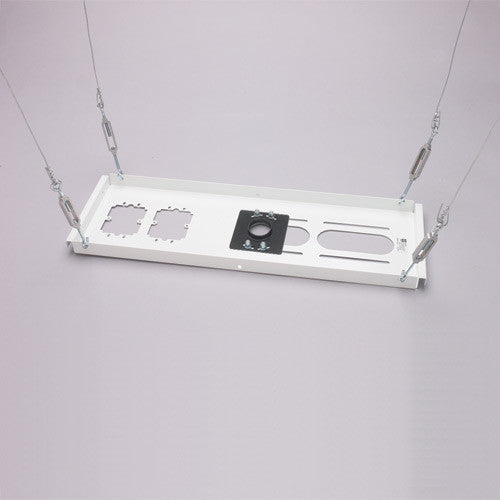

- CMA443 is a bundle including CMA440 (Above Tile Suspended Ceiling Kit) and CMS003 (3" Fixed Pipe)
- Installs above ceiling tile
- Comes with 10 ft (304.8 cm) safety cable, 20 ft (609.6 cm) strand wire, two outlet knockouts, four turnbuckles, wood eye bolts, concrete anchors and chrome ring
- Supports a total weight (including column, mount and projector) of 50 lbs (22.6 kg)
- Minimal assembly required
- Easy clamping to ceiling tracks
- Compatible with 600 x 600 mm or 600 x 1200 mm ceiling tile in Europe, Canada and Mexico
Specification
Dimensions & Measurements
| Ceiling Tile Size | 2' x 2' (0.61 x 0.61m) and 2' x 4' (0.61 x 1.22m) |
| Depth | 8 |
| Height | 1.2 |
| Shipping Weight | 8 lbs (3.6 kg) |
| Weight Capacity | 50 |
| Width | 24.4 |
Characteristics & Features
| Accessory Type | Suspended Ceiling |
| Application | Ceiling |
| Ceiling Plate Type | Flat |
| Color | White |
| Column Type | None |
| Includes Power Outlet | No |
| Installation Type | Above Tile |
| Special Features | Surge and Filtering |
