Overview

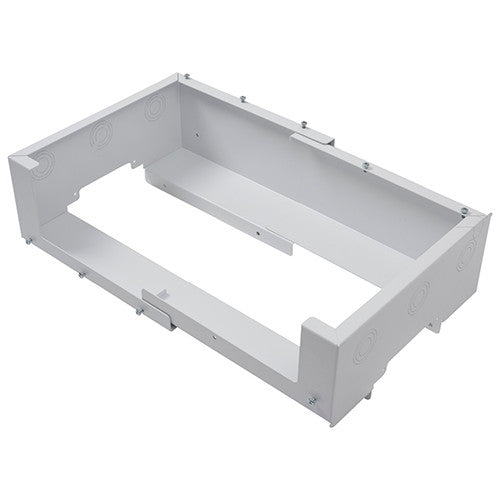

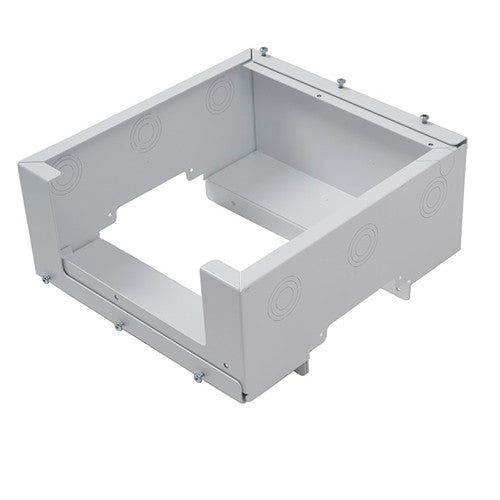

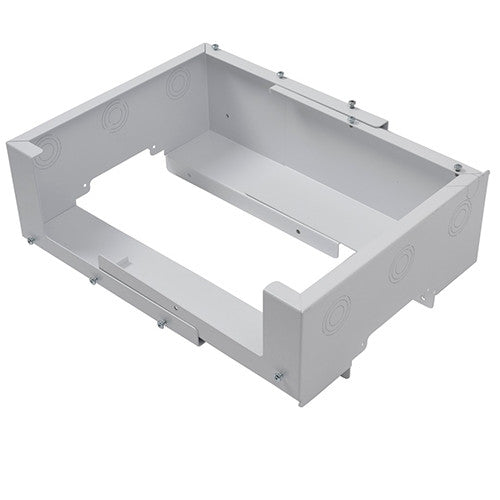

This above suspended ceiling storage system scales and shifts to fit AV equipment and avoid obstructions. Only compatible with the SYS Suspended Ceiling Projector System.
- Enclosure is scalable to fit AV equipment
- Shift enclosure along tile bridge to avoid interferences
- UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
- Removable covers enable side access in shallow spaces and full access from above
- Six trade size conduit knockouts in 0.5", 1", 1.5" (12, 25, 38 mm)
- Flexible conduit knockouts allow high voltage conduit to pass through box when the power is facing into the room below.
- Compatible with SYS Suspended Ceiling Projector System
Specification
Dimensions & Measurements
| Depth | 13 |
| Height | 5.38 |
| Overall Dimensions | 5.38 x 22 x 13" (137 x 559 x 330 mm) (expanded dimensions) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Size | Scalable |
| Weight Capacity | 35 |
| Width | 22 |
Characteristics & Features
| Accessory Type |
|
| Application | Ceiling |
| Color | White |
| Notes | Collapsed Width 12" (305 mm) |
