Overview

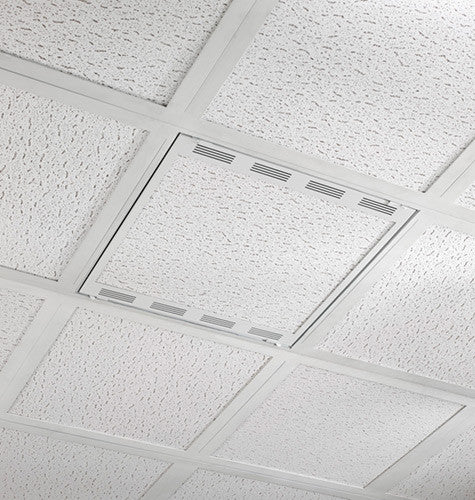

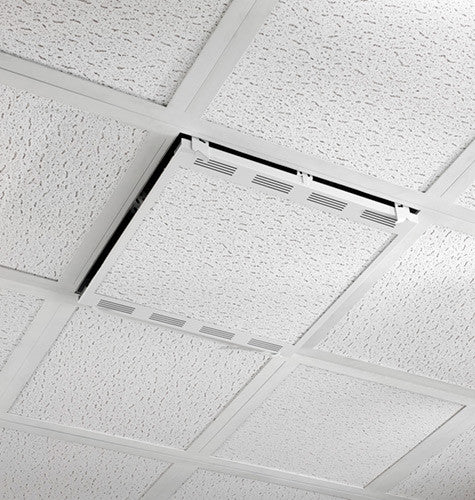

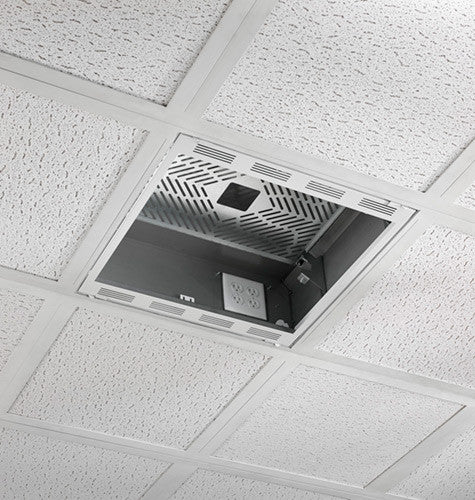

The CMS492 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.
- Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
- Inside the box or facing the room
- Up to 2 single gang or 1 dual gang outlet
- 4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
- Built in ventilation
- AV tray supports a variety of AV components
- Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2
- 1 RU rack rail brackets sold separately, see CMS1RU
- Overall weight capacity 100 lbs (45 kg)
- 50 lbs (22 kg) for projector ceiling plate
- 25 lbs (11 kg) per shelf location
- Ships with speed connect installation hardware
- Lightweight construction, one man installation
- UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC.
- TAA Compliant
Specification
Dimensions & Measurements
| Ceiling Tile Size | 2' x 2' (0.61 x 0.61m) |
| Depth | 23.67 in (60.1 cm) |
| Height | 8 in (20.3 cm) |
| Max Equipment Size | 7.61" x 19.25" x 20" (193 x 489 x 508 mm) |
| Overall Dimensions | 8" x 24.97" x 23.67" (203 x 634 x 601 mm) |
| Shipping Weight | 4.1 lbs (1.9 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 24.97 in (63.4 cm) |
Characteristics & Features
| Accessory Type | Suspended Ceiling |
| Accommodate Column Drop | No |
| Application | Ceiling |
| Color | White |
| Includes Power Outlet | No |
| Receptacle Type | None |
| Special Features | Surge and Filtering |
