Overview

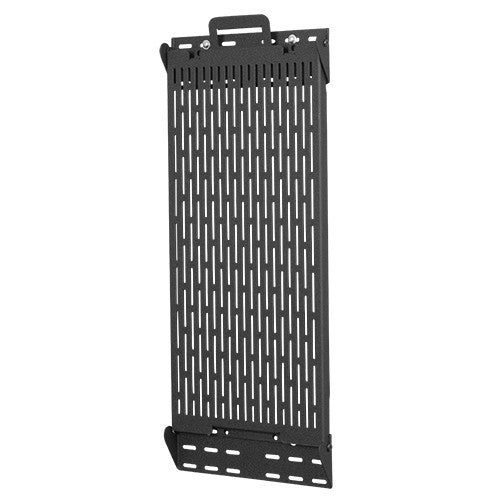

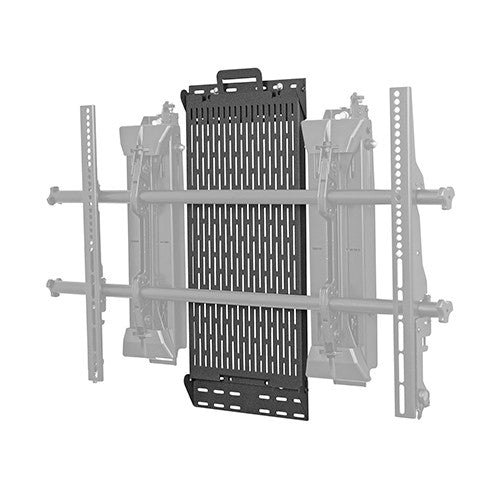

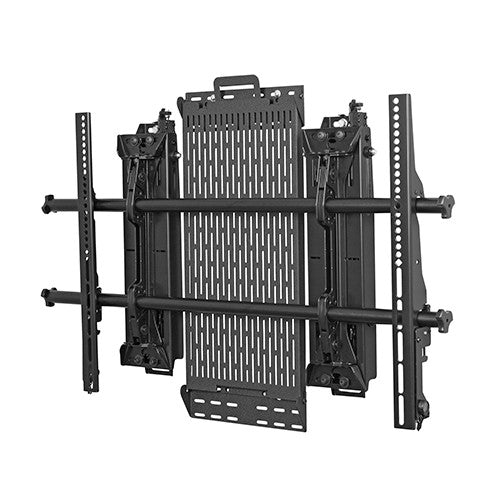

The CSPR provides over 160 square inches (1032 square centimeters) of secure attachment area for AV equipment independent of display mounts. A handle provides easier access while securing equipment and installing. Technicians can remove the Component Storage Panel to service equipment without removing the display. Ideal for standardizing the deployment of AV component configuration across large projects.
Specification
Dimensions & Measurements
| Depth | 1.15 in (2.9 cm) |
| Height | 24.22 in (61.5 cm) |
| Minimum Depth | 0.6" (15 mm) without wall brackets; 1.15" (29 mm) with wall brackets |
| Overall Dimensions | 24.22" x 10.4" x 1.15" (615 x 264 x 29 mm) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Weight Capacity | 20 lbs (9.1 kg) |
| Width | 10.4 in (26.4 cm) |
Characteristics & Features
| Accessory Type | Cages and Cases |
| Application | Wall |
| Color | Black |
| Mounting Method | On-Wall |
| Notes | Active Mounting Area: 18.5 x 9.0" (166.5 sq. in.) |
| Solution Type | Storage Panel |
