Overview

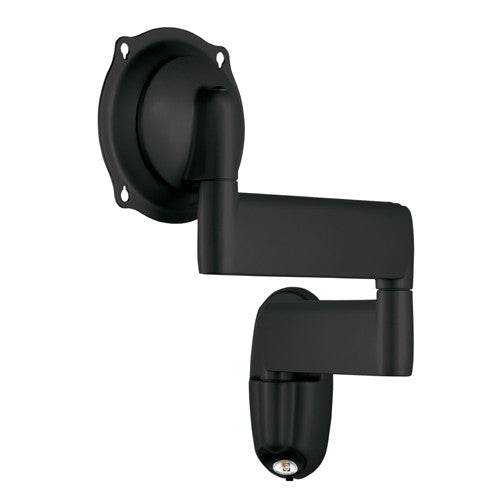

A low-profile mount designed to be hidden in the wall.
Must order MAC501 In-Wall Accessory!
- Ships fully assembled
- Ready for fast installation into a MAC501 In-Wall Accessory
- Low profile, designed to ensure that the mount remains concealed behind the screen
- Centris Technology provides smooth, fintertip tilt in all directions
- Used with the MAC501B installed in between 16" on center studs.
- No header or footer necessary
- Smooth extension up to 21" (538 mm) to achieve ideal viewing angle
- Back of TV sits close to the wall (0.1" for VESA 100 x 100mm screens and 0.65" for screens having up to 400 x 400mm patterns)
- VESA® Compatibility: JWDIW210: up to 200 x 200mm, JWDIWU: up to 400 x 400mm
Note: Must order MAC501 to complete installation
Specification
Dimensions & Measurements
| Minimum Depth | 0.1 in (0.3 cm) |
| Shipping Weight | 13.15 lbs (6 kg) |
| Typical Screen Size | 26" - 45" (660mm - 1143mm) |
| Weight Capacity | 75 |
Characteristics & Features
| Adjustability |
|
| Application | In-Wall |
| Color | Black |
| Notes | Require MAC501B. Depth and Extension do no include interface bracket (adds 0.5 - 1.5") |
| Orientation |
|
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Tilt | +15° and - 15° |
| VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm |
