Overview

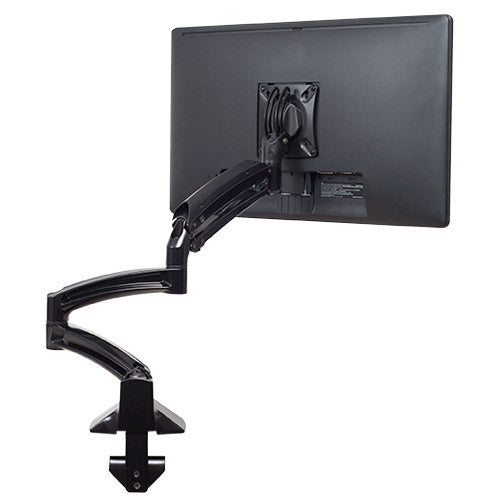

The enhanced Kontour™K1D Dynamic Height-Adjustable Desk Clamp Mounts are the perfect monitor mount solutions for the office, healthcare facilities or home. Best-in-class weight capacity range makes specification simple!
Key enhancements have been made to Chief's patented Centris™Extreme Tilt technology for the ultimate in effortless fingertip monitor positioning. Kontour™ monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work space.
- Best-in-class weight capacity range of 5 to 25 lbs. makes specification simple
- No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One!
- Sleek, solidly-constructed forged aluminum arms in subtlesilver and black finishes
- Enhanced patented Centris™Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
- 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
- Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
- Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
- Tool-free cable management covers for a clean, professional look
- With high levels of recycled content & a highly-recyclable design, Chief Kontour™monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits!
- See our LEED Flyer for more details
- Most Kontour™ K1 products are TAA-compliant - see respective product pages for details
Specification
Dimensions & Measurements
| Dynamic Height Adjustment | 7.11" - 20.11" (181mm - 511 mm) center of monitor height range |
| Minimum Depth | 2.45 in (6.2 cm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Typical Screen Size | 10" - 38" (254mm - 965mm) |
| Weight Capacity | 5 - 10 lbs (2.3 - 4.5 kg) |
Characteristics & Features
| Adjustability |
|
| Color | Black |
| Dell Quick-Connect | No |
| Desktop Thickness Range | 0.5" - 2.5" (13mm - 63 mm) |
| Dual Array | No |
| Mounting Method | Desk Mount |
| Notes | Weight capacity is per monitor |
| Number of Arm Links | 3 |
| Number of Displays | 1 |
| Orientation |
|
| Reduced Height | No |
| Special Features | Height Assist |
| Tilt |
|
