Overview

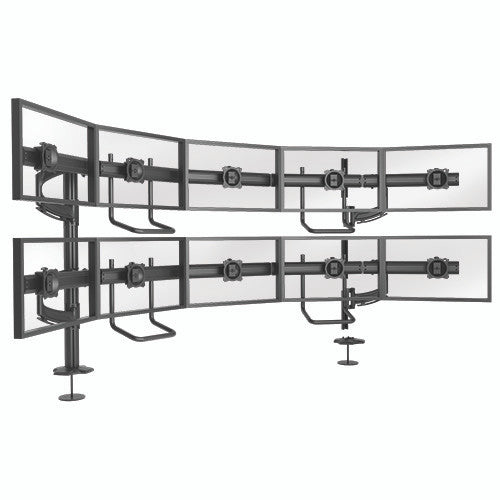

Ultimate flexibility meets form and function with the Kontour™K4 series of elegantly designed, Focal Depth Adjustable monitor array grommet desk mounts from Chief.
Provides an aesthetic & easily adjustable solution for monitor array workstations where multiple users will want to re-position the bank of screens to their preferred viewing distance; such as control rooms, trading desks, call centers, security desks, IT, healthcare and more.
- Articulating Focal Depth Adjustment for optimal ergonomics
- Integrated handle for quick ergonomic adjustment to fit the user
- Great for multi-user settings where fast & easy adjustment is critical!
- Supports monitors up to 24" in both landscape & portrait
- Swivel and Pan adjustment capability
- Centris™ Fingertip Tilt for every monitor
- Grommet or 1/2" Thru-Hole mounting
- Simple installation
- Integrated cable management
- Streamlined, modern aesthetic
- Huge variety of configurations available to accommodate workstations small and big alike
- Kontour™ K4 products are all TAA-compliant
Specification
Dimensions & Measurements
| Center of Display To Floor Table Range | Upper Row: Up to 43.6" (1107 mm) |
| Extension | 16.2 |
| Maximum Extension | 12.0 minimum |
| Minimum Depth | 23.3 in (59.2 cm) |
| Shipping Weight | 128 lbs (58.1 kg) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 15 |
Characteristics & Features
| Adjustability |
|
| Application | Desk-Tabletop |
| Array Configuration | 5x2 |
| Color | Black |
| Desktop Thickness Range | 1" - 4.94" (25mm - 125.5 mm) |
| Mounting Method | Grommet and 1/2" Thru-Hole |
| Multi-Display Array Configuration | 5 x 2 |
| Notes | Weight capacity is per monitor |
| Number of Displays | 10 |
| Orientation |
|
| Special Features | Multi-Display |
| Tilt | +/- 12° |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
