Overview

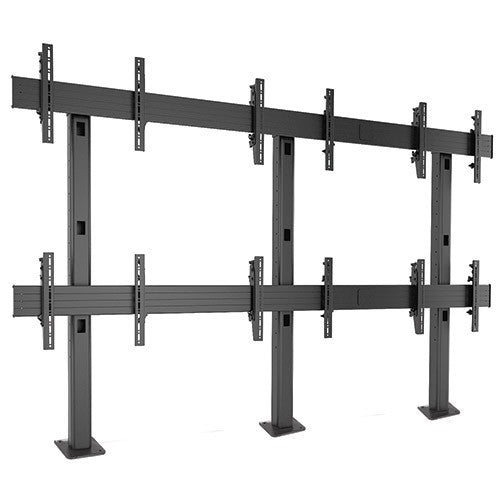

Chief's Fusion® Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
Screen array configuration: 3 screens wide x 2 screens high.
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion® Universal Back Covers.
- 3 x 2 screen arrangement for 42 - 46" screens. Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility
- Easily align displays with independent height, plumb and lateral shift adjustment
- Bolt-down solution allows for a permanent solution
- Integrated cable management for a clean installation
- TAA Compliant
Specification
Dimensions & Measurements
| Center of Display To Floor Table Range | 16.38" (416 mm) (minimum bottom row) - 64.38" (1635 mm) (maximum top row) |
| Depth | 9.43 |
| Height | 72.9 |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Overall Dimensions | 72.9" x 108.9" x 9.43" (1852 x 2766 x 239 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 232 lbs (105.2 kg) |
| Weight Capacity | 125 |
| Width | 108.9 |
Characteristics & Features
| Adjustability | Micro-Adjustable |
| Application | Bolt-Down |
| Array Configuration | 3x2 |
| Color | Black |
| Number of Displays | 6 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Multi-Display |
