Overview

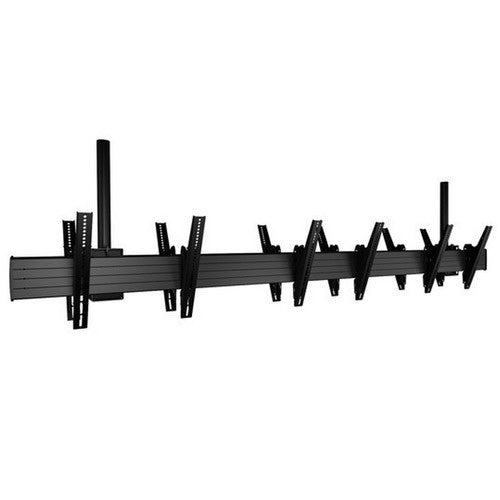

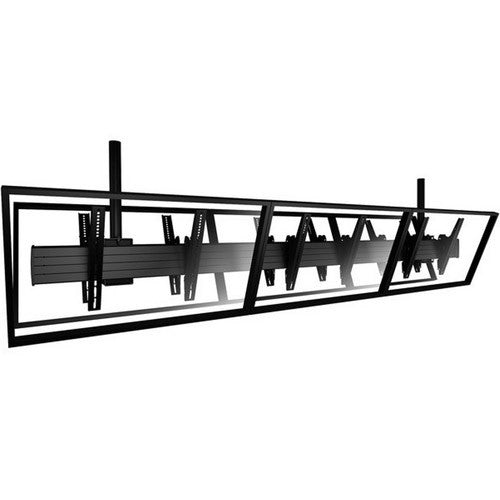

Chief's Fusion® ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Comes in 2 x 1 & 3 x 1 arrangements with options for landscape and portrait orientation. Combine to easily create longer menu boards. Great for digital signage installations.
- Screen array configuration: screens wide x screens high.
- Confirm screen compatibility with MountFinder™
- Single horizontal extrusion keeps screens aligned
- Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
- Tool-free screen engagement
- Security: Add a pad lock to secure screen to mount
- Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65"
- Single drop for fast installation
- Micro adjustable roll for perfect leveling +/- 3 degrees
- 360 degree swivel for optimal viewing angles
- Single horizontal extrusion keeps screens aligned
- Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
- Tool-free screen engagement
- Secure displays with optional pad-lock security
- Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65
- CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
- Recommended ceiling plates for multi-display ceiling mounts (PDF)
Specification
Dimensions & Measurements
| Weight Capacity | 125 lbs (56.7 kg) |
Characteristics & Features
| Adjustability | Tilt, Height Adjustable |
| Application | Ceiling |
| Array Configuration | 3X1 |
| Color | Black |
| Notes | Weight capacity is per display |
| Number of Displays | 6 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Multi-Display |
| Tilt | + 5° / - 20° |
| VESA Mounting Pattern | 102 - 400 mm |
