Overview

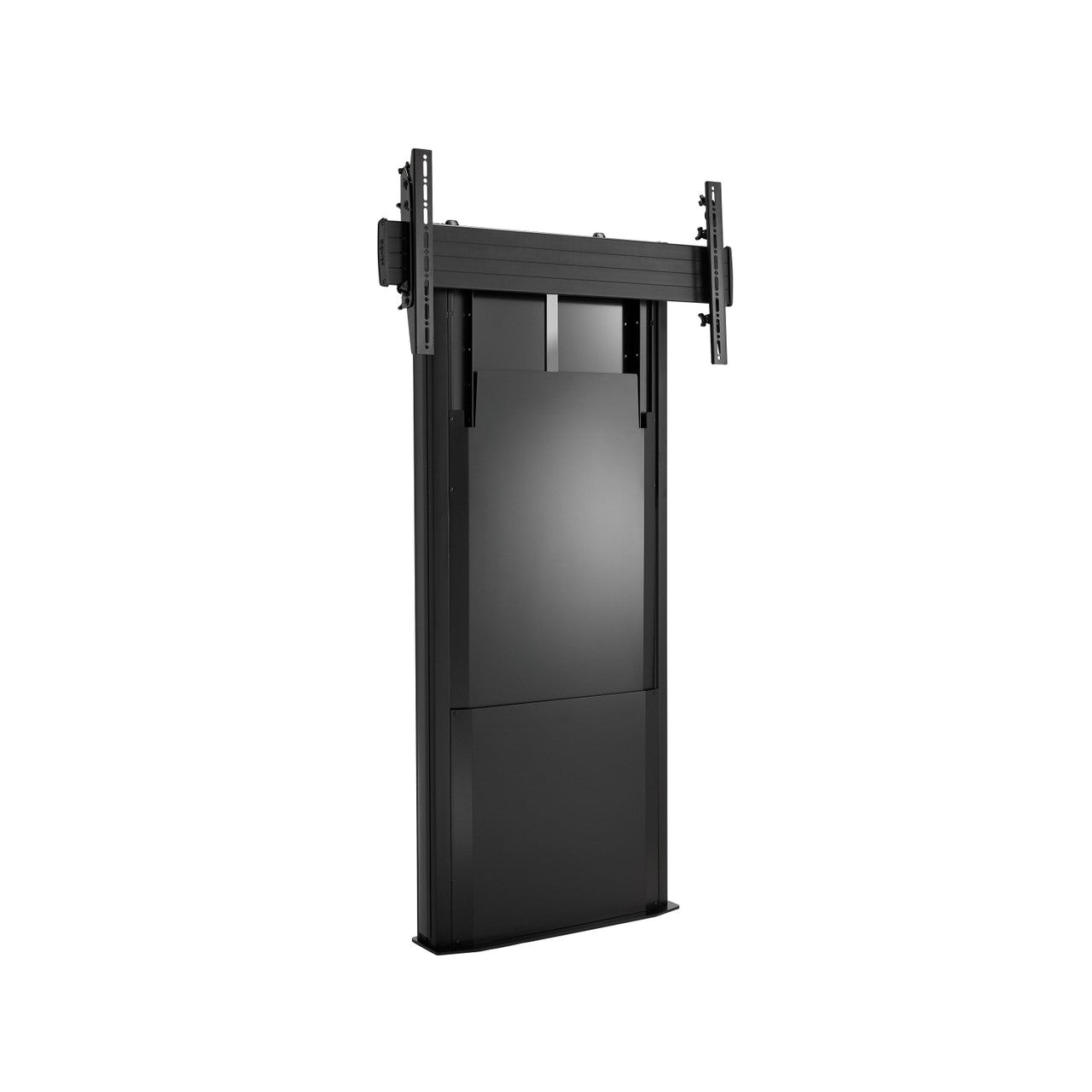

Ideal for interactive applications, Fusion® mounts with dynamic height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable box provides ultra-smooth and fast vertical travel with almost no effort.
Easy to install. Easy to adjust.
This solution is especially helpful for applications where the wall structure can't carry the weight.
Now Available
- Height adjustable box allows up to 15.75” (400 mm) of vertical adjustment instantly by manually moving the display up and down by hand
- Starting height can be set at 3” (76 mm) intervals over a span of 15” (381 mm)
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Integrated security flag
Specification
Dimensions & Measurements
| Depth | 6.3 in (16 cm) |
| Dynamic Height Adjustment | 15.75” (400 mm) |
| Height | 64.4 in (163.6 cm) |
| Overall Dimensions | 64.4 x 36.8 x 6.3" (1636 x 935 x 160 mm) |
| Shipping Weight | 36.7 lbs (16.7 kg) |
| Weight Capacity | 122 - 180 lbs (55.4 - 82 kg) |
| Width | 36.8 in (93.5 cm) |
Characteristics & Features
| Adjustability |
|
| Application | Floor-Cart |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Height Assist |
| VESA Mounting Pattern | 200 x 200 - 800 x 400 mm |
