Overview
Chief's Fusion® tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion® features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Benefits included increased stability, fast installation, easy cable management and security.

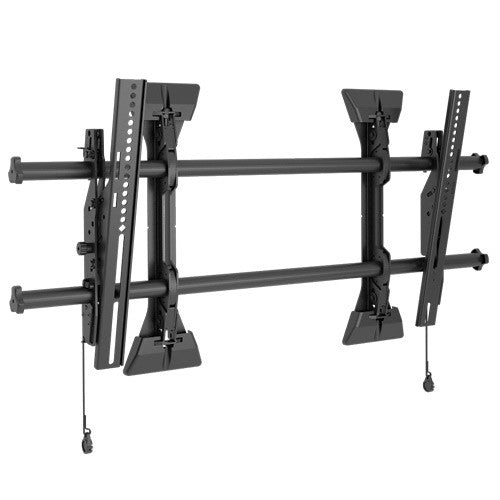

The installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
 | Diagram |
|
|
Selection Guide Ideal for digital signage, hospitality, transportation and corporate settings, find The Fusion® tilt wall mount that's perfect for you. See the guide |
Specification
Dimensions & Measurements
| Depth | 2 in (5.1 cm) |
| Height | 17 in (43.2 cm) |
| Manual Height Adjustment | 1 in (25.4 mm) |
| Max Screen Size | 6 in (15.2 cm) |
| Maximum Screen Thickness | 6" (152mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Shipping Weight | 22.01 lbs (10 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
| Wall Stud Compatibility In | 16" - 32" (406mm - 813mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 34.75 in (88.3 cm) |
Characteristics & Features
| Adjustability |
|
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| Tilt | +2° / -12° |
| VESA Mounting Pattern | 100 x 100 - 878 x 500 mm |
