Overview

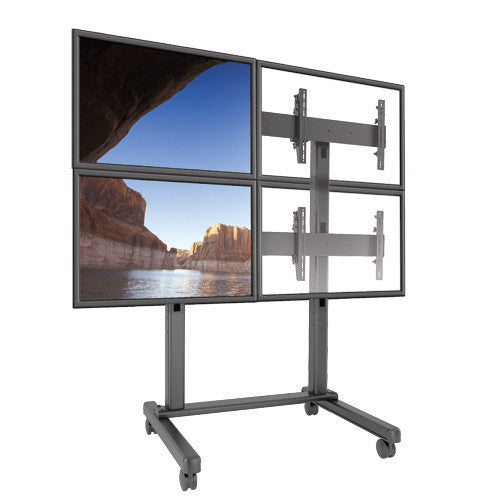

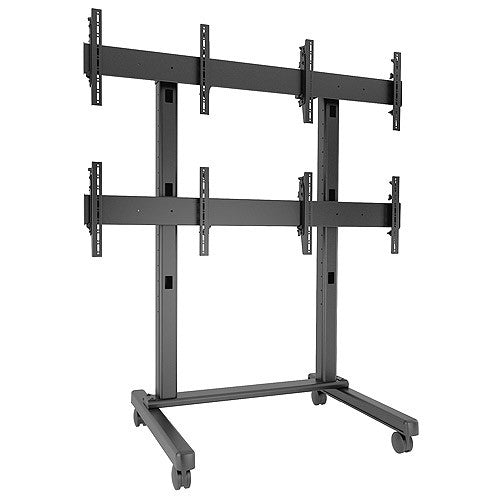

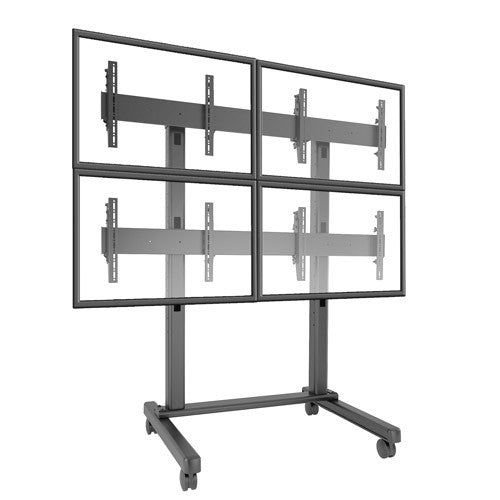

Chief's Fusion® Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
Screen array configuration: 2 screens wide x 2 screens high.
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion® Universal Back Covers.
- 2 x 2 screen arrangement for 42 - 46" screens. Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility
- Easily align displays with independent height, plumb and lateral shift adjustment
- Bolt-down solution allows for a permanent solution
- Integrated cable management for a clean installation
- TAA Compliant
Specification
Dimensions & Measurements
| Center of Display To Floor Table Range | 24" (609.6 mm) (minimum bottom row) - 72" (1829 mm) (maximum top row) |
| Depth | 40.4 in (102.6 cm) |
| Height | 80.5 in (204.5 cm) |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Overall Dimensions | 80.5" x 72.5" x 40.4" (2045 x 1842 x 1026 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 219 lbs (99.3 kg) |
| Typical Screen Size | 42"-50" (1067mm - 1270mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 72.5 in (184.2 cm) |
Characteristics & Features
| Adjustability |
|
| Application | Cart |
| Array Configuration | 2x2 |
| Color | Black |
| Number of Displays | 4 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Multi-Display |
