Overview

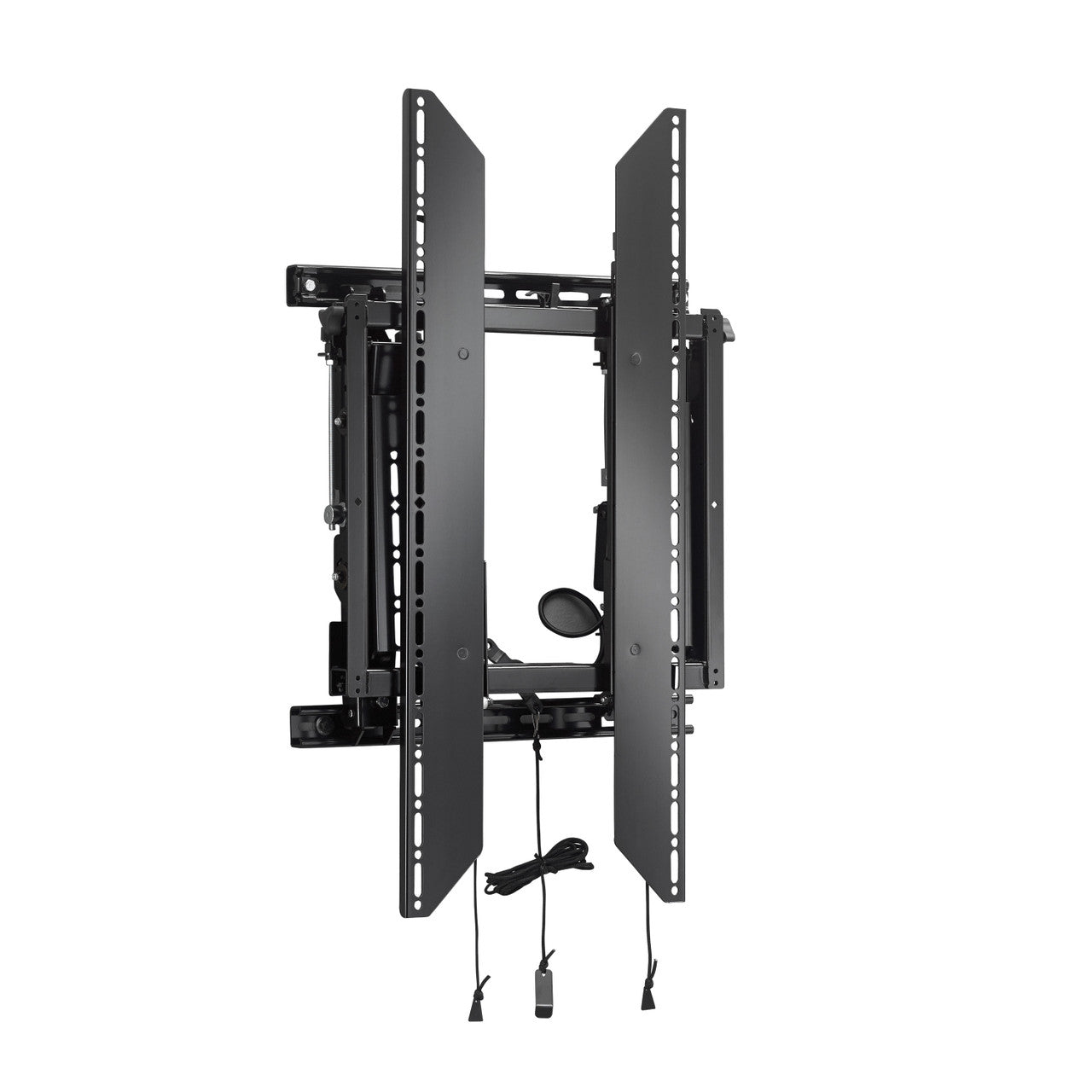

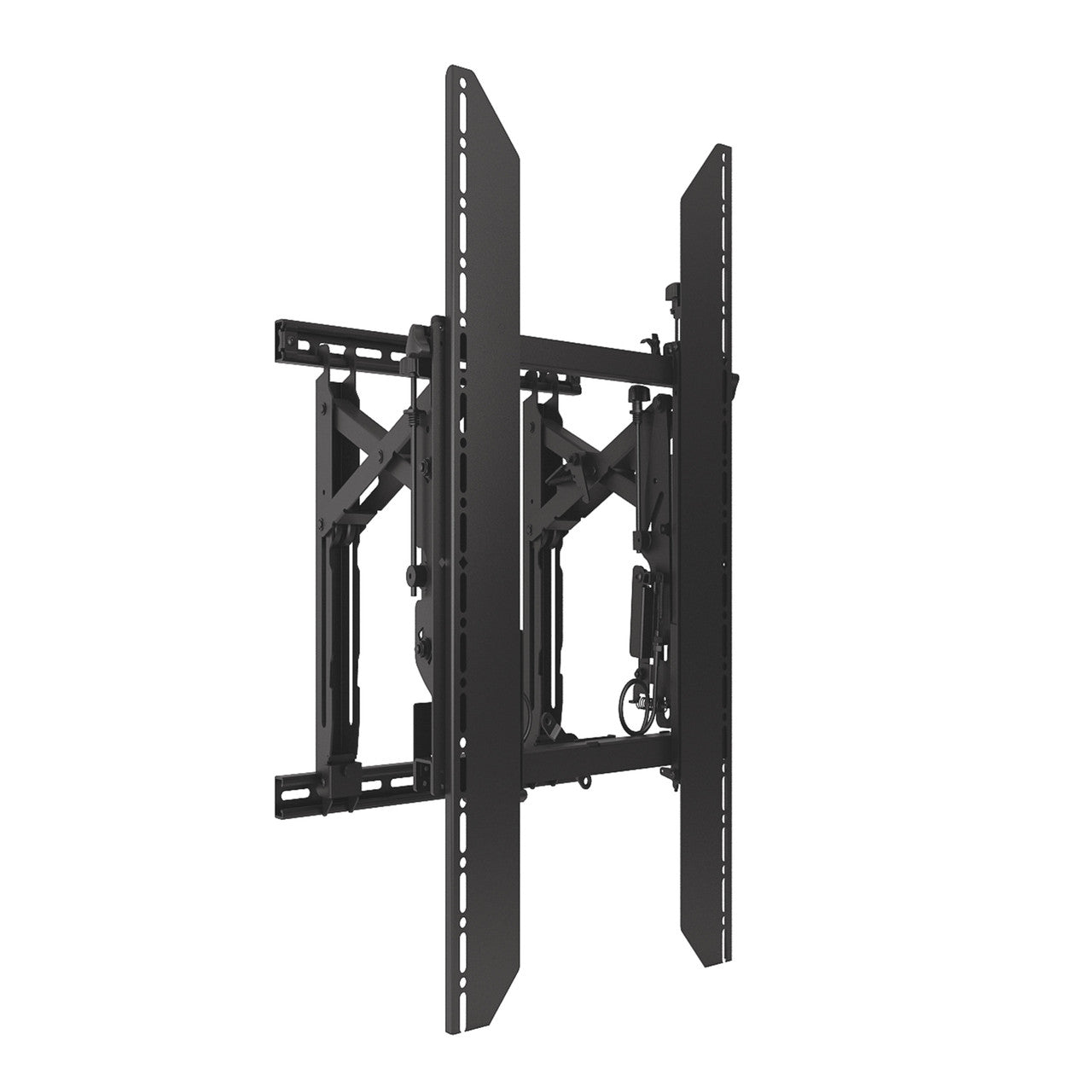

Chief's ConnexSys™ Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys™ Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.
Read the complete story of ConnexSys™ here.
Specification
Dimensions & Measurements
| Depth | 4.1 in (10.4 cm) |
| Height | 32.5 in (82.6 cm) |
| Minimum Depth | 4 in (101.6 mm) |
| Shipping Weight | 38 lbs (17.2 kg) |
| Typical Screen Size | 40" - 80" (1016mm - 2032mm) |
| Weight Capacity | 150 lbs (68 kg) |
| Width | 19.5 in (49.5 cm) |
Characteristics & Features
| Adjustability | Extension, Micro-Adjustable, Height Adjustable, Lateral Shift |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| Tilt |
|
| VESA Mounting Pattern | 200 x 100 - 800 x 400 mm |
| With Rails | No |
