Overview

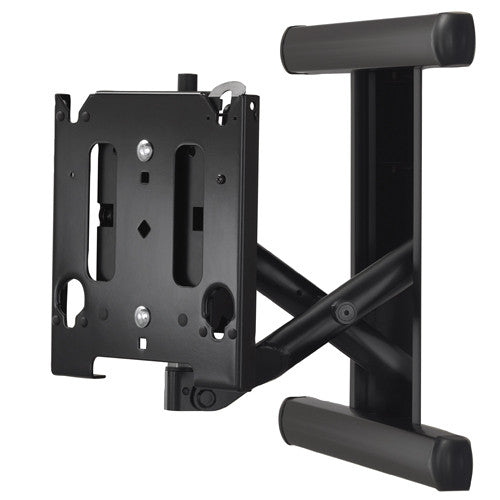

The MIWRF brings in-wall swing arm technology to the next level, creating a low profile installation for any flat panel display.
- Get perfect TV centering without cutting studs
- Ultra low-profile mounting solution
- Provides limitless centering of the flat panel on the wall between 16" center studs without cutting studs - no header/footer necessary
- Low-profile design hides the mount behind the display
- Centris Technology provides smooth, fingertip tilt
- Provides post-installation height adjustment
- ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
- Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
- Integrated cable management
- Ships as complete in-wall swing arm - zero assembly required
Specification
Dimensions & Measurements
| Lateral Shift | 5 in (127 mm) |
| Minimum Depth | 1.7 in (4.3 cm) |
| Shipping Weight | 49.5 lbs (22.5 kg) |
| Weight Capacity | 125 |
Characteristics & Features
| Adjustability |
|
| Application | In-Wall |
| Color | Black |
| Interface Included | Yes |
| Notes | Depth and Extension do not include interface bracket (adds 0.5 - 1.5") |
| Orientation |
|
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Tilt | +2° / -15° |
| VESA Mounting Pattern | 100 x 100mm up to 709 X 431mm |
