Overview

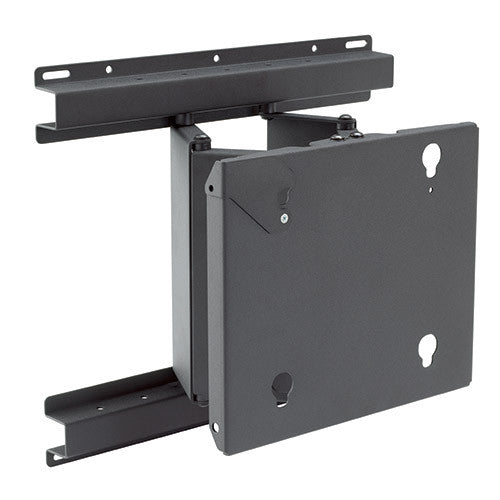

The MPW swing arm wall display mount provides ultra smooth extension for flat panel displays and monitors, and remains low profile in the home position.
- Smooth extension up to 8.75" (222 mm) to achieve ideal viewing angle
- Ultra low-profile in the home position, only 1.5" (38 mm) deep
- Provides up to 45º of swivel in either direction (depending on screen size)
- Lockable in home position to prevent articulation (pin included)
- Installs on 16" center studs
- Integrated lateral shift allows repositioning of the mount right or left after installation for ultimate positioning flexibility
- Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
Specification
Dimensions & Measurements
| Depth | 3.4 |
| Height | 18 |
| Lateral Shift | 4.5 in (11.4 cm) |
| Overall Dimensions | 18.0" x 23.6" x 3.4" (457 x 600 x 87mm) |
| Shipping Weight | 34 lbs (15.4 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Weight Capacity | 100 |
| Width | 23.6 |
Characteristics & Features
| Adjustability | Extension |
| Application | Wall |
| Color | Black |
| Notes | Depth and Extension do not include interface bracket (adds 0.5 - 1.5") |
| Orientation | Landscape and Portrait |
| Solution Type | Universal |
| VESA Mounting Pattern | 100 x 100mm - 709 x 431mm |
