Overview
Chief's Fusion® tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion® features include Centerless shift, Centris tilt and ClickConnect Latching.
Benefits included increased stability, fast installation, easy cable management and security.

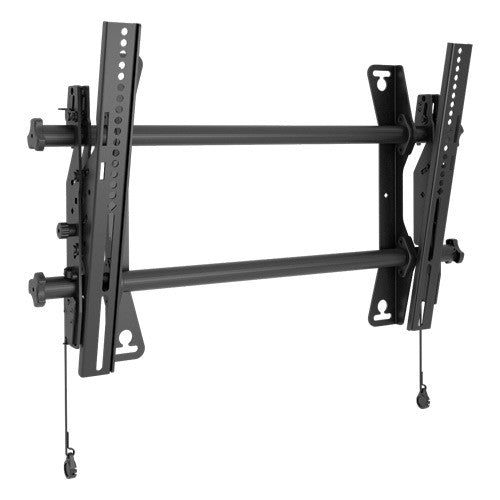

The installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
 | Diagram |
|
|
Selection Guide Ideal for digital signage, hospitality, transportation and corporate settings, find The Fusion® tilt wall mount that's perfect for you. See the guide |
Specification
Dimensions & Measurements
| Depth | 2 in (5.1 cm) |
| Height | 16.5 in (41.9 cm) |
| Manual Height Adjustment | 1 in (25.4 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Overall Dimensions | 16.5" x 25.75" x 2" (419 x 654 x 51mm) |
| Shipping Weight | 15.86 lbs (7.2 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 25.75 in (65.4 cm) |
Characteristics & Features
| Adjustability |
|
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| Tilt | +2° / -12° |
| VESA Mounting Pattern | 100 x 100 - 650 x 400mm |
