Overview

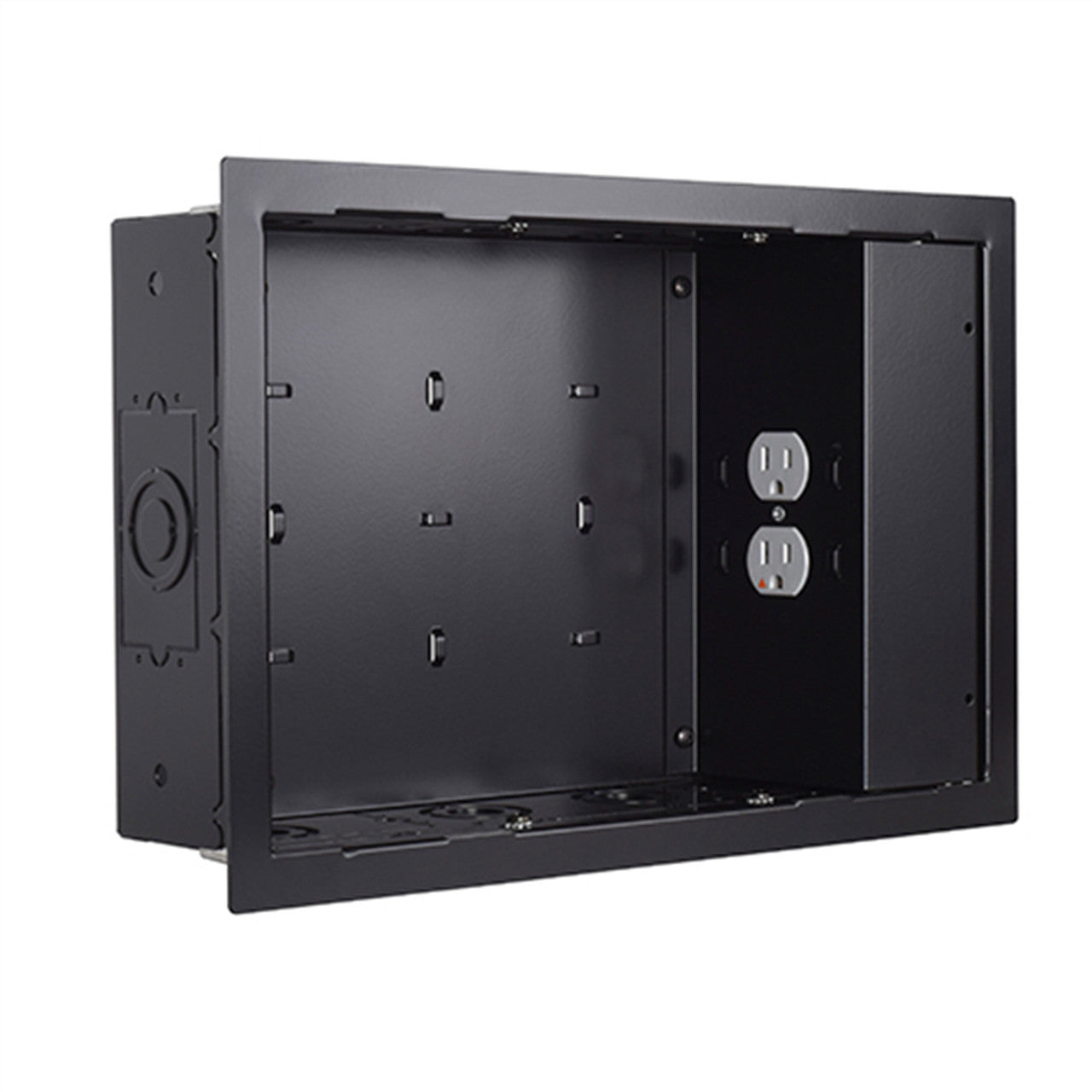

The PAC525FBP2 simplifies flat panel installation by providing an organized, recessed space for routing excess cables. The addition of the flange adds an aesthetic trimmed appearance and drywall mounting capability.
Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.
Compatible with the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall™, and Fusion® wall mounts.
 |
Diagram See this storage box as part of the ultimate motion-based, auto-tracking conference room. See the diagram |
 |
Video Chief has added new capabilities to its line of storage solutions. Watch the 3-minute video on this storage box. Watch the spotlight video |
Specification
Dimensions & Measurements
| Depth | 3.88 |
| Height | 10.26 |
| Overall Dimensions | 10.26" x 15.4" x 3.88" (261 x 391 x 98 mm) |
| Weight Capacity | 10 |
| Width | 15.4 |
Characteristics & Features
| Accessory Type |
|
| Application | In-Wall |
| Color | Black |
| Cover Color | None |
| Flange Color | Black |
| Notes | Output: 15A, 1875 W continuous |
| Power Requirements |
|
| Receptacle Type | Two Surge and Filter |
| Special Features |
|
